NDK汽车晶振,NZ2016SH-24.000MHZ-NSC5022C晶振,2016 24M OSC 3.3V 50ppm 汽车导航系统晶振,汽车音响设备晶振,汽车摄像头专用晶振,无线模块晶振,NDK通信设备晶振,NZ2016SH晶振,2016mm晶振
产品主要应用于汽车导航系统,汽车音响设备和摄像头,也同样适用于智能手机,平板电脑,笔记本电脑,PC卡等。在音频设备和无线模块,SDH/SONET、WiMAX、LTE等通信设备和基站同样适用。

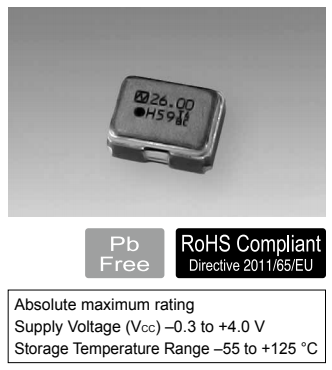

NZ2016SH-24.000MHZ-NSC5022C晶振参数表
Item | Symbol | Value | Unit | ||||
Nominal frequency range | fnom | 1.5≦F≦ 80 | MHz | ||||
Package size (L×W×H) | - | 2.0 × 1.6 × 0.7 | mm | ||||
Supply voltage | Vcc | +1.8 to +3.3 | V | ||||
Current consumption | ICC | Max. 9.0 | mA | ||||
Stand-by current | IST | Max. 20 | μA | ||||
Output specification | - | CMOS | - | ||||
Load | CL | Max. 15 | pF | ||||
Storage temperature range | Tstr | -55 to +125 | ℃ | ||||
Operating temperature range | Topr | -40 to +125 | -40 to +105 | -40 to +85 | -10 to +70 | -10 to +60 | ℃ |
Overall frequency tolerance | Df/fnom | Max. ±100 | Max. ±50 | Max. ±50 | Max. ±30 | Max. ±20 | ppm |
Output voltage | VOL | Max. 0.1 VCC | V | ||||
Output voltage | VOH | Min. 0.9 VCC | V | ||||
Rise (tr), fall (tf) time +1.8V | tr/tf | Max.6 | ns | ||||
Rise (tr), fall (tf) time +2.5 to +3.3V | tr/tf | Max.5 | ns | ||||
Symmetry | SYM | 45 to 55 | % | ||||
Start-up time | tsu | Max. 4 | ms |
NZ2016SH-24.000MHZ-NSC5022C晶振特征
● 支持 –40 至 +125°C 的宽温度范围。
● 超紧凑轻便。尺寸 : 2.0 x 1.6 x 0.7 毫米, 重量 : 0.01 克.
● 该晶体时钟振荡器可以不容易支持低频(从1.5MHz开始)
● 使用相同尺寸的晶体单元实现。
● 编带单元可实现自动安装 IR 回流焊(无铅)是可能的。
● 无铅。
● 符合AEC-Q200标准。

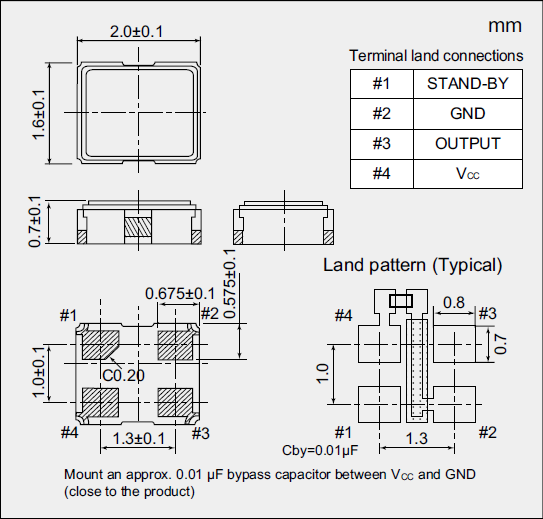

NZ2016SH-24.000MHZ-NSC5022C晶振尺寸图 电平图
Overall frequency tolerance | Operating temperature range | Supply voltage(V) | |||
(ppm) | (°C) | Typ. +1.8 | Typ. +2.5 | Typ. +3.0 | Typ. +3.3 |
±100 | -40 to +125 | NSC5019A | NSC5019B | NSC5019C | NSC5019D |
±50 | -40 to +105 | NSC5021A | NSC5021B | NSC5021C | NSC5021D |
±50 | -40 to +85 | NSC5022A | NSC5022B | NSC5022C | NSC5022D |
±30 | -10 to +70 | NSC5024A | NSC5024B | NSC5024C | NSC5024D |
±20 | -10 to +60 | NSC5025A | NSC5025B | NSC5025C | NSC5025D |
订购产品时请注明型号名称、频率和规格编号。
有关规格的更多问题,请随时与我们联系。
微信:13824306246 QQ:794113422 邮箱:taiheth@163.com 座机:0755-27872782
更多相关NDK晶振型号微信:13824306246 QQ:794113422 邮箱:taiheth@163.com 座机:0755-27872782
