欧美晶振
- 产品型号：13288082
- 晶振频率：22MHz
- 晶振尺寸：3.2*2.5*0.9mm
- 产品应用： 欧美进口晶振,GEYER晶振,KX-7T无源晶振,贴片晶振12.60214晶振,石英晶振,四脚贴片晶振,晶体谐振器,SMD晶体,3225mm晶振,频率22MHz,负载8pF,频率容差20ppm,工作温度-40~85°C,高精度晶振,无铅环保晶振,低老化晶振,便携式...
-

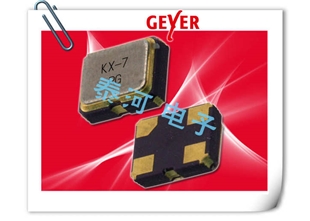

12.60214|22MHz|8pF|GEYER石英晶振
12.60214|22MHz|8pF|GEYER石英晶振,欧美进口晶振,GEYER晶振,KX-7T无源晶振,贴片晶振12.60214晶振,石英晶振,四脚贴片晶振,晶体谐振器,SMD晶体,3225mm晶振,频率22MHz,负载8pF,频率容差20ppm,工作温度-40~85°C,高精度晶振,无铅环保晶振,低老化晶振,便携式电脑晶振,数字设备晶振,测试与测量设备晶振,专业视频设备晶振.
12.60214|22MHz|8pF|GEYER石英晶振规格表
| part no. | 12.60214 |
| model | KX-7T |
| frequency range | 22MHz |
|
mode |
fundamental |
| operating temperature | -40~+85℃ |
| frequency tolerance at +25°C | 土20 ppm |
| temperature tolerance |
土20 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 8 pF |
| shunt capacitance C0 typ. | 3.0 pF |
| series resistance R1 (ESR) max. | 60 Ohm |
| aging at +25°℃ (first year) max. | ±2 ppm |
| drive level | 200 μW max. |
| contents of reel | 1000 pcs. |
.jpg)
12.60214|22MHz|8pF|GEYER石英晶振尺寸图
.jpg)
