欧美晶振
- 产品型号：32835926
- 晶振频率：19.2MHz
- 晶振尺寸：3.2*2.5*0.9mm
- 产品应用： GEYER晶振,KX-7T进口贴片晶振,石英谐振器,12.60268晶振,无源晶振,SMD晶振,3.2×2.5mm晶振,四脚贴片晶振,频率19.2MHz,负载12pF,频率容差30ppm,工作温度-40~85°C,抗冲击晶振,高可靠性晶振,高品质晶振,测试与测量设备晶...
-

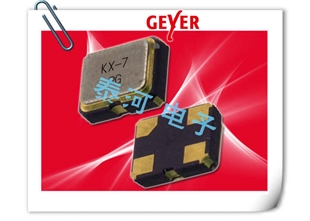

12.60268|19.2MHz|12pF|GEYER无源晶振
12.60268|19.2MHz|12pF|GEYER无源晶振,GEYER晶振,KX-7T进口贴片晶振,石英谐振器,12.60268晶振,无源晶振,SMD晶振,3.2×2.5mm晶振,四脚贴片晶振,频率19.2MHz,负载12pF,频率容差30ppm,工作温度-40~85°C,抗冲击晶振,高可靠性晶振,高品质晶振,测试与测量设备晶振,调制解调器晶振,数码产品晶振,无线路由器晶振.
12.60268|19.2MHz|12pF|GEYER无源晶振规格表
| part no. | 12.60268 |
| model | KX-7T |
| frequency range | 19.2MHz |
|
mode |
fundamental |
| operating temperature | -40~+85℃ |
| frequency tolerance at +25°C | 土30 ppm |
| temperature tolerance |
土30 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 12 pF |
| shunt capacitance C0 typ. | 3.0 pF |
| series resistance R1 (ESR) max. | 60 Ohm |
| aging at +25°℃ (first year) max. | ±2 ppm |
| drive level | 200 μW max. |
| contents of reel | 1000 pcs. |
.jpg)
12.60268|19.2MHz|12pF|GEYER无源晶振尺寸图
.jpg)
