欧美晶振
- 产品型号：10392958
- 晶振频率：38.4MHz
- 晶振尺寸：1.2*1.0*0.3mm
- 产品应用： 欧美进口晶振,GEYER晶振,KX-3T石英晶体,贴片晶振12.61004晶振,无源晶振,石英晶体谐振器,1210mm晶振,SMD晶体,四脚封装晶振,频率38.4MHz,负载6pF,频率容差10ppm,工作温度-40~85°C,高可靠性晶振,无铅环保晶振,抗冲击晶振...
-

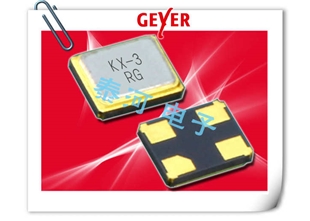

12.61004|38.4MHz|6pF|GEYER石英晶体
12.61004|38.4MHz|6pF|GEYER石英晶体,欧美进口晶振,GEYER晶振,KX-3T石英晶体,贴片晶振,12.61004晶振,无源晶振,石英晶体谐振器,1210mm晶振,SMD晶体,四脚封装晶振,频率38.4MHz,负载6pF,频率容差10ppm,工作温度-40~85°C,高可靠性晶振,无铅环保晶振,抗冲击晶振,微处理器晶振,COTS网络设备晶振,移动应用晶振,无线局域网晶振.
12.61004|38.4MHz|6pF|GEYER石英晶体规格表
| part no. | 12.61004 |
| model | KX-3T |
| frequency range | 38.4MHz |
|
mode |
fundamental |
| operating temperature | -40~+85℃ |
| frequency tolerance at +25°C | 土10 ppm |
| temperature tolerance |
土15 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 6 pF |
| shunt capacitance C0 max. | 3.0 pF |
| series resistance R1 (ESR) max. | 150 Ohm |
| aging at +25°℃ (first year) max. | ±2 ppm |
| drive level | 50 μW max. |
| contents of reel | 1000 /3000pcs. |
.jpg)
12.61004|38.4MHz|6pF|GEYER石英晶体尺寸图
