- 产品型号：65001914
- 晶振频率：74.25MHz
- 晶振尺寸：5.0*3.2*1.2mm
- 产品应用： 美国思佳讯晶振,Si511进口晶振,有源晶振,石英晶体振荡器,511BBA74M2500BAG晶振,5032mm晶振,LVDS差分晶振,频率74.25MHz,电压3.3V,工作温度-40~85°C,高品质晶振,低抖动晶振,低相噪晶振,6G路由器晶振,千兆以太网晶振,光...
-

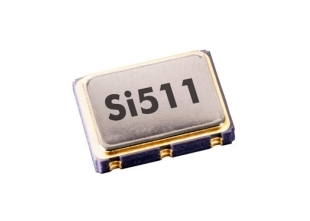

美国思佳讯晶振,511BBA74M2500BAG,6G路由器晶振
美国思佳讯晶振,511BBA74M2500BAG,6G路由器晶振,美国思佳讯晶振,Si511进口晶振,有源晶振,石英晶体振荡器,511BBA74M2500BAG晶振,5032mm晶振,LVDS差分晶振,频率74.25MHz,电压3.3V,工作温度-40~85°C,高品质晶振,低抖动晶振,低相噪晶振,6G路由器晶振,千兆以太网晶振,光纤通道晶振,便携式电子设备晶振.
美国思佳讯晶振,511BBA74M2500BAG,6G路由器晶振规格表
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 74.25MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 3.3V | |
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -40℃~ +85℃ | |
| 频率稳定性 | f_tol | ±25 ppm | +25℃,超出标准的规格说明请联系我们 |
| 电源电流 | IDD | 23mA Max |
LVDS
|
| 对称性（占空比） | SYM | 48%~52% | 在输出交叉点 |
| 输出电压 | VOC | 1.33V Max |
LVDS
|
| VO | 0.45Vpp Max | ||
| 输入电压 | VIH | 80%VDD Min |
|
| VIL | 20%VDD Max | ||
| 上升下降时间 | tr/tf | 800ps Max |
LVDS
|
| 起始时间 | t str | 10ms Max | |
| 相位抖动 | tpj | 0.55ps Max |
Differential Formats
|
.jpg)
美国思佳讯晶振,511BBA74M2500BAG,6G路由器晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 |
| 511BBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511FBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511FBA000330BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511BBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511BBA125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511BBA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511BBA200M000AAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511ABA156M250AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BBA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511BCA160M000BAGR | Skyworks Solutions Inc. | Si511 | 160 MHz | LVDS | 3.3V |
| 511BBA74M2500BAG | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 3.3V |
| 511FBA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511BBA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511FBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511BBA000110BAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 3.3V |
| 511FBA156M250BAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511BBA148M500BAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 3.3V |
| 511JBA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511FBA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511JBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 1.8V |
| 511FCA25M0000BAG | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 2.5V |
| 511FCA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511JBA135M000BAG | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 1.8V |
| 511JBA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 1.8V |
| 511BBA106M250AAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511BBA106M250BAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511ABA156M250BAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BBA148M500AAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 3.3V |
| 511BBA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511FBA125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511FBA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511FBA200M000AAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511FCA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511JBA125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511ACA156M250CAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BCA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511ABA25M0000AAG | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511FBA74M2500BAG | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511FBA000110AAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 2.5V |
| 511ABA155M520AAG | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVPECL | 3.3V |
| 511BBA212M500AAG | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 3.3V |
| 511ABA200M000AAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511ABA25M0000BAG | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511ABA148M500BAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVPECL | 3.3V |
| 511ABA148M500AAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVPECL | 3.3V |
| 511ABA000336AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511ABA000110BAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVPECL | 3.3V |
| 511FBA106M250AAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511BBA000149AAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511FCA80M0000CAG | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 2.5V |
| 511BBA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511DBA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511ABA000336AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BCA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511BBA200M000AAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511BBA135M000BAG | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 3.3V |
| 511BBA105M600AAG | Skyworks Solutions Inc. | Si511 | 105.6 MHz | LVDS | 3.3V |
| 511DCA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511BBA133M000AAG | Skyworks Solutions Inc. | Si511 | 133 MHz | LVDS | 3.3V |
| 511JCA233M250BAG | Skyworks Solutions Inc. | Si511 | 233.25 MHz | LVDS | 1.8V |
| 511FBA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511BBA155M520BAG | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511BBA000110AAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 3.3V |
| 511FBA212M500BAG | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 2.5V |
| 511FBA212M500AAG | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 2.5V |
| 511ABA74M2500AAG | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVPECL | 3.3V |
| 511ABA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511BBA156M250BAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511BBA156M250BAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511JCA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 1.8V |
| 511ABA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511ABA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 3.3V |
| 511FBA106M250BAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511FBA148M500BAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 2.5V |
| 511BBA106M250AAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511FCA000292CAG | Skyworks Solutions Inc. | Si511 | 161.1328 MHz | LVDS | 2.5V |
| 511JCA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 1.8V |
| 511ABA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BBA000149BAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511BBA155M520AAG | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511ABA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511FCA156M250CAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511FBA148M500AAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 2.5V |
| 511DBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511FBA135M000BAG | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 2.5V |
| 511DBB100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511ACA11M0592BAGR | Skyworks Solutions Inc. | Si511 | 11.0592 MHz | LVPECL | 3.3V |
| 511ACA24M0000BAGR | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511ACA24M5760BAGR | Skyworks Solutions Inc. | Si511 | 24.576 MHz | LVPECL | 3.3V |
| 511ECA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 2.5V |
| 511FAA153M600BAGR | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511ABA24M0000AAGR | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511EBB125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 2.5V |
| 511FBA000108BAGR | Skyworks Solutions Inc. | Si511 | 108 kHz | LVDS | 2.5V |
| 511ACA68M8128AAGR | Skyworks Solutions Inc. | Si511 | 68.8128 MHz | LVPECL | 3.3V |
| 511BCB125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511ABA000185AAGR | Skyworks Solutions Inc. | Si511 | 185 kHz | LVPECL | 3.3V |
| 511FBA153M600AAGR | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511JBA150M000AAGR | Skyworks Solutions Inc. | Si511 | 150 MHz | LVDS | 1.8V |
| 511DBB100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511BBA156M250AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511FBA156M250AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511ABA155M520AAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVPECL | 3.3V |
| 511BBA155M520AAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511FBA155M520AAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 2.5V |
| 511ACA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511ACA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | LVPECL | 3.3V |
| 511DCA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | HCSL | 3.3V |
| 511DCA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | HCSL | 3.3V |
| 511ECA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 2.5V |
| 511ECA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | LVPECL | 2.5V |
| 511HCA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | HCSL | 2.5V |
| 511HCA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | HCSL | 2.5V |
| 511JCA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 1.8V |
| 511ABA156M250BAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511FBA156M250BAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511ABA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVPECL | 3.3V |
| 511BBA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511FBA148M500BAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 2.5V |
| 511FBA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 2.5V |
| 511ABA000110BAGR | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVPECL | 3.3V |
| 511BBA000110BAGR | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 3.3V |
| 511BBA148M500BAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 3.3V |
| 511FBA000110BAGR | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 2.5V |
| 511ABA100M000AAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511ABA125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 3.3V |
| 511BBA100M000AAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511BBA125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511FBA100M000AAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511FBA125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511ABA106M250AAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVPECL | 3.3V |
| 511FBA106M250AAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511ABA000149AAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVPECL | 3.3V |
| 511ABA74M2500AAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVPECL | 3.3V |
| 511BBA000149AAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511BBA74M2500AAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 3.3V |
| 511FBA000149AAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 2.5V |
| 511FBA74M2500AAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511BCA004638BAGR | Skyworks Solutions Inc. | Si511 | 638 kHz | LVDS | 3.3V |
| 511BCA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511BCA135M000AAGR | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 3.3V |
| 511ABA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511ABA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 3.3V |
| 511BBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511FBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511ABA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVPECL | 3.3V |
| 511BBA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511FBA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511ABA000149BAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVPECL | 3.3V |
| 511ABA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVPECL | 3.3V |
| 511BBA000149BAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511BBA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 3.3V |
| 511FBA000149BAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 2.5V |
| 511FBA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511BAA75M0000BAGR | Skyworks Solutions Inc. | Si511 | 75 MHz | LVDS | 3.3V |
| 511DAA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | HCSL | 3.3V |
| 511AAA10M0000CAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | LVPECL | 3.3V |
| 511JAB125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511DAB10M0000CAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | HCSL | 3.3V |
| 511FAA74M2500CAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511ABA200M000AAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511FBA200M000AAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511ABA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511FBA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511ABA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVPECL | 3.3V |
| 511BBA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 3.3V |
| 511FBA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 2.5V |
| 511ABA000149BAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVPECL | 3.3V |
| 511FBA000149BAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 2.5V |
| 511ABA000185AAG | Skyworks Solutions Inc. | Si511 | 185 kHz | LVPECL | 3.3V |
| 511FBA153M600AAG | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511JBA150M000AAG | Skyworks Solutions Inc. | Si511 | 150 MHz | LVDS | 1.8V |
| 511ABA24M0000AAG | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511EBB125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 2.5V |
| 511FBA000331BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511BBA10M0000BAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | LVDS | 3.3V |
| 511BBA5M00000BAGR | Skyworks Solutions Inc. | Si511 | 5 MHz | LVDS | 3.3V |
| 511BBA62M5000BAGR | Skyworks Solutions Inc. | Si511 | 62.5 MHz | LVDS | 3.3V |
| 511DBA27M0000BAGR | Skyworks Solutions Inc. | Si511 | 27 MHz | HCSL | 3.3V |
| 511FBA96M0000BAGR | Skyworks Solutions Inc. | Si511 | 96 MHz | LVDS | 2.5V |
| 511JBA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 1.8V |
| 511JBA67M5000BAGR | Skyworks Solutions Inc. | Si511 | 67.5 MHz | LVDS | 1.8V |
| 511JBA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 1.8V |
| 511JBA52M0000CAGR | Skyworks Solutions Inc. | Si511 | 52 MHz | LVDS | 1.8V |
| 511BBA104M000BAGR | Skyworks Solutions Inc. | Si511 | 104 MHz | LVDS | 3.3V |
| 511ABA50M0000CAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVPECL | 3.3V |
| 511JBA116M625BAGR | Skyworks Solutions Inc. | Si511 | 116.625 MHz | LVDS | 1.8V |
| 511JBA50M0000BAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 1.8V |
| 511FBA111M111CAGR | Skyworks Solutions Inc. | Si511 | 111.111 MHz | LVDS | 2.5V |
| 511JBA125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511JBA116M625CAGR | Skyworks Solutions Inc. | Si511 | 116.625 MHz | LVDS | 1.8V |
| 511FBA83M3333CAGR | Skyworks Solutions Inc. | Si511 | 83.3333 MHz | LVDS | 2.5V |
| 511JBA000346CAGR | Skyworks Solutions Inc. | Si511 | 33.333333 MHz | LVDS | 1.8V |
| 511BBA100M000CAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511LBA38M4000CAGR | Skyworks Solutions Inc. | Si511 | 38.4 MHz | HCSL | 1.8V |
| 511JBA25M0000CAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 1.8V |
| 511BBA125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511ABA52M5000CAGR | Skyworks Solutions Inc. | Si511 | 52.5 MHz | LVPECL | 3.3V |
| 511FBA20M0000CAGR | Skyworks Solutions Inc. | Si511 | 20 MHz | LVDS | 2.5V |
| 511JBA10M0000BAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | LVDS | 1.8V |
| 511JBA72M0000CAGR | Skyworks Solutions Inc. | Si511 | 72 MHz | LVDS | 1.8V |
| 511FBA100M000CAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511DBA100M000CAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511JBB125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511DBA38M4000CAGR | Skyworks Solutions Inc. | Si511 | 38.4 MHz | HCSL | 3.3V |
| 511BBA50M0000CAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 3.3V |
| 511JBB120M000CAGR | Skyworks Solutions Inc. | Si511 | 120 MHz | LVDS | 1.8V |
| 511DBA27M0000CAGR | Skyworks Solutions Inc. | Si511 | 27 MHz | HCSL | 3.3V |
| 511DBA25M0000CAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | HCSL | 3.3V |
| 511JBA80M0000CAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 1.8V |
| 511BBA72M0000BAGR | Skyworks Solutions Inc. | Si511 | 72 MHz | LVDS | 3.3V |
| 511LBA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | HCSL | 1.8V |
| 511JBA66M6670BAGR | Skyworks Solutions Inc. | Si511 | 66.667 MHz | LVDS | 1.8V |
| 511JBA26M0000CAGR | Skyworks Solutions Inc. | Si511 | 26 MHz | LVDS | 1.8V |
| 511BBA5M00000CAGR | Skyworks Solutions Inc. | Si511 | 5 MHz | LVDS | 3.3V |
| 511BBA80M0000CAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 3.3V |
| 511BBA80M0000BAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 3.3V |
| 511BBA70M6560BAGR | Skyworks Solutions Inc. | Si511 | 70.656 MHz | LVDS | 3.3V |
| 511ABA25M0000CAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511BCB125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511ACA68M8128AAG | Skyworks Solutions Inc. | Si511 | 68.8128 MHz | LVPECL | 3.3V |
| 511ABA106M250BAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVPECL | 3.3V |
| 511ACA11M0592BAG | Skyworks Solutions Inc. | Si511 | 11.0592 MHz | LVPECL | 3.3V |
| 511ACA24M0000BAG | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511ACA24M5760BAG | Skyworks Solutions Inc. | Si511 | 24.576 MHz | LVPECL | 3.3V |
| 511ECA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 2.5V |
| 511FAA153M600BAG | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511ABA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511ABB107M500BAGR | Skyworks Solutions Inc. | Si511 | 107.5 MHz | LVPECL | 3.3V |
| 511BBA000306BAGR | Skyworks Solutions Inc. | Si511 | 25.00125 MHz | LVDS | 3.3V |
| 511BBA122M880BAGR | Skyworks Solutions Inc. | Si511 | 122.88 MHz | LVDS | 3.3V |
| 511BBA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 3.3V |
| 511BBA27M0000BAGR | Skyworks Solutions Inc. | Si511 | 27 MHz | LVDS | 3.3V |
| 511BBA30M7200BAGR | Skyworks Solutions Inc. | Si511 | 30.72 MHz | LVDS | 3.3V |
| 511BBA50M0000BAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 3.3V |
| 511BBA53M6256BAGR | Skyworks Solutions Inc. | Si511 | 53.6256 MHz | LVDS | 3.3V |
| 511BBA96M0000BAGR | Skyworks Solutions Inc. | Si511 | 96 MHz | LVDS | 3.3V |
| 511BBA99M9960BAGR | Skyworks Solutions Inc. | Si511 | 99.996 MHz | LVDS | 3.3V |
| 511BBA99M9980BAGR | Skyworks Solutions Inc. | Si511 | 99.998 MHz | LVDS | 3.3V |
| 511BBB80M0000BAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 3.3V |
| 511DBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511DBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | HCSL | 3.3V |
| 511EBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 2.5V |
| 511EBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 2.5V |
| 511FBA108M000BAGR | Skyworks Solutions Inc. | Si511 | 108 MHz | LVDS | 2.5V |
| 511FBA30M7200BAGR | Skyworks Solutions Inc. | Si511 | 30.72 MHz | LVDS | 2.5V |
| 511FBA40M0000BAGR | Skyworks Solutions Inc. | Si511 | 40 MHz | LVDS | 2.5V |
| 511FBA50M0000BAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 2.5V |
| 511FBA81M0000BAGR | Skyworks Solutions Inc. | Si511 | 81 MHz | LVDS | 2.5V |
| 511HBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 2.5V |
| 511JBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 1.8V |
| 511JBA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 1.8V |
| 511JBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511JBA20M0000BAGR | Skyworks Solutions Inc. | Si511 | 20 MHz | LVDS | 1.8V |
| 511JBA75M0000BAGR | Skyworks Solutions Inc. | Si511 | 75 MHz | LVDS | 1.8V |
| 511JBB125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
1.技术支持 2.客服咨询
全方位技术指导,专业的技术支持让您感受 专业的销售团队,耐心为您解答任
到前所未有的后顾无忧. 何疑问.让您的消费得到保障。
3.质量保证，诚信为上 4.提升业绩,降低成本
我司以"科技为动力,以质量求生存."为理念. 为您的产品量身订制,免费取样,
为您做到低成本,高效率.
工作时间
1，我公司早上上班时间为8：30——12：00。下午上班时间为1：30——5：30。欢迎随时咨询我们，业务员手机都是24小时开机的哦！
2，珠三角地区的客户统一发信丰快递。如您有指定的快递公司，请提前和业务员沟通。广东省外的客户统一发安全便捷快速的顺丰快递.
深 圳 市 泰 河 电 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
电话:0755-27872782
手机:13824306246
邮箱:taiheth@163.com
Q Q:794113422
地址:深圳市宝安区40区33号工业城6楼
网址：http://www.taiheth.com
温馨提示:泰河电子已正式开通微信公众号,大家可以关注订阅我司的微信公众号,每天都会更新新的资料,及进口晶振原包装图.与官网同步,将可以第一时间与大家沟通!欢迎扫码关注!
微信:taihekj QQ:794113422
