首页欧美晶振思佳讯差分晶振,532FC25M0000DGR,6G无线通信晶振

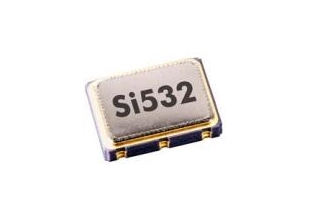

思佳讯差分晶振,532FC25M0000DGR,6G无线通信晶振

产品型号：42005027
晶振频率：25MHz
晶振尺寸：7.0*5.0*1.5mm
产品应用： 思佳讯差分晶振,532FC25M0000DGR,6G无线通信晶振,美国进口晶振,思佳讯差分晶振,Si532有源晶振,石英晶体振荡器,LVDS输出晶振,7050mm晶振,六脚贴片晶振,频率25MHz,电压2.5V,频率稳定性7ppm,工作温度-40~85°C,高稳定性晶...

思佳讯差分晶振,532FC25M0000DGR,6G无线通信晶振,美国进口晶振,思佳讯差分晶振,Si532有源晶振,532FC25M0000DGR晶振,石英晶体振荡器,LVDS输出晶振,7050mm晶振,六脚贴片晶振,频率25MHz,电压2.5V,频率稳定性7ppm,工作温度-40~85°C,高稳定性晶振,低老化晶振,6G无线通信晶振,测试与测量设备晶振,SONET / SDH晶振,物联网晶振.

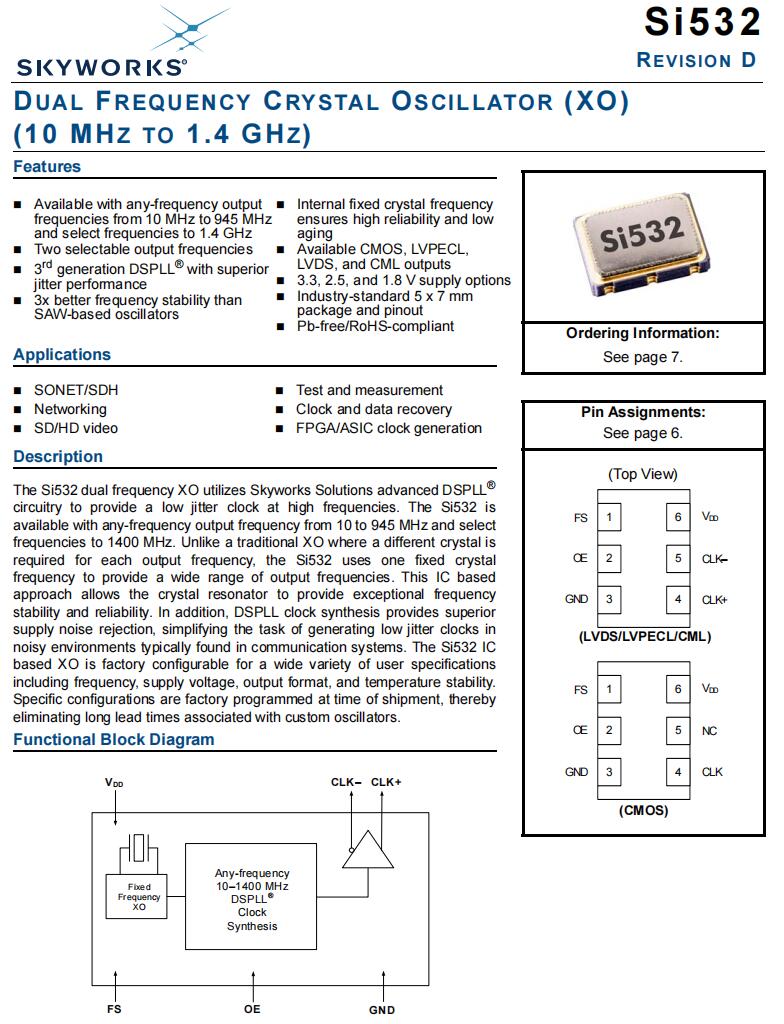

思佳讯差分晶振,532FC25M0000DGR,6G无线通信晶振特点：

•可与任意速率输出频率从10MHz到945MHz和选择频率到1.4 GHz
•两个可选的输出频率

•第三代DSPLL®具有优越的抖动性能

•频率稳定性优于SAW-based振荡器

•内部固定晶频，可靠性高，老化低

•具备CMOS, LVPECL，LVDS和CML输出

•3.3, 2.5和1.8 V电源选项

•行业标准的5 × 7mm封装和引脚

•无铅，符合RoHS标准

思佳讯差分晶振,532FC25M0000DGR,6G无线通信晶振规格表

项目	符号	规格说明	条件
额定频率	f_nom	25MHz	请联系我们以便获取其它可用频率的相关信息
电源电压	Vcc	2.5V
储存温度	T_stg	-55℃~+125℃	裸存
工作温度	T_use	-40℃~ +85℃
频率稳定性	f_tol	±7 ppm	+25℃,超出标准的规格说明请联系我们
电源电流	IDD	98mA Max	LVDS
对称性（占空比）	SYM	45%~55%	在输出交叉点
输出电压	VOD	0.9VPP Max	LVDS
输出电压	VO	1.275V Max	LVDS
输入电压	VIH	0.75×VDD Min
输入电压	VIL	0.5V Max
上升下降时间	tr/tf	350ps Max	LVDS
起始时间	t str	10ms Max
相位抖动	tpj	0.42ps Max	Differential Formats

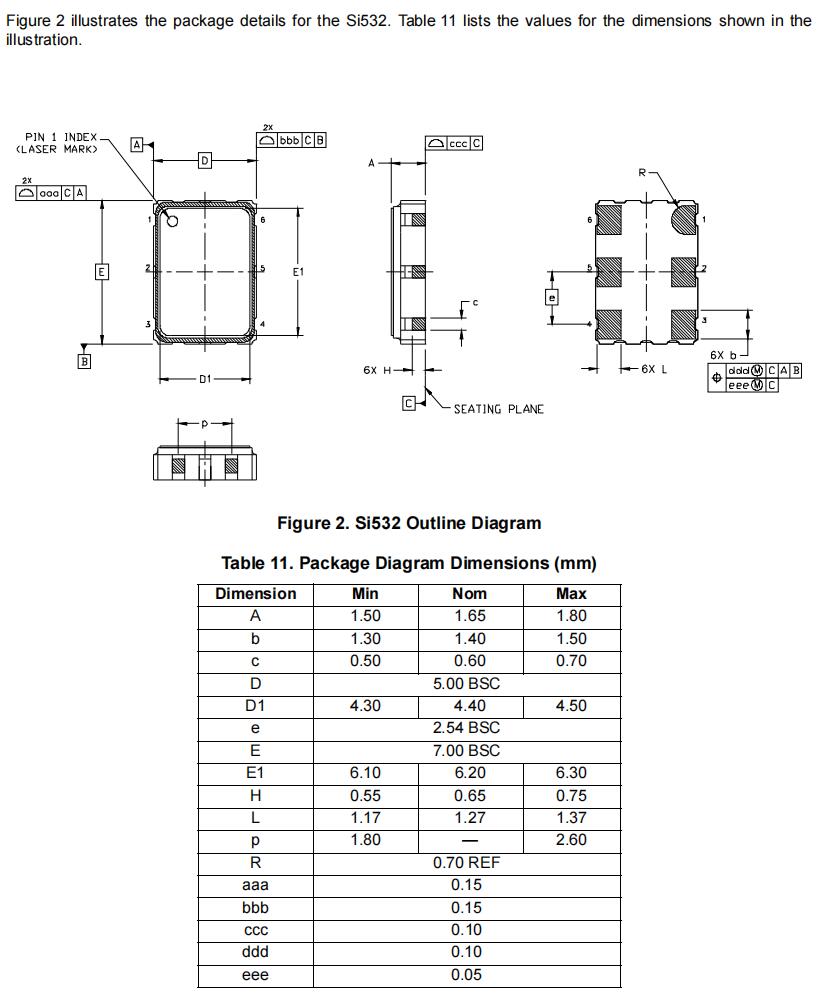

思佳讯差分晶振,532FC25M0000DGR,6G无线通信晶振尺寸图

原厂编码	品牌	型号	频率	输出	电压
531BC125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVDS	3.3V
531BC106M250DG	Skyworks Solutions Inc.	Si531	106.25 MHz	LVDS	3.3V
531EA200M000DG	Skyworks Solutions Inc.	Si531	200 MHz	LVPECL	2.5V
531FC156M250DG	Skyworks Solutions Inc.	Si531	156.25 MHz	LVDS	2.5V
531AC125M000DGR	Skyworks Solutions Inc.	Si531	125 MHz	LVPECL	3.3V
531BA200M000DGR	Skyworks Solutions Inc.	Si531	200 MHz	LVDS	3.3V
531FA160M000DGR	Skyworks Solutions Inc.	Si531	160 MHz	LVDS	2.5V
531FC300M000DG	Skyworks Solutions Inc.	Si531	300 MHz	LVDS	2.5V
531BB100M000DG	Skyworks Solutions Inc.	Si531	100 MHz	LVDS	3.3V
531EC200M000DG	Skyworks Solutions Inc.	Si531	200 MHz	LVPECL	2.5V
531FC000110DG	Skyworks Solutions Inc.	Si531	148.35165 MHz	LVDS	2.5V
531AA156M250DG	Skyworks Solutions Inc.	Si531	156.25 MHz	LVPECL	3.3V
531AB156M250DG	Skyworks Solutions Inc.	Si531	156.25 MHz	LVPECL	3.3V
531AC622M080DG	Skyworks Solutions Inc.	Si531	622.08 MHz	LVPECL	3.3V
531FC25M0000DGR	Skyworks Solutions Inc.	Si531	25 MHz	LVDS	2.5V
531AC187M500DG	Skyworks Solutions Inc.	Si531	187.5 MHz	LVPECL	3.3V
531FC000274DG	Skyworks Solutions Inc.	Si531	322.265625 MHz	LVDS	2.5V
531BC156M250DG	Skyworks Solutions Inc.	Si531	156.25 MHz	LVDS	3.3V
531BA125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVDS	3.3V
531FA125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVDS	2.5V
531BC156M250DGR	Skyworks Solutions Inc.	Si531	156.25 MHz	LVDS	3.3V
531FC100M000DG	Skyworks Solutions Inc.	Si531	100 MHz	LVDS	2.5V
531AC156M250DG	Skyworks Solutions Inc.	Si531	156.25 MHz	LVPECL	3.3V
531EC156M250DG	Skyworks Solutions Inc.	Si531	156.25 MHz	LVPECL	2.5V
531BC148M500DG	Skyworks Solutions Inc.	Si531	148.5 MHz	LVDS	3.3V
531BC200M000DG	Skyworks Solutions Inc.	Si531	200 MHz	LVDS	3.3V
531FC200M000DG	Skyworks Solutions Inc.	Si531	200 MHz	LVDS	2.5V
531BB125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVDS	3.3V
531FB106M250DG	Skyworks Solutions Inc.	Si531	106.25 MHz	LVDS	2.5V
531FB200M000DG	Skyworks Solutions Inc.	Si531	200 MHz	LVDS	2.5V
531FC312M500DG	Skyworks Solutions Inc.	Si531	312.5 MHz	LVDS	2.5V
531FC125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVDS	2.5V
531AC125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVPECL	3.3V
531EC125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVPECL	2.5V
531FC106M250DG	Skyworks Solutions Inc.	Si531	106.25 MHz	LVDS	2.5V
531AC200M000DGR	Skyworks Solutions Inc.	Si531	200 MHz	LVPECL	3.3V
531BC000110DGR	Skyworks Solutions Inc.	Si531	148.35165 MHz	LVDS	3.3V
531BC148M500DGR	Skyworks Solutions Inc.	Si531	148.5 MHz	LVDS	3.3V
531FC155M520DG	Skyworks Solutions Inc.	Si531	155.52 MHz	LVDS	2.5V
531BC000110DG	Skyworks Solutions Inc.	Si531	148.35165 MHz	LVDS	3.3V
531FC148M500DG	Skyworks Solutions Inc.	Si531	148.5 MHz	LVDS	2.5V
531FB125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVDS	2.5V
531BC312M500DG	Skyworks Solutions Inc.	Si531	312.5 MHz	LVDS	3.3V
531AC250M000DG	Skyworks Solutions Inc.	Si531	250 MHz	LVPECL	3.3V
531BC250M000DG	Skyworks Solutions Inc.	Si531	250 MHz	LVDS	3.3V
531FC250M000DG	Skyworks Solutions Inc.	Si531	250 MHz	LVDS	2.5V
531EC106M250DG	Skyworks Solutions Inc.	Si531	106.25 MHz	LVPECL	2.5V
531FB150M000DG	Skyworks Solutions Inc.	Si531	150 MHz	LVDS	2.5V
531AC100M000DG	Skyworks Solutions Inc.	Si531	100 MHz	LVPECL	3.3V
531FA312M500DG	Skyworks Solutions Inc.	Si531	312.5 MHz	LVDS	2.5V
531BC311M040DG	Skyworks Solutions Inc.	Si531	311.04 MHz	LVDS	3.3V
531NA000185DGR	Skyworks Solutions Inc.	Si531	161.132812 MHz	LVDS	3.3V
531NA161M132DGR	Skyworks Solutions Inc.	Si531	161.132 MHz	LVDS	3.3V
531NA000185DG	Skyworks Solutions Inc.	Si531	161.132812 MHz	LVDS	3.3V
531NA161M132DG	Skyworks Solutions Inc.	Si531	161.132 MHz	LVDS	3.3V
531BB122M880DGR	Skyworks Solutions Inc.	Si531	122.88 MHz	LVDS	3.3V
531NB122M880DGR	Skyworks Solutions Inc.	Si531	122.88 MHz	LVDS	3.3V
531NB80M0000DGR	Skyworks Solutions Inc.	Si531	80 MHz	LVDS	3.3V
531BB122M880DG	Skyworks Solutions Inc.	Si531	122.88 MHz	LVDS	3.3V
531NB122M880DG	Skyworks Solutions Inc.	Si531	122.88 MHz	LVDS	3.3V
531NB80M0000DG	Skyworks Solutions Inc.	Si531	80 MHz	LVDS	3.3V
531AC114M285DG	Skyworks Solutions Inc.	Si531	114.285 MHz	LVPECL	3.3V
531AC116M444DG	Skyworks Solutions Inc.	Si531	116.444 MHz	LVPECL	3.3V
531AC25M0002DG	Skyworks Solutions Inc.	Si531	25.0002 MHz	LVPECL	3.3V
531BC22M5792DG	Skyworks Solutions Inc.	Si531	22.5792 MHz	LVDS	3.3V
531AC114M285DGR	Skyworks Solutions Inc.	Si531	114.285 MHz	LVPECL	3.3V
531AC116M444DGR	Skyworks Solutions Inc.	Si531	116.444 MHz	LVPECL	3.3V
531AC25M0002DGR	Skyworks Solutions Inc.	Si531	25.0002 MHz	LVPECL	3.3V
531BC22M5792DGR	Skyworks Solutions Inc.	Si531	22.5792 MHz	LVDS	3.3V
531BB000185DG	Skyworks Solutions Inc.	Si531	185 kHz	LVDS	3.3V
531FB148M350DG	Skyworks Solutions Inc.	Si531	148.35 MHz	LVDS	2.5V
531NB161M132DG	Skyworks Solutions Inc.	Si531	161.132 MHz	LVDS	3.3V
531BB000185DGR	Skyworks Solutions Inc.	Si531	185 kHz	LVDS	3.3V
531FB148M350DGR	Skyworks Solutions Inc.	Si531	148.35 MHz	LVDS	2.5V
531NB161M132DGR	Skyworks Solutions Inc.	Si531	161.132 MHz	LVDS	3.3V
531BA48M0000DGR	Skyworks Solutions Inc.	Si531	48 MHz	LVDS	3.3V
531AA000183DGR	Skyworks Solutions Inc.	Si531	183 kHz	LVPECL	3.3V
531AA100M000DGR	Skyworks Solutions Inc.	Si531	100 MHz	LVPECL	3.3V
531AA100M100DGR	Skyworks Solutions Inc.	Si531	100.1 MHz	LVPECL	3.3V
531AA106M250DGR	Skyworks Solutions Inc.	Si531	106.25 MHz	LVPECL	3.3V
531AA10M0000DGR	Skyworks Solutions Inc.	Si531	10 MHz	LVPECL	3.3V
531AA112M000DGR	Skyworks Solutions Inc.	Si531	112 MHz	LVPECL	3.3V
531AA114M285DGR	Skyworks Solutions Inc.	Si531	114.285 MHz	LVPECL	3.3V
531AA120M000DGR	Skyworks Solutions Inc.	Si531	120 MHz	LVPECL	3.3V
531AA125M000DGR	Skyworks Solutions Inc.	Si531	125 MHz	LVPECL	3.3V
531AA14M2500DGR	Skyworks Solutions Inc.	Si531	14.25 MHz	LVPECL	3.3V
531AA19M4400DGR	Skyworks Solutions Inc.	Si531	19.44 MHz	LVPECL	3.3V
531AA20M0000DGR	Skyworks Solutions Inc.	Si531	20 MHz	LVPECL	3.3V
531AA25M0000DGR	Skyworks Solutions Inc.	Si531	25 MHz	LVPECL	3.3V
531AA38M8800DGR	Skyworks Solutions Inc.	Si531	38.88 MHz	LVPECL	3.3V
531AA62M5000DGR	Skyworks Solutions Inc.	Si531	62.5 MHz	LVPECL	3.3V
531AA64M0000DGR	Skyworks Solutions Inc.	Si531	64 MHz	LVPECL	3.3V
531AA78M1250DGR	Skyworks Solutions Inc.	Si531	78.125 MHz	LVPECL	3.3V
531AA80M0000DGR	Skyworks Solutions Inc.	Si531	80 MHz	LVPECL	3.3V
531AA83M0000DGR	Skyworks Solutions Inc.	Si531	83 MHz	LVPECL	3.3V
531AA83M3333DGR	Skyworks Solutions Inc.	Si531	83.3333 MHz	LVPECL	3.3V
531AA85M0000DGR	Skyworks Solutions Inc.	Si531	85 MHz	LVPECL	3.3V
531AA90M0000DGR	Skyworks Solutions Inc.	Si531	90 MHz	LVPECL	3.3V
531BA100M000DGR	Skyworks Solutions Inc.	Si531	100 MHz	LVDS	3.3V
531BA100M300DGR	Skyworks Solutions Inc.	Si531	100.3 MHz	LVDS	3.3V
531BA106M250DGR	Skyworks Solutions Inc.	Si531	106.25 MHz	LVDS	3.3V
531BA120M000DGR	Skyworks Solutions Inc.	Si531	120 MHz	LVDS	3.3V
531BA125M000DGR	Skyworks Solutions Inc.	Si531	125 MHz	LVDS	3.3V
531BA29M4912DGR	Skyworks Solutions Inc.	Si531	29.4912 MHz	LVDS	3.3V
531BA40M0000DGR	Skyworks Solutions Inc.	Si531	40 MHz	LVDS	3.3V
531BA49M1520DGR	Skyworks Solutions Inc.	Si531	49.152 MHz	LVDS	3.3V
531BA50M0000DGR	Skyworks Solutions Inc.	Si531	50 MHz	LVDS	3.3V
531BA62M5000DGR	Skyworks Solutions Inc.	Si531	62.5 MHz	LVDS	3.3V
531BA66M0000DGR	Skyworks Solutions Inc.	Si531	66 MHz	LVDS	3.3V
531BA75M0000DGR	Skyworks Solutions Inc.	Si531	75 MHz	LVDS	3.3V
531BA80M0000DGR	Skyworks Solutions Inc.	Si531	80 MHz	LVDS	3.3V
531BA98M0000DGR	Skyworks Solutions Inc.	Si531	98 MHz	LVDS	3.3V
531EA100M000DGR	Skyworks Solutions Inc.	Si531	100 MHz	LVPECL	2.5V
531EA122M880DGR	Skyworks Solutions Inc.	Si531	122.88 MHz	LVPECL	2.5V
531EA123M520DGR	Skyworks Solutions Inc.	Si531	123.52 MHz	LVPECL	2.5V
531EA125M000DGR	Skyworks Solutions Inc.	Si531	125 MHz	LVPECL	2.5V
531EA38M4000DGR	Skyworks Solutions Inc.	Si531	38.4 MHz	LVPECL	2.5V
531EA50M0000DGR	Skyworks Solutions Inc.	Si531	50 MHz	LVPECL	2.5V
531EA61M4400DGR	Skyworks Solutions Inc.	Si531	61.44 MHz	LVPECL	2.5V
531EA84M0000DGR	Skyworks Solutions Inc.	Si531	84 MHz	LVPECL	2.5V
531FA100M000DGR	Skyworks Solutions Inc.	Si531	100 MHz	LVDS	2.5V
531FA108M000DGR	Skyworks Solutions Inc.	Si531	108 MHz	LVDS	2.5V
531FA120M000DGR	Skyworks Solutions Inc.	Si531	120 MHz	LVDS	2.5V
531FA123M930DGR	Skyworks Solutions Inc.	Si531	123.93 MHz	LVDS	2.5V
531FA124M400DGR	Skyworks Solutions Inc.	Si531	124.4 MHz	LVDS	2.5V
531FA125M000DGR	Skyworks Solutions Inc.	Si531	125 MHz	LVDS	2.5V
531FA25M0000DGR	Skyworks Solutions Inc.	Si531	25 MHz	LVDS	2.5V
531FA27M0000DGR	Skyworks Solutions Inc.	Si531	27 MHz	LVDS	2.5V
531FA50M0000DGR	Skyworks Solutions Inc.	Si531	50 MHz	LVDS	2.5V
531FA80M0000DGR	Skyworks Solutions Inc.	Si531	80 MHz	LVDS	2.5V
531FA81M0000DGR	Skyworks Solutions Inc.	Si531	81 MHz	LVDS	2.5V
531MA106M250DGR	Skyworks Solutions Inc.	Si531	106.25 MHz	LVPECL	3.3V
531MA50M0000DGR	Skyworks Solutions Inc.	Si531	50 MHz	LVPECL	3.3V
531MA62M5000DGR	Skyworks Solutions Inc.	Si531	62.5 MHz	LVPECL	3.3V
531MA66M0000DGR	Skyworks Solutions Inc.	Si531	66 MHz	LVPECL	3.3V
531NA24M5760DGR	Skyworks Solutions Inc.	Si531	24.576 MHz	LVDS	3.3V
531AB134M561DG	Skyworks Solutions Inc.	Si531	134.561 MHz	LVPECL	3.3V
531AB134M561DGR	Skyworks Solutions Inc.	Si531	134.561 MHz	LVPECL	3.3V
531AC178M019DG	Skyworks Solutions Inc.	Si531	178.019 MHz	LVPECL	3.3V
531AC178M019DGR	Skyworks Solutions Inc.	Si531	178.019 MHz	LVPECL	3.3V
531AC240M000DG	Skyworks Solutions Inc.	Si531	240 MHz	LVPECL	3.3V
531AC240M000DGR	Skyworks Solutions Inc.	Si531	240 MHz	LVPECL	3.3V
531FB122M880DG	Skyworks Solutions Inc.	Si531	122.88 MHz	LVDS	2.5V
531FB122M880DGR	Skyworks Solutions Inc.	Si531	122.88 MHz	LVDS	2.5V
531FC000127DG	Skyworks Solutions Inc.	Si531	644.53125 MHz	LVDS	2.5V
531FC000127DGR	Skyworks Solutions Inc.	Si531	644.53125 MHz	LVDS	2.5V
531BA48M0000DG	Skyworks Solutions Inc.	Si531	48 MHz	LVDS	3.3V
531BA66M0000DG	Skyworks Solutions Inc.	Si531	66 MHz	LVDS	3.3V
531BA75M0000DG	Skyworks Solutions Inc.	Si531	75 MHz	LVDS	3.3V
531BA80M0000DG	Skyworks Solutions Inc.	Si531	80 MHz	LVDS	3.3V
531BA98M0000DG	Skyworks Solutions Inc.	Si531	98 MHz	LVDS	3.3V
531EA100M000DG	Skyworks Solutions Inc.	Si531	100 MHz	LVPECL	2.5V
531EA122M880DG	Skyworks Solutions Inc.	Si531	122.88 MHz	LVPECL	2.5V
531EA123M520DG	Skyworks Solutions Inc.	Si531	123.52 MHz	LVPECL	2.5V
531EA125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVPECL	2.5V
531EA38M4000DG	Skyworks Solutions Inc.	Si531	38.4 MHz	LVPECL	2.5V
531EA50M0000DG	Skyworks Solutions Inc.	Si531	50 MHz	LVPECL	2.5V
531EA61M4400DG	Skyworks Solutions Inc.	Si531	61.44 MHz	LVPECL	2.5V
531EA84M0000DG	Skyworks Solutions Inc.	Si531	84 MHz	LVPECL	2.5V
531FA100M000DG	Skyworks Solutions Inc.	Si531	100 MHz	LVDS	2.5V
531FA108M000DG	Skyworks Solutions Inc.	Si531	108 MHz	LVDS	2.5V
531FA120M000DG	Skyworks Solutions Inc.	Si531	120 MHz	LVDS	2.5V
531FA123M930DG	Skyworks Solutions Inc.	Si531	123.93 MHz	LVDS	2.5V
531FA124M400DG	Skyworks Solutions Inc.	Si531	124.4 MHz	LVDS	2.5V
531FA25M0000DG	Skyworks Solutions Inc.	Si531	25 MHz	LVDS	2.5V
531FA27M0000DG	Skyworks Solutions Inc.	Si531	27 MHz	LVDS	2.5V
531FA50M0000DG	Skyworks Solutions Inc.	Si531	50 MHz	LVDS	2.5V
531FA80M0000DG	Skyworks Solutions Inc.	Si531	80 MHz	LVDS	2.5V
531FA81M0000DG	Skyworks Solutions Inc.	Si531	81 MHz	LVDS	2.5V
531MA106M250DG	Skyworks Solutions Inc.	Si531	106.25 MHz	LVPECL	3.3V
531MA50M0000DG	Skyworks Solutions Inc.	Si531	50 MHz	LVPECL	3.3V
531MA62M5000DG	Skyworks Solutions Inc.	Si531	62.5 MHz	LVPECL	3.3V
531MA66M0000DG	Skyworks Solutions Inc.	Si531	66 MHz	LVPECL	3.3V
531NA24M5760DG	Skyworks Solutions Inc.	Si531	24.576 MHz	LVDS	3.3V
531AA000183DG	Skyworks Solutions Inc.	Si531	183 kHz	LVPECL	3.3V
531AA100M000DG	Skyworks Solutions Inc.	Si531	100 MHz	LVPECL	3.3V
531AA100M100DG	Skyworks Solutions Inc.	Si531	100.1 MHz	LVPECL	3.3V
531AA106M250DG	Skyworks Solutions Inc.	Si531	106.25 MHz	LVPECL	3.3V
531AA10M0000DG	Skyworks Solutions Inc.	Si531	10 MHz	LVPECL	3.3V
531AA112M000DG	Skyworks Solutions Inc.	Si531	112 MHz	LVPECL	3.3V
531AA114M285DG	Skyworks Solutions Inc.	Si531	114.285 MHz	LVPECL	3.3V
531AA120M000DG	Skyworks Solutions Inc.	Si531	120 MHz	LVPECL	3.3V
531AA125M000DG	Skyworks Solutions Inc.	Si531	125 MHz	LVPECL	3.3V
531AA14M2500DG	Skyworks Solutions Inc.	Si531	14.25 MHz	LVPECL	3.3V
531AA19M4400DG	Skyworks Solutions Inc.	Si531	19.44 MHz	LVPECL	3.3V
531AA20M0000DG	Skyworks Solutions Inc.	Si531	20 MHz	LVPECL	3.3V
531AA25M0000DG	Skyworks Solutions Inc.	Si531	25 MHz	LVPECL	3.3V
531AA38M8800DG	Skyworks Solutions Inc.	Si531	38.88 MHz	LVPECL	3.3V
531AA62M5000DG	Skyworks Solutions Inc.	Si531	62.5 MHz	LVPECL	3.3V
531AA64M0000DG	Skyworks Solutions Inc.	Si531	64 MHz	LVPECL	3.3V
531AA78M1250DG	Skyworks Solutions Inc.	Si531	78.125 MHz	LVPECL	3.3V
531AA80M0000DG	Skyworks Solutions Inc.	Si531	80 MHz	LVPECL	3.3V
531AA83M0000DG	Skyworks Solutions Inc.	Si531	83 MHz	LVPECL	3.3V
531AA83M3333DG	Skyworks Solutions Inc.	Si531	83.3333 MHz	LVPECL	3.3V
531AA85M0000DG	Skyworks Solutions Inc.	Si531	85 MHz	LVPECL	3.3V
531AA90M0000DG	Skyworks Solutions Inc.	Si531	90 MHz	LVPECL	3.3V
531BA100M000DG	Skyworks Solutions Inc.	Si531	100 MHz	LVDS	3.3V
531BA100M300DG	Skyworks Solutions Inc.	Si531	100.3 MHz	LVDS	3.3V
531BA106M250DG	Skyworks Solutions Inc.	Si531	106.25 MHz	LVDS	3.3V
531BA120M000DG	Skyworks Solutions Inc.	Si531	120 MHz	LVDS	3.3V
531BA29M4912DG	Skyworks Solutions Inc.	Si531	29.4912 MHz	LVDS	3.3V
531BA40M0000DG	Skyworks Solutions Inc.	Si531	40 MHz	LVDS	3.3V
531BA49M1520DG	Skyworks Solutions Inc.	Si531	49.152 MHz	LVDS	3.3V
531BA50M0000DG	Skyworks Solutions Inc.	Si531	50 MHz	LVDS	3.3V
531BA62M5000DG	Skyworks Solutions Inc.	Si531	62.5 MHz	LVDS	3.3V
531AB000186DGR	Skyworks Solutions Inc.	Si531	186 kHz	LVPECL	3.3V
531AB100M000DGR	Skyworks Solutions Inc.	Si531	100 MHz	LVPECL	3.3V
531AB106M250DGR	Skyworks Solutions Inc.	Si531	106.25 MHz	LVPECL	3.3V
531AB10M0000DGR	Skyworks Solutions Inc.	Si531	10 MHz	LVPECL	3.3V
531AB114M285DGR	Skyworks Solutions Inc.	Si531	114.285 MHz	LVPECL	3.3V
531AB123M930DGR	Skyworks Solutions Inc.	Si531	123.93 MHz	LVPECL	3.3V
531AB125M000DGR	Skyworks Solutions Inc.	Si531	125 MHz	LVPECL	3.3V
531AB19M4400DGR	Skyworks Solutions Inc.	Si531	19.44 MHz	LVPECL	3.3V
531AB25M0000DGR	Skyworks Solutions Inc.	Si531	25 MHz	LVPECL	3.3V
531AB33M8800DGR	Skyworks Solutions Inc.	Si531	33.88 MHz	LVPECL	3.3V
531AB41M6600DGR	Skyworks Solutions Inc.	Si531	41.66 MHz	LVPECL	3.3V
531AB50M0000DGR	Skyworks Solutions Inc.	Si531	50 MHz	LVPECL	3.3V
531AB55M5555DGR	Skyworks Solutions Inc.	Si531	55.5555 MHz	LVPECL	3.3V
531AB60M0000DGR	Skyworks Solutions Inc.	Si531	60 MHz	LVPECL	3.3V
531AB62M5000DGR	Skyworks Solutions Inc.	Si531	62.5 MHz	LVPECL	3.3V
531AB77M7600DGR	Skyworks Solutions Inc.	Si531	77.76 MHz	LVPECL	3.3V
531AB80M0000DGR	Skyworks Solutions Inc.	Si531	80 MHz	LVPECL	3.3V
531AB85M0000DGR	Skyworks Solutions Inc.	Si531	85 MHz	LVPECL	3.3V
531AB90M0000DGR	Skyworks Solutions Inc.	Si531	90 MHz	LVPECL	3.3V
531AB99M1440DGR	Skyworks Solutions Inc.	Si531	99.144 MHz	LVPECL	3.3V
531BB000353DGR	Skyworks Solutions Inc.	Si531	353 kHz	LVDS	3.3V
531BB100M000DGR	Skyworks Solutions Inc.	Si531	100 MHz	LVDS	3.3V
531BB102M400DGR	Skyworks Solutions Inc.	Si531	102.4 MHz	LVDS	3.3V
531BB104M166DGR	Skyworks Solutions Inc.	Si531	104.166 MHz	LVDS	3.3V
531BB106M250DGR	Skyworks Solutions Inc.	Si531	106.25 MHz	LVDS	3.3V
531BB108M000DGR	Skyworks Solutions Inc.	Si531	108 MHz	LVDS	3.3V
531BB120M000DGR	Skyworks Solutions Inc.	Si531	120 MHz	LVDS	3.3V
531BB125M000DGR	Skyworks Solutions Inc.	Si531	125 MHz	LVDS	3.3V
531BB19M4400DGR	Skyworks Solutions Inc.	Si531	19.44 MHz	LVDS	3.3V
531BB25M0000DGR	Skyworks Solutions Inc.	Si531	25 MHz	LVDS	3.3V
531BB49M1520DGR	Skyworks Solutions Inc.	Si531	49.152 MHz	LVDS	3.3V
531BB50M0000DGR	Skyworks Solutions Inc.	Si531	50 MHz	LVDS	3.3V
531BB60M0000DGR	Skyworks Solutions Inc.	Si531	60 MHz	LVDS	3.3V
531BB62M5000DGR	Skyworks Solutions Inc.	Si531	62.5 MHz	LVDS	3.3V
531BB65M0000DGR	Skyworks Solutions Inc.	Si531	65 MHz	LVDS	3.3V
531BB66M0000DGR	Skyworks Solutions Inc.	Si531	66 MHz	LVDS	3.3V
531BB74M2500DGR	Skyworks Solutions Inc.	Si531	74.25 MHz	LVDS	3.3V
531BB80M0000DGR	Skyworks Solutions Inc.	Si531	80 MHz	LVDS	3.3V
531BB82M5000DGR	Skyworks Solutions Inc.	Si531	82.5 MHz	LVDS	3.3V
531BB85M0000DGR	Skyworks Solutions Inc.	Si531	85 MHz	LVDS	3.3V
531BB92M4000DGR	Skyworks Solutions Inc.	Si531	92.4 MHz	LVDS	3.3V
531BB98M3040DGR	Skyworks Solutions Inc.	Si531	98.304 MHz	LVDS	3.3V
531BB99M0000DGR	Skyworks Solutions Inc.	Si531	99 MHz	LVDS	3.3V
531EB100M000DGR	Skyworks Solutions Inc.	Si531	100 MHz	LVPECL	2.5V
531EB106M250DGR	Skyworks Solutions Inc.	Si531	106.25 MHz	LVPECL	2.5V
531EB120M000DGR	Skyworks Solutions Inc.	Si531	120 MHz	LVPECL	2.5V
531EB121M109DGR	Skyworks Solutions Inc.	Si531	121.109 MHz	LVPECL	2.5V
531EB123M930DGR	Skyworks Solutions Inc.	Si531	123.93 MHz	LVPECL	2.5V
531EB125M000DGR	Skyworks Solutions Inc.	Si531	125 MHz	LVPECL	2.5V
531EB25M0000DGR	Skyworks Solutions Inc.	Si531	25 MHz	LVPECL	2.5V
531EB27M0000DGR	Skyworks Solutions Inc.	Si531	27 MHz	LVPECL	2.5V
531EB41M6600DGR	Skyworks Solutions Inc.	Si531	41.66 MHz	LVPECL	2.5V
531EB50M0000DGR	Skyworks Solutions Inc.	Si531	50 MHz	LVPECL	2.5V
531EB62M5000DGR	Skyworks Solutions Inc.	Si531	62.5 MHz	LVPECL	2.5V
531EB74M2500DGR	Skyworks Solutions Inc.	Si531	74.25 MHz	LVPECL	2.5V
531EB77M7600DGR	Skyworks Solutions Inc.	Si531	77.76 MHz	LVPECL	2.5V
531EB78M1250DGR	Skyworks Solutions Inc.	Si531	78.125 MHz	LVPECL	2.5V
531EB99M1440DGR	Skyworks Solutions Inc.	Si531	99.144 MHz	LVPECL	2.5V
531FB100M000DGR	Skyworks Solutions Inc.	Si531	100 MHz	LVDS	2.5V
531FB106M250DGR	Skyworks Solutions Inc.	Si531	106.25 MHz	LVDS	2.5V
531FB120M000DGR	Skyworks Solutions Inc.	Si531	120 MHz	LVDS	2.5V

1.技术支持 2.客服咨询
全方位技术指导,专业的技术支持让您感受专业的销售团队,耐心为您解答任
到前所未有的后顾无忧. 　　何疑问.让您的消费得到保障。
3.质量保证，诚信为上　　 4.提升业绩,降低成本
我司以"科技为动力,以质量求生存."为理念. 　为您的产品量身订制,免费取样,
　　　　　　为您做到低成本,高效率.
工作时间
1，我公司早上上班时间为8：30——12：00。下午上班时间为1：30——5：30。欢迎随时咨询我们，业务员手机都是24小时开机的哦！
2，珠三角地区的客户统一发信丰快递。如您有指定的快递公司，请提前和业务员沟通。广东省外的客户统一发安全便捷快速的顺丰快递.

　深圳市泰河电子有限公司
　代理:EPSON,KDS,CITIZEN,SEIKO
　电话:0755-27872782
　手机:13824306246
　邮箱:taiheth@163.com
　Q Q:794113422
　地址:深圳市宝安区40区33号工业城6楼
　网址：http://www.taiheth.com
温馨提示:泰河电子已正式开通微信公众号,大家可以关注订阅我司的微信公众号,每天都会更新新的资料,及进口晶振原包装图.与官网同步,将可以第一时间与大家沟通!欢迎扫码关注!
