欧美晶振
- 产品型号：61614074
- 晶振频率：32.768KHz
- 晶振尺寸：1.6*1.0*0.5mm
- 产品应用： 日本Fujicom晶振,领先全球的6G网络终端晶振,FCT1M03276809D3晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，超小型晶振，1610晶振，石英晶振，二脚晶振，无源晶振，KHz晶振，贴片晶振，6G信号接收器晶振，6G网络晶...
-
日本Fujicom晶振,领先全球的6G网络终端晶振,FCT1M03276809D3晶振
日本Fujicom晶振,领先全球的6G网络终端晶振,FCT1M03276809D3晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，超小型晶振，1610晶振，石英晶振，二脚晶振，无源晶振，KHz晶振，贴片晶振，6G信号接收器晶振，6G网络晶振，高品质晶振，FCT-1M晶振，超小尺寸1.6×1.0×0.5mm，高可靠性环保性能，高频稳定性好，精度高，设计用于自动安装和回流焊，符合RoHS标准/无铅
日本Fujicom晶振,领先全球的6G网络终端晶振,FCT1M03276809D3晶振

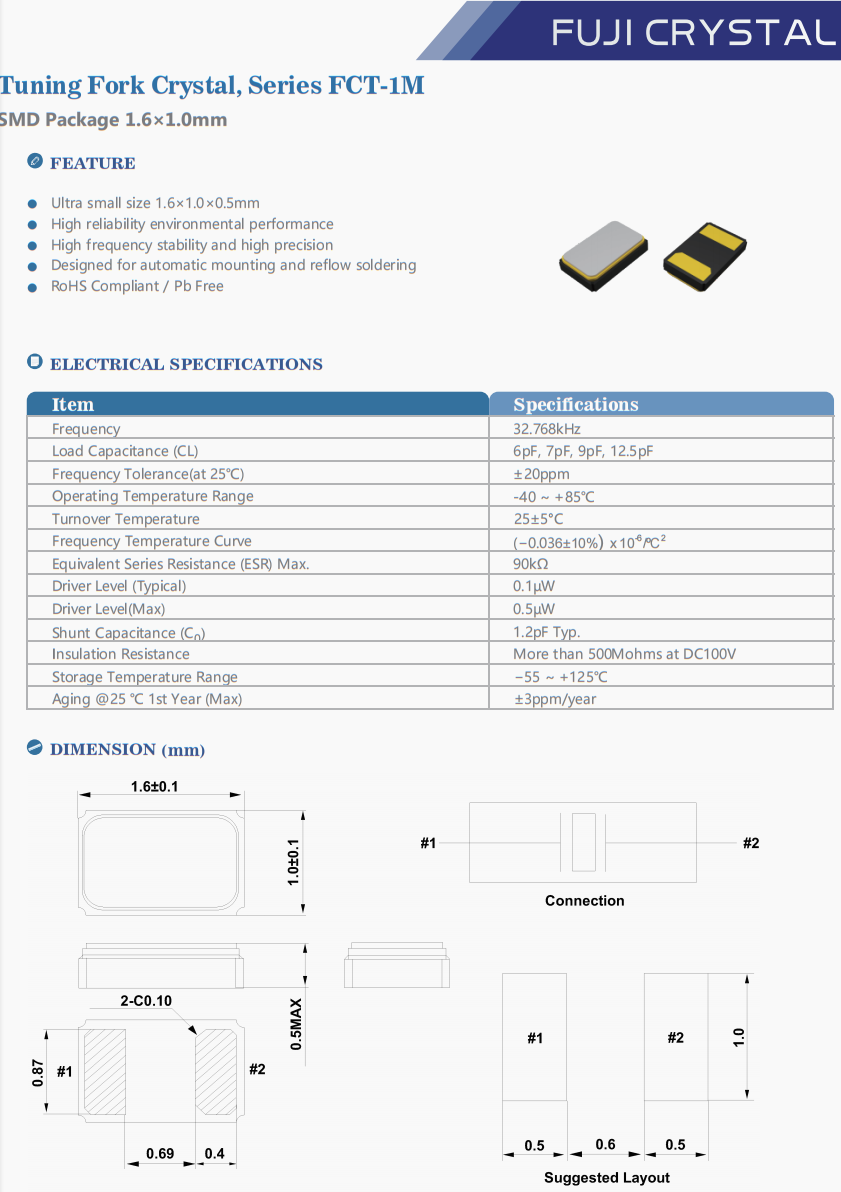

| 项目 | 技术规格 | |
| 频率 | 32.768kHz | |
| 负载电容 | 6pF, 7pF, 9pF, 12.5pF | |
| 频率容差 | ±20ppm | |
| 工作温度 | -40 ~ +85℃ | |
| 周转温度 | 25±5°C | |
| 频率温度曲线 | (−0.036± 10%) x 10-6/ºC2 | |
| 等效串联电阻最大值 | 90kΩ | |
| 驱动电平（标准） | 0.1µW | |
| 驱动电平（最大） | 0.5µW | |
| 分流电容 | 1.2pF Typ. | |
| 绝缘电阻 | More than 500Mohms at DC100V | |
| 储存温度 | − 55 ~ +125℃ | |
| 老化 | ±3ppm/year | |

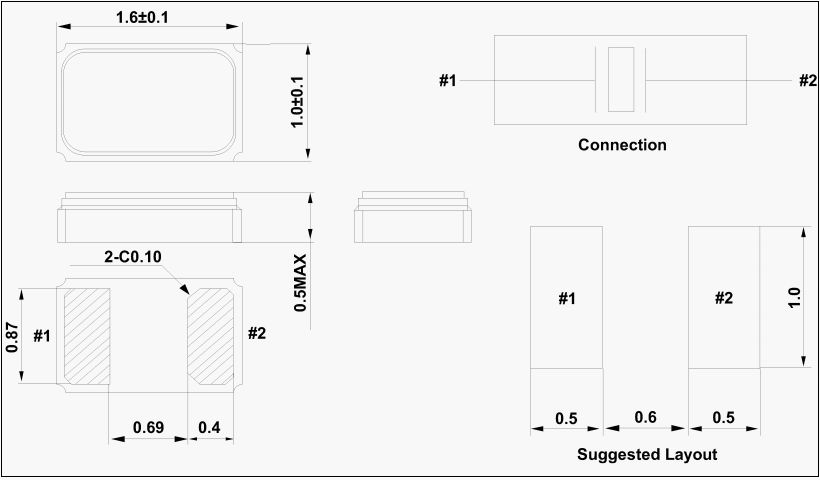

.jpg)
日本Fujicom晶振,领先全球的6G网络终端晶振,FCT1M03276809D3晶振
| 原厂编码 | 生产商 | 型号 | 频率 | 频率稳定度 | 频率容差 | 负载电容 | 工作温度 |
| FCT1M03276806E3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -20°C ~ 70°C |
| FCT1M032768C5W1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | 0°C ~ 70°C |
| FCT1M032768C5E1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -20°C ~ 70°C |
| FCT1M03276806E5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -20°C ~ 70°C |
| FCT1M03276807W3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | 0°C ~ 70°C |
| FCT1M03276807P3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -10°C ~ 60°C |
| FCT1M03276807I6 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -40°C ~ 125°C |
| FCT1M03276806U3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -40°C ~ 105°C |
| FCT1M03276807P1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -10°C ~ 60°C |
| FCT1M03276807Y1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -40°C ~ 85°C |
| FCT1M03276806U5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -40°C ~ 105°C |
| FCT1M03276807R1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -30°C ~ 70°C |
| FCT1M03276809D1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -10°C ~ 70°C |
| FCT1M03276807P5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -10°C ~ 60°C |
| FCT1M03276806U6 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -40°C ~ 105°C |
| FCT1M03276806T3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -30°C ~ 85°C |
| FCT1M03276809S5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -20°C ~ 75°C |
| FCT1M032768C5U6 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -40°C ~ 105°C |
| FCT1M032768C5U9 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -40°C ~ 105°C |
| FCT1M032768C5I6 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -40°C ~ 125°C |
| FCT1M03276806D1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -10°C ~ 70°C |
| FCT1M03276809S3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -20°C ~ 75°C |
| FCT1M03276806E1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -20°C ~ 70°C |
| FCT1M03276807Y5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -40°C ~ 85°C |
| FCT1M032768C5D5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -10°C ~ 70°C |
| FCT1M032768C5I5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -40°C ~ 125°C |
| FCT1M03276807I9 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -40°C ~ 125°C |
| FCT1M03276807Y3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -40°C ~ 85°C |
| FCT1M03276807W5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | 0°C ~ 70°C |
| FCT1M032768C5U5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -40°C ~ 105°C |
| FCT1M03276809S1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -20°C ~ 75°C |
| FCT1M03276806I5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -40°C ~ 125°C |
| FCT1M032768C5U3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -40°C ~ 105°C |
| FCT1M03276806D5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -10°C ~ 70°C |
| FCT1M03276809T1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -30°C ~ 85°C |
| FCT1M032768C5E3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -20°C ~ 70°C |
| FCT1M03276806D3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -10°C ~ 70°C |
| FCT1M03276806T5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -30°C ~ 85°C |
| FCT1M03276809R5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -30°C ~ 70°C |
| FCT1M032768C5E5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -20°C ~ 70°C |
| FCT1M03276807I5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -40°C ~ 125°C |
| FCT1M032768C5D1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -10°C ~ 70°C |
| FCT1M03276809W5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | 0°C ~ 70°C |
| FCT1M03276806I9 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -40°C ~ 125°C |
| FCT1M03276809E1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -20°C ~ 70°C |
| FCT1M03276806W1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | 0°C ~ 70°C |
| FCT1M03276806S3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -20°C ~ 75°C |
| FCT1M03276809P5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -10°C ~ 60°C |
| FCT1M03276807D3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -10°C ~ 70°C |
| FCT1M03276809E3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -20°C ~ 70°C |
| FCT1M032768C5Y3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -40°C ~ 85°C |
| FCT1M03276809R1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -30°C ~ 70°C |
| FCT1M032768C5P1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -10°C ~ 60°C |
| FCT1M03276809D3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -10°C ~ 70°C |
| FCT1M03276809T3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -30°C ~ 85°C |
| FCT1M03276806I6 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -40°C ~ 125°C |
| FCT1M03276806P5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -10°C ~ 60°C |
| FCT1M03276806W5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | 0°C ~ 70°C |
| FCT1M03276809U9 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -40°C ~ 105°C |
| FCT1M03276809Y5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -40°C ~ 85°C |
| FCT1M03276809P1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 9pF | -10°C ~ 60°C |
| FCT1M03276806S5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | -20°C ~ 75°C |
| FCT1M032768C5S1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -20°C ~ 75°C |
| FCT1M032768C5S3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -20°C ~ 75°C |
| FCT1M03276807T5 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 7pF | -30°C ~ 85°C |
| FCT1M032768C5R1 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 12.5pF | -30°C ~ 70°C |
| FCT1M03276806W3 | Fuji晶振 | FCT-1M | 32.768 kHz | - | - | 6pF | 0°C ~ 70°C |
