首页欧美晶振Skyworks差分晶体,544BAAC001713ACG,6G无线网络晶振

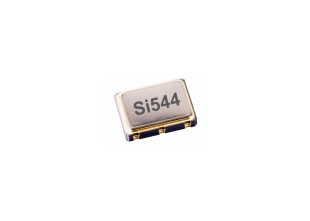

Skyworks差分晶体,544BAAC001713ACG,6G无线网络晶振

产品型号：9454262
晶振频率：325MHz
晶振尺寸：7.0*5.0*1.5mm
产品应用： Skyworks差分晶振,544BAAC001713ACG晶振,有源晶振,Si544 Ultra Series?振荡器,超低抖动晶振,低相位噪声时钟,高可靠性晶振,高频率稳定性晶振,低老化晶振,7050mm晶振,SMD晶体,6G无线网络晶振,网络服务器晶振,电信交换机...

Skyworks差分晶体,544BAAC001713ACG,6G无线网络晶振,Skyworks差分晶振,有源晶振,Si544 Ultra Series™振荡器采用Skyworks Solutions的第四代DSPLL®先进技术,提供超低抖动,低相位噪声时钟在任何输出频率,该设备通过简单的I2C命令进行用户编程,以提供从0.2到1500 MHz的任何频率<1 PPB的分辨率,并在其工作范围内保持极低的整数和分数频率抖动,Si544提供了卓越的可靠性和频率稳定性以及保证的老化性能,片上电源滤波提供业界领先的电源噪声抑制,简化了在使用开关模式电源的噪声系统中产生低抖动时钟的任务,7050mm晶振,SMD晶体,6G无线网络晶振,网络服务器晶振,电信交换机晶振.

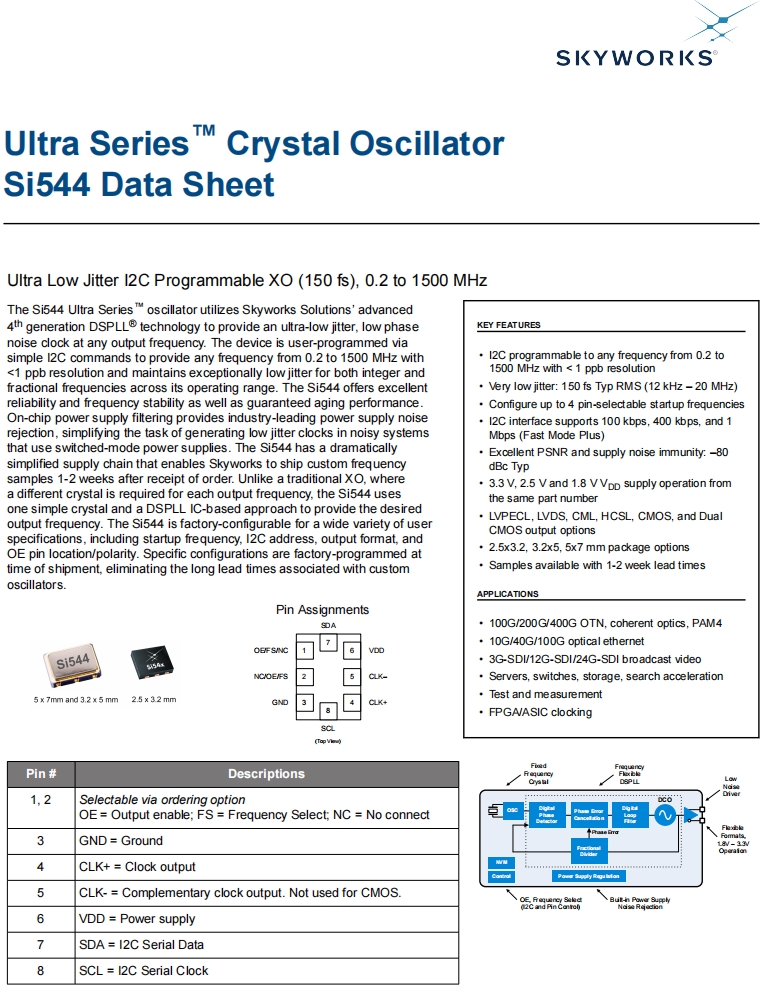

Skyworks差分晶体,544BAAC001713ACG,6G无线网络晶振特点：
•I2C可编程到任何频率从0.2到1500 MHz，分辨率< 1 ppb
•非常低的抖动:150 fs类型RMS (12 kHz - 20 MHz)
•配置多达4引脚可选择的启动频率
•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)
•出色的PSNR和电源抗噪性:-80 dBc类型
•3.3 V, 2.5 V和1.8 V VDD供电操作从相同的零件号
•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS输出选项
•2.5x3.2, 3.2x5, 5x7 mm包装选项
•样品交付周期为1-2周

Skyworks差分晶体,544BAAC001713ACG,6G无线网络晶振规格表

项目	符号	规格说明	条件
额定频率	f_nom	325MHz	请联系我们以便获取其它可用频率的相关信息
电源电压	Vcc	3.3V
储存温度	T_stg	-55℃~+125℃	裸存
工作温度	T_use	-40℃~ +85℃
频率稳定性	f_tol	±20 ppm	+25℃,超出标准的规格说明请联系我们
电源电流	IDD	111mA Max	LVDS
对称性（占空比）	SYM	45%~55%	在输出交叉点
输出电压	VOC	1.275V Max	LVDS
输出电压	VO	0.9Vpp Max	LVDS
输入电压	VIH	0.7×VDD Min
输入电压	VIL	0.3×VDD Max
上升下降时间	tr/tf	350ps Max	LVDS
起始时间	t str	10ms Max
相位抖动	tpj	0.5ps Max	Differential Formats

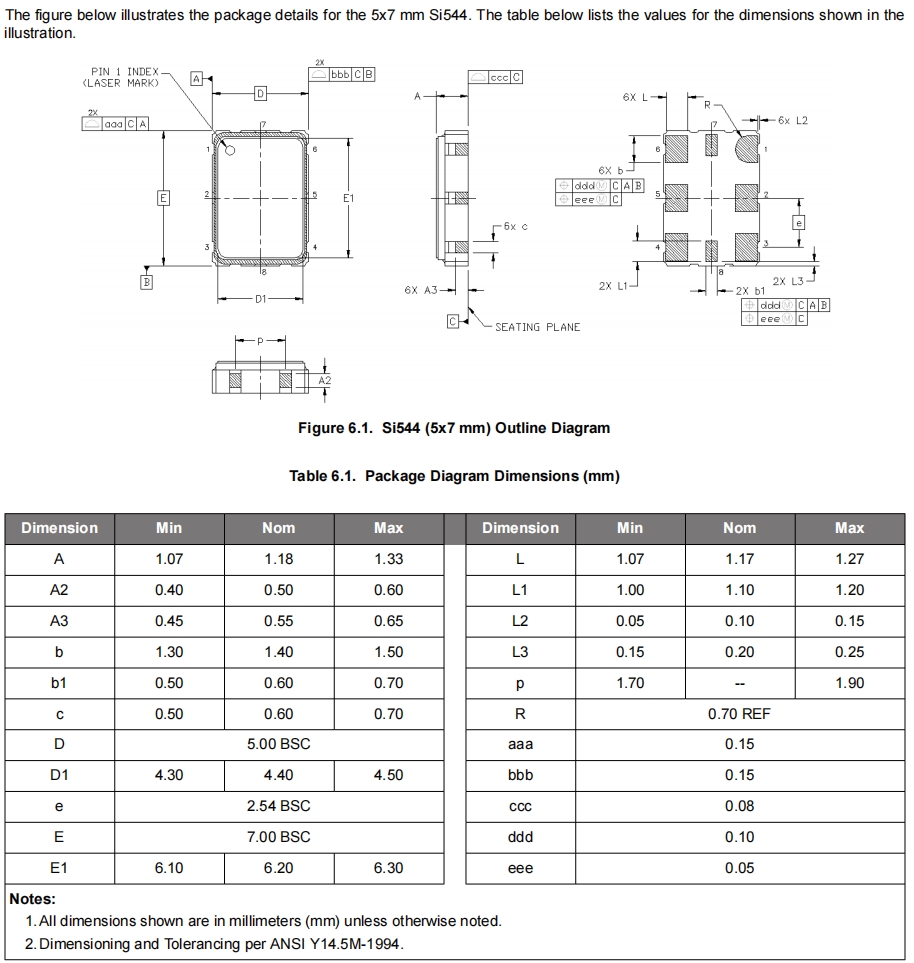

Skyworks差分晶体,544BAAC001713ACG,6G无线网络晶振尺寸图

原厂编码	品牌	型号	频率	输出	电压
544BACC000112ACG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544AAAA000118ACG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V ~ 3.3V
544AADA000163ACG	Skyworks Solutions Inc.	Ultra™ Si544	20 MHz	LVPECL	2.5V ~ 3.3V
544BADB001939ACG	Skyworks Solutions Inc.	Ultra™ Si544	150.060024 MHz	LVDS	1.8V ~ 3.3V
544BACB001962ACG	Skyworks Solutions Inc.	Ultra™ Si544	121.3056 MHz	LVDS	1.8V ~ 3.3V
544AAAA000798ACG	Skyworks Solutions Inc.	Ultra™ Si544	1 MHz	LVPECL	2.5V ~ 3.3V
544BAAC001713ACG	Skyworks Solutions Inc.	Ultra™ Si544	325 MHz	LVDS	1.8V ~ 3.3V
544BACB001952ACG	Skyworks Solutions Inc.	Ultra™ Si544	202.5 MHz	LVDS	1.8V ~ 3.3V
544BACB001808ACG	Skyworks Solutions Inc.	Ultra™ Si544	270 MHz	LVDS	1.8V ~ 3.3V
544BACB001939ACG	Skyworks Solutions Inc.	Ultra™ Si544	150.060024 MHz	LVDS	1.8V ~ 3.3V
544BAAC000627ACG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544BACC001530ACG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BACB001961ACG	Skyworks Solutions Inc.	Ultra™ Si544	121.306 MHz	LVDS	1.8V ~ 3.3V
544AAAA000126ACG	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVPECL	2.5V ~ 3.3V
544BACB001960ACG	Skyworks Solutions Inc.	Ultra™ Si544	227.272727 MHz	LVDS	1.8V ~ 3.3V
544BAAC001741ACG	Skyworks Solutions Inc.	Ultra™ Si544	70.656 MHz	LVDS	1.8V ~ 3.3V
544BADB000991ACG	Skyworks Solutions Inc.	Ultra™ Si544	135 MHz	LVDS	1.8V ~ 3.3V
544ACAA001427BCGR	Skyworks Solutions Inc.	Ultra™ Si544	157 MHz	LVPECL	2.5V ~ 3.3V
544AAAA000121BCG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVPECL	2.5V ~ 3.3V
544BACC000118BCGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V ~ 3.3V
544BACB001960ACGR	Skyworks Solutions Inc.	Ultra™ Si544	227.272727 MHz	LVDS	1.8V ~ 3.3V
544BAAB001011BCGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BCAC002065BCGR	Skyworks Solutions Inc.	Ultra™ Si544	272.8 MHz	LVDS	1.8V ~ 3.3V
544BBAC001541BCGR	Skyworks Solutions Inc.	Ultra™ Si544	96 MHz	LVDS	1.8V ~ 3.3V
544BCAA000126BCGR	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVDS	1.8V ~ 3.3V
544BCAA000136BCGR	Skyworks Solutions Inc.	Ultra™ Si544	160 MHz	LVDS	1.8V ~ 3.3V
544BAAC000111BCG	Skyworks Solutions Inc.	Ultra™ Si544	25 MHz	LVDS	1.8V ~ 3.3V
544AADA000163ACGR	Skyworks Solutions Inc.	Ultra™ Si544	20 MHz	LVPECL	2.5V ~ 3.3V
544BAAA000137BCG	Skyworks Solutions Inc.	Ultra™ Si544	1.024 GHz	LVDS	1.8V ~ 3.3V
544ACAC000112BCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544BACA000420BCG	Skyworks Solutions Inc.	Ultra™ Si544	644.53125 MHz	LVDS	1.8V ~ 3.3V
544AAAA000112BCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544BAAA000137BCGR	Skyworks Solutions Inc.	Ultra™ Si544	1.024 GHz	LVDS	1.8V ~ 3.3V
544AAAA000126ACGR	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVPECL	2.5V ~ 3.3V
544ACAC000112BCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544BAAC000157BCG	Skyworks Solutions Inc.	Ultra™ Si544	50 MHz	LVDS	1.8V ~ 3.3V
544BAAB000482BCG	Skyworks Solutions Inc.	Ultra™ Si544	148.35 MHz	LVDS	1.8V ~ 3.3V
544BBCC000121BCG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544ABAC001975BCGR	Skyworks Solutions Inc.	Ultra™ Si544	40.8 MHz	LVPECL	2.5V ~ 3.3V
544BAAC001713ACGR	Skyworks Solutions Inc.	Ultra™ Si544	325 MHz	LVDS	1.8V ~ 3.3V
544BCBA000544BCGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V ~ 3.3V
544BAAC001808BCGR	Skyworks Solutions Inc.	Ultra™ Si544	270 MHz	LVDS	1.8V ~ 3.3V
544BCAA001541BCG	Skyworks Solutions Inc.	Ultra™ Si544	96 MHz	LVDS	1.8V ~ 3.3V
544BAAB000482BCGR	Skyworks Solutions Inc.	Ultra™ Si544	148.35 MHz	LVDS	1.8V ~ 3.3V
544ACAA000131BCGR	Skyworks Solutions Inc.	Ultra™ Si544	120 MHz	LVPECL	2.5V ~ 3.3V
544AAAA000112BCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544BAAC001808BCG	Skyworks Solutions Inc.	Ultra™ Si544	270 MHz	LVDS	1.8V ~ 3.3V
544BCAA000136BCG	Skyworks Solutions Inc.	Ultra™ Si544	160 MHz	LVDS	1.8V ~ 3.3V
544AAAA000798ACGR	Skyworks Solutions Inc.	Ultra™ Si544	1 MHz	LVPECL	2.5V ~ 3.3V
544BACC000112ACGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544AAAA000110BCG	Skyworks Solutions Inc.	Ultra™ Si544	74.25 MHz	LVPECL	2.5V ~ 3.3V
544BAAC000157BCGR	Skyworks Solutions Inc.	Ultra™ Si544	50 MHz	LVDS	1.8V ~ 3.3V
544BACB001952ACGR	Skyworks Solutions Inc.	Ultra™ Si544	202.5 MHz	LVDS	1.8V ~ 3.3V
544BADB000991ACGR	Skyworks Solutions Inc.	Ultra™ Si544	135 MHz	LVDS	1.8V ~ 3.3V
544AADC000112BCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544ABAA000112BCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544AAAA000118BCG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V ~ 3.3V
544AAAA000118ACGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V ~ 3.3V
544AAAA000118BCGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V ~ 3.3V
544ACAA002065BCGR	Skyworks Solutions Inc.	Ultra™ Si544	272.8 MHz	LVPECL	2.5V ~ 3.3V
544BACB001961ACGR	Skyworks Solutions Inc.	Ultra™ Si544	121.306 MHz	LVDS	1.8V ~ 3.3V
544BAAB001011BCG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544AADC000112BCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544BAAC000111BCGR	Skyworks Solutions Inc.	Ultra™ Si544	25 MHz	LVDS	1.8V ~ 3.3V
544ACAA002065BCG	Skyworks Solutions Inc.	Ultra™ Si544	272.8 MHz	LVPECL	2.5V ~ 3.3V
544ACAA000112BCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544BACB001939ACGR	Skyworks Solutions Inc.	Ultra™ Si544	150.060024 MHz	LVDS	1.8V ~ 3.3V
544BACC001530ACGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BCAA001541BCGR	Skyworks Solutions Inc.	Ultra™ Si544	96 MHz	LVDS	1.8V ~ 3.3V
544BAAA001741BCGR	Skyworks Solutions Inc.	Ultra™ Si544	70.656 MHz	LVDS	1.8V ~ 3.3V
544BAAC000215BCGR	Skyworks Solutions Inc.	Ultra™ Si544	27 MHz	LVDS	1.8V ~ 3.3V
544BACA000420BCGR	Skyworks Solutions Inc.	Ultra™ Si544	644.53125 MHz	LVDS	1.8V ~ 3.3V
544BAAC001741ACGR	Skyworks Solutions Inc.	Ultra™ Si544	70.656 MHz	LVDS	1.8V ~ 3.3V
544BBCB000112BCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544BAAC000627ACGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544BBCC000121BCGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544BAAC000544BCGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V ~ 3.3V
544BBAC001541BCG	Skyworks Solutions Inc.	Ultra™ Si544	96 MHz	LVDS	1.8V ~ 3.3V
544BAAC000544BCG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V ~ 3.3V
544BAAC000215BCG	Skyworks Solutions Inc.	Ultra™ Si544	27 MHz	LVDS	1.8V ~ 3.3V
544ACAA000131BCG	Skyworks Solutions Inc.	Ultra™ Si544	120 MHz	LVPECL	2.5V ~ 3.3V
544BCAA000112BCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544AAAA000110BCGR	Skyworks Solutions Inc.	Ultra™ Si544	74.25 MHz	LVPECL	2.5V ~ 3.3V
544BBCB000112BCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544ABAA000112BCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544BCBA000544BCG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V ~ 3.3V
544ACAA000112BCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V ~ 3.3V
544BAAA001741BCG	Skyworks Solutions Inc.	Ultra™ Si544	70.656 MHz	LVDS	1.8V ~ 3.3V
544BACB001962ACGR	Skyworks Solutions Inc.	Ultra™ Si544	121.3056 MHz	LVDS	1.8V ~ 3.3V
544ABAA001982BCG	Skyworks Solutions Inc.	Ultra™ Si544	133.3125 MHz	LVPECL	2.5V ~ 3.3V
544BBCB000126BCG	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVDS	1.8V ~ 3.3V
544BACB001808ACGR	Skyworks Solutions Inc.	Ultra™ Si544	270 MHz	LVDS	1.8V ~ 3.3V
544BBCB000126BCGR	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVDS	1.8V ~ 3.3V
544BCAC002065BCG	Skyworks Solutions Inc.	Ultra™ Si544	272.8 MHz	LVDS	1.8V ~ 3.3V
544BCAB000313BCG	Skyworks Solutions Inc.	Ultra™ Si544	300 MHz	LVDS	1.8V ~ 3.3V
544ABAC001975BCG	Skyworks Solutions Inc.	Ultra™ Si544	40.8 MHz	LVPECL	2.5V ~ 3.3V
544BCAB000313BCGR	Skyworks Solutions Inc.	Ultra™ Si544	300 MHz	LVDS	1.8V ~ 3.3V
544ABAA001982BCGR	Skyworks Solutions Inc.	Ultra™ Si544	133.3125 MHz	LVPECL	2.5V ~ 3.3V
544BACC000118BCG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V ~ 3.3V
544BCAA000126BCG	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVDS	1.8V ~ 3.3V
544AAAA000121BCGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVPECL	2.5V ~ 3.3V
544BADB001939ACGR	Skyworks Solutions Inc.	Ultra™ Si544	150.060024 MHz	LVDS	1.8V ~ 3.3V
544BCAA000112BCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544ACAA001427BCG	Skyworks Solutions Inc.	Ultra™ Si544	157 MHz	LVPECL	2.5V ~ 3.3V
544BBCB000177BBG	Skyworks Solutions Inc.	Ultra™ Si544	297 MHz	LVDS	1.8V, 2.5V, 3.3V
544AAAA000110BBGR	Skyworks Solutions Inc.	Ultra™ Si544	74.25 MHz	LVPECL	2.5V, 3.3V
544AAAA000112BBGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544AAAA000121BBGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVPECL	2.5V, 3.3V
544AAAA000126ABGR	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVPECL	2.5V, 3.3V
544AAAA000798ABGR	Skyworks Solutions Inc.	Ultra™ Si544	1 MHz	LVPECL	2.5V, 3.3V
544AADA000163ABGR	Skyworks Solutions Inc.	Ultra™ Si544	20 MHz	LVPECL	2.5V, 3.3V
544AADC000112BBGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544BAAB000121BBGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000111BBGR	Skyworks Solutions Inc.	Ultra™ Si544	25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000157BBGR	Skyworks Solutions Inc.	Ultra™ Si544	50 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000544BBGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000627ABGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC001713ABGR	Skyworks Solutions Inc.	Ultra™ Si544	325 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC001741ABGR	Skyworks Solutions Inc.	Ultra™ Si544	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC001808BBGR	Skyworks Solutions Inc.	Ultra™ Si544	270 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC000112ABGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC000118BBGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC000199BBGR	Skyworks Solutions Inc.	Ultra™ Si544	40 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC000627ABGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001530ABGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001530BBGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001926BBGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001927BBGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001928BBGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BADB000991ABGR	Skyworks Solutions Inc.	Ultra™ Si544	135 MHz	LVDS	1.8V, 2.5V, 3.3V
544BADB001939ABGR	Skyworks Solutions Inc.	Ultra™ Si544	150.060024 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAEA001936BBGR	Skyworks Solutions Inc.	Ultra™ Si544	300 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000215BBGR	Skyworks Solutions Inc.	Ultra™ Si544	27 MHz	LVDS	1.8V, 2.5V, 3.3V
544AAAA000110BBG	Skyworks Solutions Inc.	Ultra™ Si544	74.25 MHz	LVPECL	2.5V, 3.3V
544AAAA000112BBG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544AAAA000121BBG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVPECL	2.5V, 3.3V
544AAAA000126ABG	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVPECL	2.5V, 3.3V
544AAAA000798ABG	Skyworks Solutions Inc.	Ultra™ Si544	1 MHz	LVPECL	2.5V, 3.3V
544AADA000163ABG	Skyworks Solutions Inc.	Ultra™ Si544	20 MHz	LVPECL	2.5V, 3.3V
544AADC000112BBG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544BAAB000121BBG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000111BBG	Skyworks Solutions Inc.	Ultra™ Si544	25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000157BBG	Skyworks Solutions Inc.	Ultra™ Si544	50 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000544BBG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000627ABG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC001713ABG	Skyworks Solutions Inc.	Ultra™ Si544	325 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC001741ABG	Skyworks Solutions Inc.	Ultra™ Si544	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC001808BBG	Skyworks Solutions Inc.	Ultra™ Si544	270 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC000112ABG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC000118BBG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC000199BBG	Skyworks Solutions Inc.	Ultra™ Si544	40 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC000627ABG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001530ABG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001530BBG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001926BBG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001927BBG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001928BBG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BADB000991ABG	Skyworks Solutions Inc.	Ultra™ Si544	135 MHz	LVDS	1.8V, 2.5V, 3.3V
544BADB001939ABG	Skyworks Solutions Inc.	Ultra™ Si544	150.060024 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAEA001936BBG	Skyworks Solutions Inc.	Ultra™ Si544	300 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000215BBG	Skyworks Solutions Inc.	Ultra™ Si544	27 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001530BCGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BACC001928BCGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BACC001926BCGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BACC000199BCGR	Skyworks Solutions Inc.	Ultra™ Si544	40 MHz	LVDS	1.8V ~ 3.3V
544BACC001927BCGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BACC000627ACGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544BBAC000115CCGR	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000115CCGR	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000159CCGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544AACC000110ACGR	Skyworks Solutions Inc.	Ultra™ Si544	74.25 MHz	LVPECL	2.5V, 3.3V
544EAAC002354ACGR	Skyworks Solutions Inc.	Ultra™ Si544	103 MHz	HCSL	1.8V, 2.5V, 3.3V
544BACC000188BCGR	Skyworks Solutions Inc.	Ultra™ Si544	12 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000115BCGR	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000112BCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC002361BCGR	Skyworks Solutions Inc.	Ultra™ Si544	245.76 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC001704CCGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC001926BCG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BACC001927BCG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BACC000199BCG	Skyworks Solutions Inc.	Ultra™ Si544	40 MHz	LVDS	1.8V ~ 3.3V
544BACC001530BCG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BACC001928BCG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V ~ 3.3V
544BACC000627ACG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V ~ 3.3V
544BAAC000115CCG	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V ~ 3.3V
544BAAC000159CCG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544AACC000110ACG	Skyworks Solutions Inc.	Ultra™ Si544	74.25 MHz	LVPECL	2.5V, 3.3V
544BAAC002361BCG	Skyworks Solutions Inc.	Ultra™ Si544	245.76 MHz	LVDS	1.8V, 2.5V, 3.3V
544EAAC002354ACG	Skyworks Solutions Inc.	Ultra™ Si544	103 MHz	HCSL	1.8V, 2.5V, 3.3V
544BBAC000115CCG	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000115BCG	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC001704CCG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAC000112BCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACC000188BCG	Skyworks Solutions Inc.	Ultra™ Si544	12 MHz	LVDS	1.8V, 2.5V, 3.3V
544ABAC001975BBGR	Skyworks Solutions Inc.	Ultra™ Si544	40.8 MHz	LVPECL	2.5V, 3.3V
544BBAC000118BBGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBAC001541BBGR	Skyworks Solutions Inc.	Ultra™ Si544	96 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBCC000121BBGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V, 2.5V, 3.3V
544ACAC000112BBGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544BCAC002065BBGR	Skyworks Solutions Inc.	Ultra™ Si544	272.8 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAC002111BBGR	Skyworks Solutions Inc.	Ultra™ Si544	163.2 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBAC000118BCGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V ~ 3.3V
544BBCC000121ACGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544BBAC000199CCGR	Skyworks Solutions Inc.	Ultra™ Si544	40 MHz	LVDS	1.8V, 2.5V, 3.3V
544ABAC001975BBG	Skyworks Solutions Inc.	Ultra™ Si544	40.8 MHz	LVPECL	2.5V, 3.3V
544BBAC000118BBG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBAC001541BBG	Skyworks Solutions Inc.	Ultra™ Si544	96 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBCC000121BBG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBAC000118BCG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V ~ 3.3V
544BBCC000121ACG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544BBAC000199CCG	Skyworks Solutions Inc.	Ultra™ Si544	40 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAC002111BCGR	Skyworks Solutions Inc.	Ultra™ Si544	163.2 MHz	LVDS	1.8V ~ 3.3V
544ACCC000597ACGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V, 3.3V
544ACCC000115ACGR	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVPECL	2.5V, 3.3V
544ACAA000112BBGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544ACAA000131BBGR	Skyworks Solutions Inc.	Ultra™ Si544	120 MHz	LVPECL	2.5V, 3.3V
544ACAA001427BBGR	Skyworks Solutions Inc.	Ultra™ Si544	157 MHz	LVPECL	2.5V, 3.3V
544ACAA002065BBGR	Skyworks Solutions Inc.	Ultra™ Si544	272.8 MHz	LVPECL	2.5V, 3.3V
544BCAA000112BBGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA000126BBGR	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA000136BBGR	Skyworks Solutions Inc.	Ultra™ Si544	160 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA001541BBGR	Skyworks Solutions Inc.	Ultra™ Si544	96 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCBA000544BBGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA000121CCGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544BCAA000112CCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544ACAA000112CCGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544ACAA000112BBG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544ACAA000131BBG	Skyworks Solutions Inc.	Ultra™ Si544	120 MHz	LVPECL	2.5V, 3.3V
544ACAA001427BBG	Skyworks Solutions Inc.	Ultra™ Si544	157 MHz	LVPECL	2.5V, 3.3V
544ACAA002065BBG	Skyworks Solutions Inc.	Ultra™ Si544	272.8 MHz	LVPECL	2.5V, 3.3V
544BCAA000112BBG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA000126BBG	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA000136BBG	Skyworks Solutions Inc.	Ultra™ Si544	160 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA001541BBG	Skyworks Solutions Inc.	Ultra™ Si544	96 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCBA000544BBG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA000121CCG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544ACAA000112CCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544BCAA000112CCG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAC002111BCG	Skyworks Solutions Inc.	Ultra™ Si544	163.2 MHz	LVDS	1.8V ~ 3.3V
544ACCC000597ACG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V, 3.3V
544ACCC000115ACG	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVPECL	2.5V, 3.3V
544ACAC000112BBG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544BCAC002065BBG	Skyworks Solutions Inc.	Ultra™ Si544	272.8 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAC002111BBG	Skyworks Solutions Inc.	Ultra™ Si544	163.2 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAA000137BBG	Skyworks Solutions Inc.	Ultra™ Si544	1.024 GHz	LVDS	1.8V, 2.5V, 3.3V
544BAAA001741BBG	Skyworks Solutions Inc.	Ultra™ Si544	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACA000420BBG	Skyworks Solutions Inc.	Ultra™ Si544	644.53125 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA002302CCGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAA002302CCG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544ABAA000112BBGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544ABAA001982BBGR	Skyworks Solutions Inc.	Ultra™ Si544	133.3125 MHz	LVPECL	2.5V, 3.3V
544BCAB000126CCG	Skyworks Solutions Inc.	Ultra™ Si544	20 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBAB000115BCG	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V, 2.5V, 3.3V
544ABAA000112BBG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVPECL	2.5V, 3.3V
544ABAA001982BBG	Skyworks Solutions Inc.	Ultra™ Si544	133.3125 MHz	LVPECL	2.5V, 3.3V
544BCAB000313BBG	Skyworks Solutions Inc.	Ultra™ Si544	300 MHz	LVDS	2.5V
544BCAB001699ACGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544BCAB001699ACG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544BBAB000115BCGR	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V, 2.5V, 3.3V
544BCAB000126CCGR	Skyworks Solutions Inc.	Ultra™ Si544	20 MHz	LVDS	1.8V, 2.5V, 3.3V
544AAAA000118ABGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V, 3.3V
544AAAA000118BBGR	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V, 3.3V
544AAHA001950ABGR	Skyworks Solutions Inc.	Ultra™ Si544	-	LVPECL	2.5V, 3.3V
544BAAA000137BBGR	Skyworks Solutions Inc.	Ultra™ Si544	1.024 GHz	LVDS	1.8V, 2.5V, 3.3V
544BAAA001741BBGR	Skyworks Solutions Inc.	Ultra™ Si544	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACA000420BBGR	Skyworks Solutions Inc.	Ultra™ Si544	644.53125 MHz	LVDS	1.8V, 2.5V, 3.3V
544AAAA000118ABG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V, 3.3V
544AAAA000118BBG	Skyworks Solutions Inc.	Ultra™ Si544	156.25 MHz	LVPECL	2.5V, 3.3V
544AAHA001950ABG	Skyworks Solutions Inc.	Ultra™ Si544	-	LVPECL	2.5V, 3.3V
544BBAC000115BCGR	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBCB000112BBGR	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBCB000126BBGR	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBCB000177BBGR	Skyworks Solutions Inc.	Ultra™ Si544	297 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBCB000112BBG	Skyworks Solutions Inc.	Ultra™ Si544	10 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBCB000126BBG	Skyworks Solutions Inc.	Ultra™ Si544	200 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBCB000177BCGR	Skyworks Solutions Inc.	Ultra™ Si544	297 MHz	LVDS	1.8V ~ 3.3V
544BCAB000313BBGR	Skyworks Solutions Inc.	Ultra™ Si544	300 MHz	LVDS	2.5V
544BBCB000177BCG	Skyworks Solutions Inc.	Ultra™ Si544	297 MHz	LVDS	1.8V ~ 3.3V
544BAAB000482BBG	Skyworks Solutions Inc.	Ultra™ Si544	148.35 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAB001011BBG	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001808ABG	Skyworks Solutions Inc.	Ultra™ Si544	270 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001939ABG	Skyworks Solutions Inc.	Ultra™ Si544	150.060024 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001952ABG	Skyworks Solutions Inc.	Ultra™ Si544	202.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001960ABG	Skyworks Solutions Inc.	Ultra™ Si544	227.272727 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001961ABG	Skyworks Solutions Inc.	Ultra™ Si544	121.306 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001962ABG	Skyworks Solutions Inc.	Ultra™ Si544	121.3056 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAB000121BCGR	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544BAAB000121BCG	Skyworks Solutions Inc.	Ultra™ Si544	100 MHz	LVDS	1.8V ~ 3.3V
544BAAB000482BBGR	Skyworks Solutions Inc.	Ultra™ Si544	148.35 MHz	LVDS	1.8V, 2.5V, 3.3V
544BAAB001011BBGR	Skyworks Solutions Inc.	Ultra™ Si544	148.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001808ABGR	Skyworks Solutions Inc.	Ultra™ Si544	270 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001939ABGR	Skyworks Solutions Inc.	Ultra™ Si544	150.060024 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001952ABGR	Skyworks Solutions Inc.	Ultra™ Si544	202.5 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001960ABGR	Skyworks Solutions Inc.	Ultra™ Si544	227.272727 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001961ABGR	Skyworks Solutions Inc.	Ultra™ Si544	121.306 MHz	LVDS	1.8V, 2.5V, 3.3V
544BACB001962ABGR	Skyworks Solutions Inc.	Ultra™ Si544	121.3056 MHz	LVDS	1.8V, 2.5V, 3.3V
544BBAC000115BCG	Skyworks Solutions Inc.	Ultra™ Si544	125 MHz	LVDS	1.8V, 2.5V, 3.3V

1.技术支持 2.客服咨询
全方位技术指导,专业的技术支持让您感受专业的销售团队,耐心为您解答任
到前所未有的后顾无忧. 　　何疑问.让您的消费得到保障。
3.质量保证，诚信为上　　 4.提升业绩,降低成本
我司以"科技为动力,以质量求生存."为理念. 　为您的产品量身订制,免费取样,
　　　　　　为您做到低成本,高效率.
工作时间
1，我公司早上上班时间为8：30——12：00。下午上班时间为1：30——5：30。欢迎随时咨询我们，业务员手机都是24小时开机的哦！
2，珠三角地区的客户统一发信丰快递。如您有指定的快递公司，请提前和业务员沟通。广东省外的客户统一发安全便捷快速的顺丰快递.

　深圳市泰河电子有限公司
　代理:EPSON,KDS,CITIZEN,SEIKO
　电话:0755-27872782
　手机:13824306246
　邮箱:taiheth@163.com
　Q Q:794113422
　地址:深圳市宝安区40区33号工业城6楼
　网址：http://www.taiheth.com
温馨提示:泰河电子已正式开通微信公众号,大家可以关注订阅我司的微信公众号,每天都会更新新的资料,及进口晶振原包装图.与官网同步,将可以第一时间与大家沟通!欢迎扫码关注!
