欧美晶振
- 产品型号：81312321
- 晶振频率：32.768KHz
- 晶振尺寸：5.0*3.2*1.2mm
- 产品应用： Fortiming Crystal,XO53-32K768有源晶振,石英晶体振荡器,XO53-32K768-B30B3晶振,5032封装晶振,SMD晶体,四脚贴片晶振,频率32.768KHz,电压3.3V,频率稳定性30ppm,工作温度-40~85°C,高稳定性晶振,耐老化晶振,无铅环保晶振...
-
XO53-32K768-B30B3|32.768KHz|3.3V|Fortiming Crystal
XO53-32K768-B30B3|32.768KHz|3.3V|Fortiming Crystal,Fortiming Crystal,XO53-32K768有源晶振,石英晶体振荡器,XO53-32K768-B30B3晶振,5032封装晶振,SMD晶体,四脚贴片晶振,频率32.768KHz,电压3.3V,频率稳定性30ppm,工作温度-40~85°C,高稳定性晶振,耐老化晶振,无铅环保晶振,无线网络晶振,通讯设备晶振,专业视频设备晶振,FPGA/ASIC时钟生成晶振.
XO53-32K768-B30B3|32.768KHz|3.3V|Fortiming Crystal特点：
-符合RoHS标准(无铅)，行业标准引脚简距
-分电流基本晶体设计
-三状态启用/禁用标准
-无引线芯片载体(LCC)超小型封装（5×3.2×1.1mm）
-符合RoHS标准(无铅)，行业标准引脚简距
-分电流基本晶体设计
-三状态启用/禁用标准
-无引线芯片载体(LCC)超小型封装（5×3.2×1.1mm）

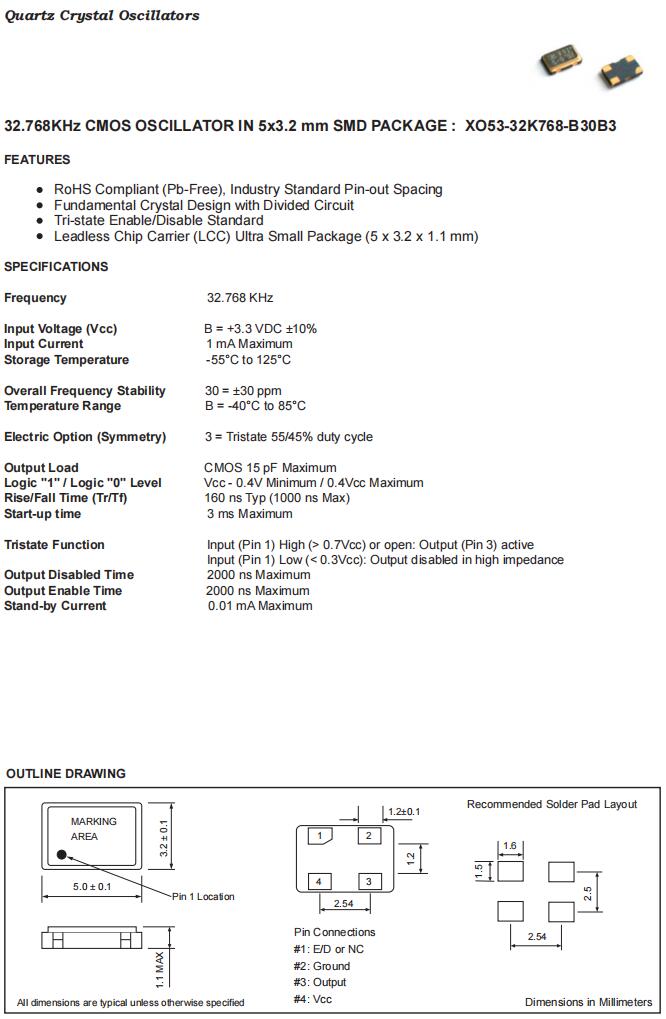

XO53-32K768-B30B3|32.768KHz|3.3V|Fortiming Crystal规格表
| frequency | 32.768 KHz |
|
Input Voltage (Vcc)
|
B＝+3.3 VDC ± 5%
|
|
Input Current
|
1mA Maximum
|
|
Storage Temperature
|
-55°C to 125°C
|
|
Overall Frequency Stability
|
30 = ±30 ppm
|
|
OperatingTemperature Range
|
B＝-40°C to 85°C
|
|
Standard Stability
|
30B = ±30 ppm / -40°C to 85°C
|
|
Electric Option (Symmetry)
|
3 = Tristate 55/45%
|
|
Output Load
|
CMOS: 15 pF load
|
|
Logic "1" / Logic "0" Level
|
Vcc - 0.4V Minimum / 0.4Vcc Maximum
|
|
Rise/Fall Time (Tr/Tf)
|
160 ns Typ
|
|
Start-up time
|
3 ms Maximum
|
|
Tristate Function
|
Input (Pin 1) High (> 0.7Vcc) or open: Output (Pin 3) active
Input (Pin 1) Low (< 0.3Vcc): Output disabled in high impedance
|
|
Stand-by Current
|
0.01 mA Maximum
|
.jpg)

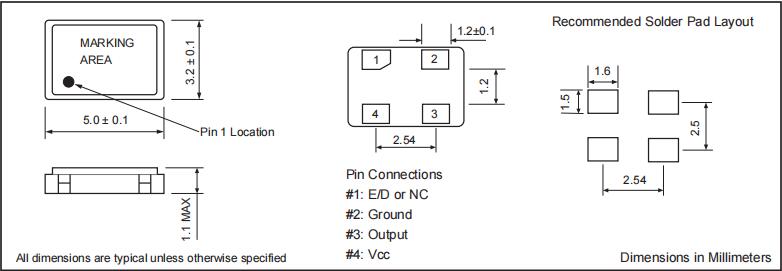

XO53-32K768-B30B3|32.768KHz|3.3V|Fortiming Crystal尺寸图
