ARGO晶振 ARGO晶振公司是专业提供和设计波段频率控制设备和微波无线通信零部件.我们还分销日本,欧洲和美国的一些知名品牌零部件.我们致力于发展与计算机,IT和无线通信公司无任何界限的信息时代.我们秉承经营者的踏实,诚恳的态度,互惠互利的精神,实现共赢的目标,以诚信为本,诚信为本,公平交易为宗旨,以诚信,勤勉,诚信,精神质量第一,客户满意的经营理念,将以优良的产品质量,优惠的价格,优质的服务与您建立长期稳定的合作关系,共创辉煌事业.
- 产品型号：66749274
- 晶振频率：32MHZ
- 晶振尺寸：1.6*1.2*0.4mm
- 产品应用： X1E0002510138FA-118T32MHZ1612mm-20~+70℃10ppm,尺寸为1612mm,频率为32MHZ，工作温度-20C~+70C,频率公差10ppm,日本进口晶振，爱普生晶振，无源贴片晶振，石英晶体谐振器，石英晶体，水晶振动子，高品质晶振，通信模块...
-

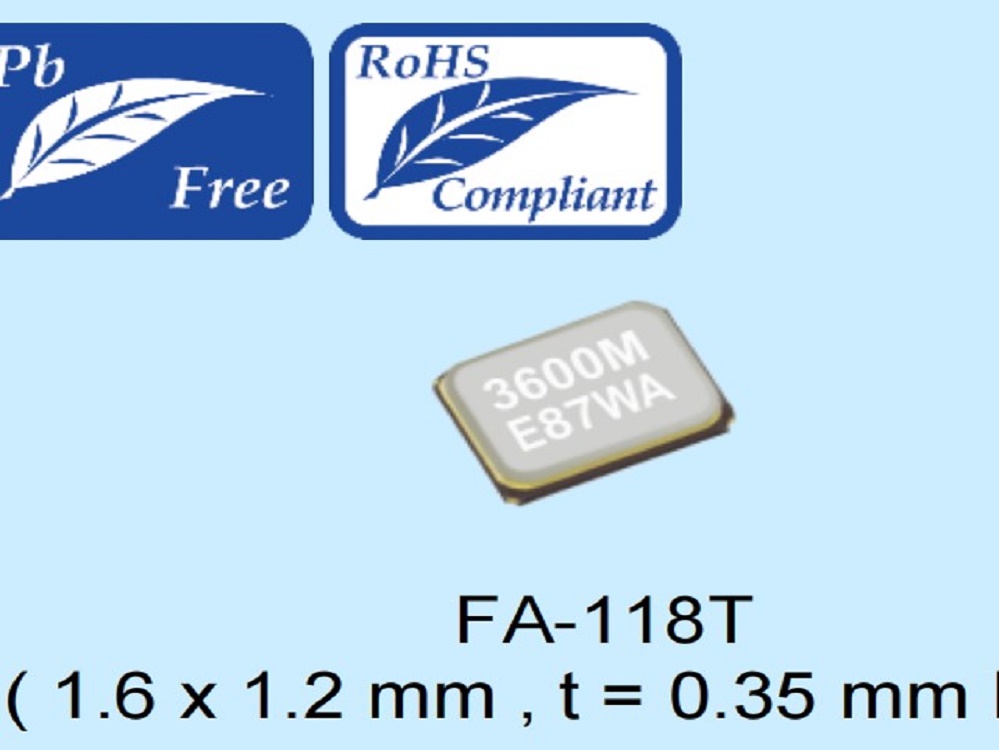

X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm
.JPG)
X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm,尺寸为1612mm,频率为32MHZ，工作温度-20°C~+70°C,频率公差10ppm,日本进口晶振，爱普生晶振，无源贴片晶振，石英晶体谐振器，石英晶体，水晶振动子，高品质晶振，通信模块专用晶振，可穿戴设备晶振，MCU时钟晶振，X1E0002510144无源晶振，X1E0002510150谐振器。
无源晶振产品主要应用于消费和工业应用的小型通信模块，可穿戴设备，MCU时钟等领域。X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm.

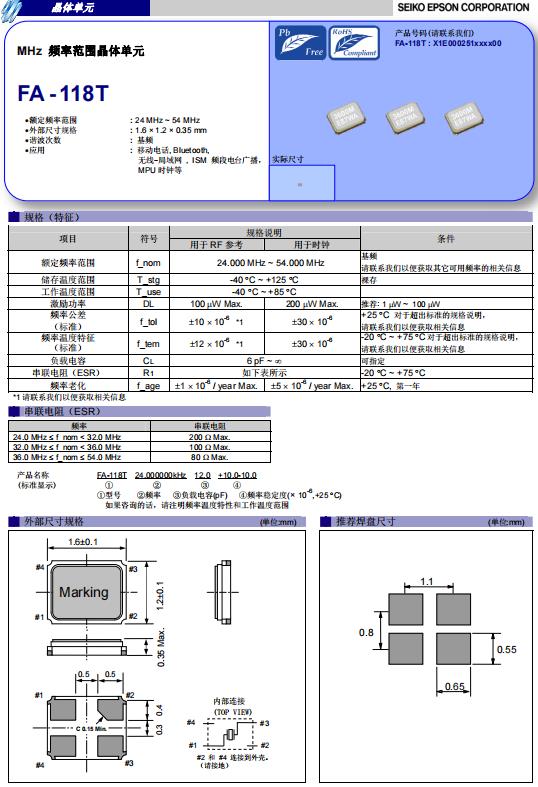

X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm 参数表
| Item | Symbol | Specifications | Unit | Condition / Remarks | |||||||||||||||||||||||||||
| Nominal frequency range | f_nom | 24.000 to 54.000 | MHz | ||||||||||||||||||||||||||||
|
Frequency tolerance (Standard) |
f_tol | ±10 / ±30 | x10-6 |
T_use = +25 °C ± 3 °C DL = 100 μW Does not include frequency aging Please contact Epson for requirements not listed in the specifications |
|||||||||||||||||||||||||||
|
Frequency vs. temperature characteristics (Standard) |
f_tem | ±12 / ±30 | x10-6 |
Reference at t_use = +25 °C ± 3 °C -20 °C to +75 °C Please contact Epson for requirements not listed in the specifications |
|||||||||||||||||||||||||||
| Load capacitance | CL | 6 to ? | pF | Please specify | |||||||||||||||||||||||||||
| Motional resistance (ESR) | R1 | Table 1. | Ω |
π circuit IEC 60444-2 T_use = Operating temperature range DL = 100 μW |
|||||||||||||||||||||||||||
| Shunt capacitance | C0 | 3.0 Max. | pF | ||||||||||||||||||||||||||||
| Frequency aging | f_age | ±1 Max. / ±5 Max. | x10-6 | T_use = +25 °C ± 3 °C | |||||||||||||||||||||||||||
| Item | Symbol | Rating value | Unit | Note | |||||||||||||||||||||||||||
| Min. | Typ. | Max. | |||||||||||||||||||||||||||||
| Storage temperature range | T_stg | --40 | - | +125 | °C |
Satisfy environmental characteristics specifications |
|||||||||||||||||||||||||
| Item | Symbol | Rating value | Unit | Note | |||||||||||||||||||||||||||
| Min. | Typ. | Max. | |||||||||||||||||||||||||||||
| Operating temperature range | T_use | --40 | - | +85 | °C | ||||||||||||||||||||||||||
| --40 | - | +105 | Please contact Epson | ||||||||||||||||||||||||||||
| Level of drive | DL | 1 | 200 | μW | Recommended: 10 μW | ||||||||||||||||||||||||||

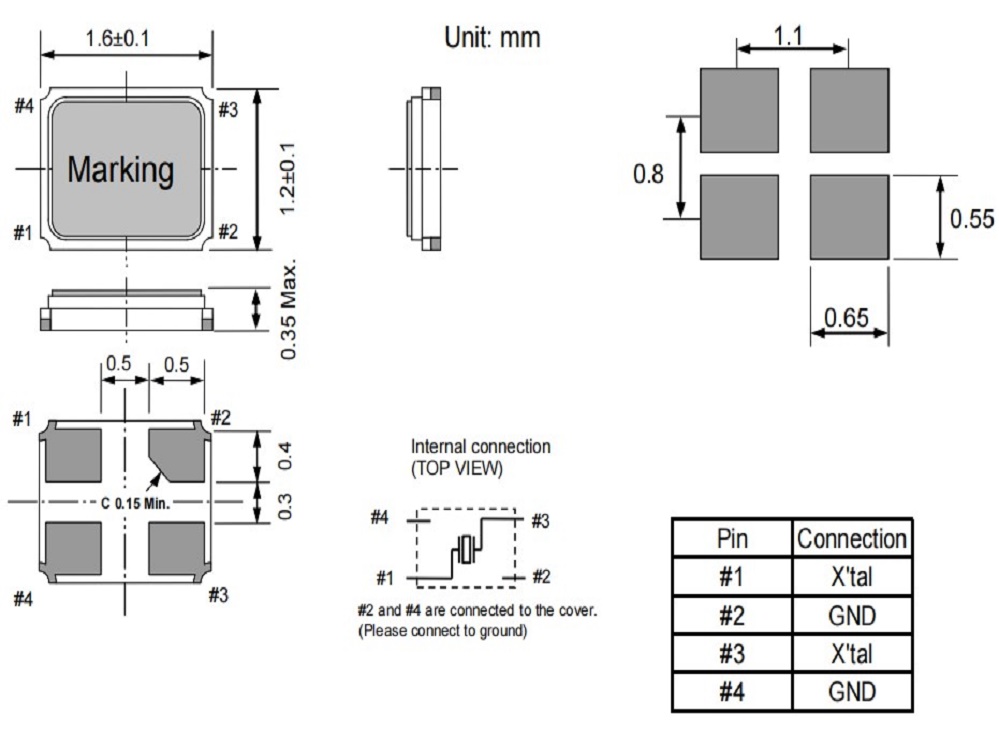

•包装尺寸:1.6x1.2mm, t =0.35mmMax。
•频率范围:24mhz~54mhz
•频率公差(标准):±10 x10-6/±30x10-6(@+25°C)
•频率与温度特性(标准):
±12x10-6(-20°C至+75°C)
±30×10-6(-20°C至+75°C)
•ESR: 200Ω最大。(24MHz<f_nom<32MHz)
100ΩMax。(32MHz<f_nom<36MHz)
80ΩMax。(36MHz<f_nom<54MHz)
订购产品时请注明型号名称、频率和规格编号。
有关规格的更多问题，请随时与我们联系。
微信：13824306246 QQ:794113422 邮箱：taiheth@163.com 座机:0755-27872782
更多相关EPSON爱普生石英晶振型号
有关规格的更多问题，请随时与我们联系。
微信：13824306246 QQ:794113422 邮箱：taiheth@163.com 座机:0755-27872782
更多相关EPSON爱普生石英晶振型号
| 编码 | 尺寸 | 型号 | 频率 | 负载 | 频率 @+25°C | 工作温度 |
| X1E0002510093 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-30 ppm | -20 to +70 °C |
| X1E0002510100 | 1.6 x 1.2 x 0.35mm | FA-118T | 27.120000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510102 | 1.6 x 1.2 x 0.35mm | FA-118T | 50.000000 MHz | 8 pF | +/-30 ppm | -40 to +85 °C |
| X1E0002510104 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-20 ppm | -40 to +85 °C |
| X1E0002510110 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 12.5 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510111 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-50 ppm | -20 to +75 °C |
| X1E0002510113 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510121 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-10 ppm | -20 to +85 °C |
| X1E0002510123 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510126 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 7 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510136 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-15 ppm | -20 to +105 °C |
| X1E0002510138 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-10 ppm | -20 to +70 °C |
| X1E0002510141 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-20 ppm | -40 to +85 °C |
| X1E0002510144 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 20 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510145 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 20 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510148 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510150 | 1.6 x 1.2 x 0.35mm | FA-118T | 38.400000 MHz | 20 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510152 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510153 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510154 | 1.6 x 1.2 x 0.35mm | FA-118T | 50.000000 MHz | 12 pF | +/-30 ppm | -40 to +85 °C |
| X1E0002510155 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 9 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510157 | 1.6 x 1.2 x 0.35mm | FA-118T | 26.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510158 | 1.6 x 1.2 x 0.35mm | FA-118T无源石英晶体 | 50.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510159 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 8 pF | +/-15 ppm | -40 to +85 °C |
| X1E0002510160 | 1.6 x 1.2 x 0.35mm | FA-118T | 30.000000 MHz | 4 pF | +/-70 ppm | -40 to +85 °C |
| X1E0002510161 | 1.6 x 1.2 x 0.35mm | FA-118T | 37.400000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510166 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510169 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-50 ppm | -40 to +85 °C |
| X1E0002510033 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510065 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510099 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 6 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510134 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-10 ppm | -20 to +85 °C |
| X1E0002510190 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 12 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510197 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510201 | 1.6 x 1.2 x 0.35mm | FA-118T | 38.400000 MHz | 8 pF | +/-10 ppm | -20 to +85 °C |
| X1E0002510212 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 6 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510215 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-20 ppm | -40 to +85 °C |
| X1E0002510219 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
