- 产品型号：53199655
- 晶振频率：59.9285MHZ
- 晶振尺寸：3.2*2.5*1.1mm
- 产品应用： 1XVD059928VA,DSV321SV,59.9285MHZ,日本KDS晶振,1XVD059928VA有源压控晶振,四脚贴片晶振.日本KDS进口晶振,特点:3225尺寸,厚度1.1mm,小型SMD-VCXO,小型但确保足够的可变量,频率线性变化的模拟型VCXO,低耗电流,用途:DVD...
-

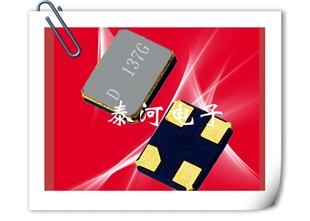

1XVD059928VA,DSV321SV,59.9285MHZ,日本KDS晶振
1XVD059928VA,DSV321SV,59.9285MHZ,日本KDS晶振,1XVD059928VA有源压控晶振,四脚贴片晶振.日本KDS进口晶振,特点:3225尺寸,厚度1.1mm,小型SMD-VCXO,小型但确保足够的可变量,频率线性变化的模拟型VCXO,低耗电流,用途:DVD、数字电视、STB、基础传输用,贴片晶振本身体积小,超薄型石英晶体振荡器,特别适用于有目前高速发展的高端电子数码产品.

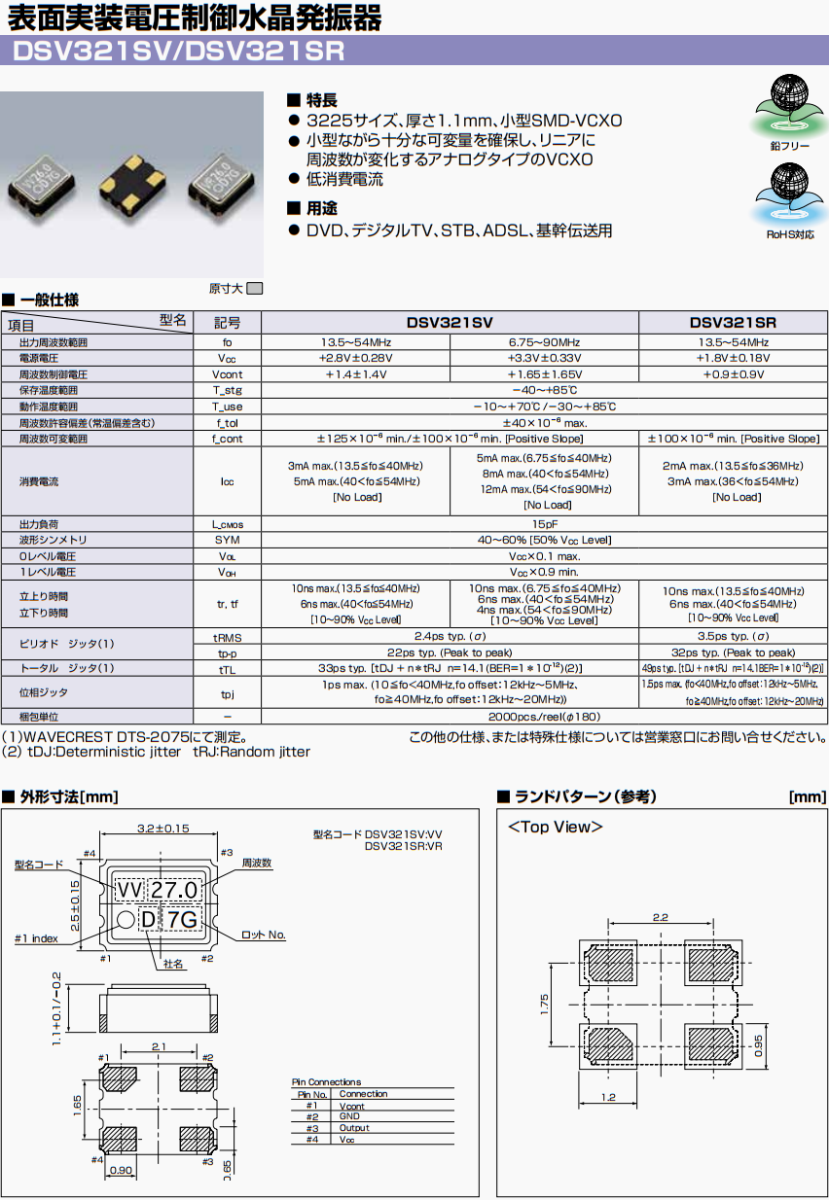

1XVD059928VA,DSV321SV,59.9285MHZ,日本KDS晶振
| 項目/型号 | 符号 | DSV321SV |
| 输出频率范围 | f0 | 6.75 ~90MHz |
| 电源电压 | VCC | +3.3V±0.33V |
| 频率控制电压 | Vcont | +1.65V±1.65V |
| 保存温度范围 | T_stg | −40 ~ +85℃ |
| 运行温度范围i | T_use | −10 ~＋70℃ /−30~＋85℃ |
| 频率公差（含温度偏差） | f_tol | ±40×10−6 max. |
| 频率可变范围 | f_cont | ±125×10−6 min./±100×10−6 min. [Positive Slope] |
| 消耗电流 | ICC | 5mA max. （6.75MHz≦f0 ≦40MHz） |
| 8mA max. （40MHz＜f0 ≦54MHz） | ||
| 12mA max. （54MHz＜f0 ≦90MHz） | ||
| [No Load] | ||
| 输出负载 | L_CMOS | 15pF |
| 波形堆成 | SYM | 40~ 60% [50％ VCC Level] |
| 0电平电压 | VOL | VCC ×0.1 max. |
| 1电平电压 | VOH | VCC ×0.9 min. |
| 上升时间 | tr, tf | 10ns max. （6.75MHz≦f0 ≦40MHz） |
| 下降时间 | 6ns max. （40MHz＜f0 ≦54MHz） | |
| 4ns max. （54MHz＜f0 ≦90MHz） | ||
| ［10 ~90％ VCC Level］ | ||
| 周期抖动（1） | tRMS | 2.4ps typ. (σ) |
| tp-p | 22ps typ. (Peak to peak) | |
| 总抖动（1） | tTL | 33pstyp. ［tDJ + n×tRJ n=14.1(BER=1×10-12)(2)] |
| 相位抖动 | tpj | 1ps max. (10MHz≦f0<40MHz, f0 offset：12kHz ? 5MHz、 |
| f0 ≧40MHz, f0 offset：12kHz ~ 20MHz) | ||
| 包装单位（3） | − | 2000pcs./reel(φ180） |
.jpg)
1XVD059928VA,DSV321SV,59.9285MHZ,日本KDS晶振
| 品牌 | 原厂代码 | 型号 | 尺寸 | 频率 | 负载/电压 | 精度 |
| KDS晶振 | 1TJH125DR1A0004 | DST1610A | 1610 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDJ1AI00S | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF090DP1AI007 | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AI008 | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA00K | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF0SPDN1A000B | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TD125DGNS003 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS002 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768KHZ | 6.0PF | 20PPM |
| KDS晶振 | 1TD125BHNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768KHZ | 7.5PF | 10PPM |
| KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768KHZ | 10.0PF | -6/+2PPM |
| KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768KHZ | 12.5PF | 30/40P |
| KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768KHZ | 12.5PF | 1000PPM |
| KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM |
| KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768KHZ | 12.5PF | +12/+28PPM |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6MHZ | 10PF | 30PPM |
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332MHZ | 12PF | 20PPM |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000MHZ | 20PF | 30PPM |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000MHZ | 15PF | 15PPM |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AJ100005B | SMD-49 | 11*4.6 | 10.000MHZ | 12PF | 50PPM |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576MHZ | 18PF | 30PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000MHZ | 12.9PF | 20PPM |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400MHZ | 12PF | 50ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367MHZ | 2.8V | 1.5ppm |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC09382 | DSA535SG | 5032 | 18.432MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000MHZ | 12PF | 15ppm |
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000MHZ | 10PF | 30ppm |
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000MHZ | 9PF | 10ppm |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000MHZ | 8PF | 10ppm |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000MHZ | 10PF | 20ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000MHZ | 7PF | 20PPM |
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000MHZ | 9PF | 50ppm |
| KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12MHZ | 10PF | 20PPM |
| KDS晶振 | 1N226000AA0L | DSX321G | 3225 | 26.000MHZ | 7.5pf | 10ppm |
| KDS晶振 | 1N226000AA0G | DSX321G | 3225 | 26.000MHZ | 12.5PF | 10ppm |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4MHZ | 7pf | 12ppm |
| KDS晶振 | 7CG03840A06 | DSR1612ATH | 1612 | 38.400MHZ | 8PF | 10ppm |
