爱普生FC-12M晶振详细规格表
来源:http://www.taiheth.com 作者:泰河电子 2018年11月24
爱普生晶振是国内外都比较出名使用又多的晶振品牌,无论是从晶振品牌的知名度以及石英晶振的产品质量来讲都是得到广大使用该产品的群体所认可的.无论是KHZ晶振,还是MHZ晶振爱普生晶振公司都会涉及到,小到1610尺寸晶振,大到8045贴片晶振.它们正随着市场的需求从而改进产品的封装尺寸.以下列举了部分爱普生晶振型号以及FC-12M晶振参数编码表.

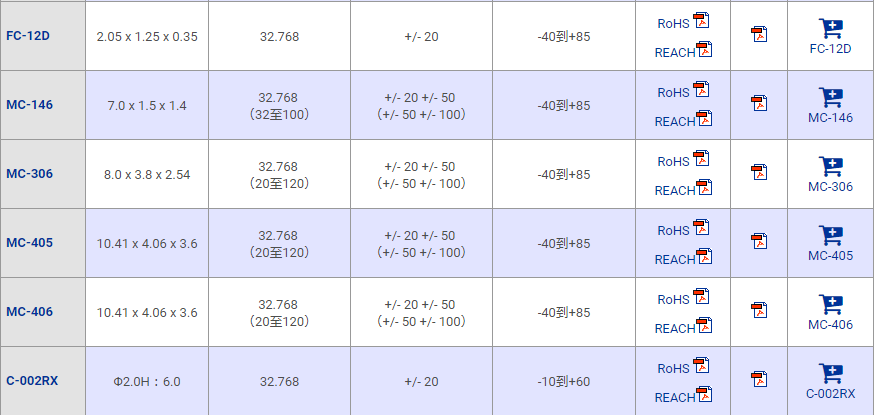

爱普生KHZ晶振系列型号表
爱普生晶振的每个型号都具有很多的参数,从负载电容上来区分,可以分为6PF,7PF,8PF,9PF,12.5PF,每个负载电容的背后都会有相对应的频率稳定度,较常用的是20PPM,也是市面上使用较多的参数值了.除了20PPM,还有10PPM,15PPM,30PM,甚至可达高精度5PPM,当然,精度的数值越小,相对的偏差就会越小,价格也当然是会越贵的.

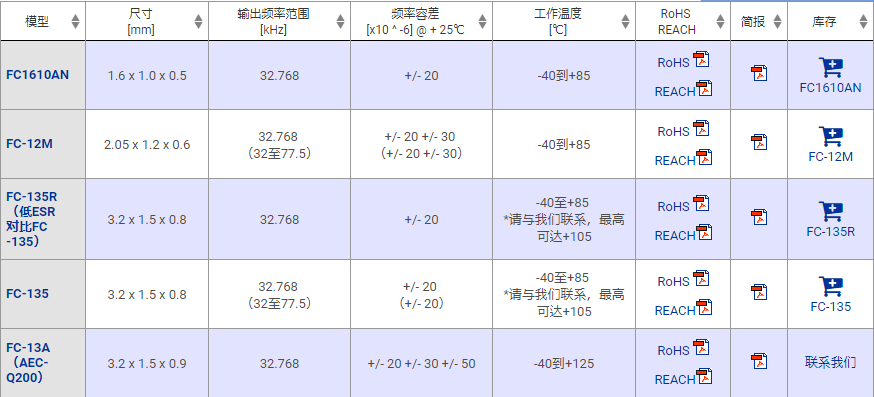

爱普生KHZ晶振系列型号表
当你在晶振选型的时候遇到了问题,不防将我们的官网收藏起来,我们每天都会更新品牌型号表以及单一型号详细完整参数资料供大家观看,当然我们也会每天定时的去更新及上架新产品信息.
爱普生KHZ晶振系列型号表
爱普生晶振的每个型号都具有很多的参数,从负载电容上来区分,可以分为6PF,7PF,8PF,9PF,12.5PF,每个负载电容的背后都会有相对应的频率稳定度,较常用的是20PPM,也是市面上使用较多的参数值了.除了20PPM,还有10PPM,15PPM,30PM,甚至可达高精度5PPM,当然,精度的数值越小,相对的偏差就会越小,价格也当然是会越贵的.
晶振型号编码 | 尺寸(长宽高) | 型号 | 频率 | 负载电容 | 频率偏差 | 工作温度 | ESR阻值 |
X1A000021000200 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 10 pF | +/-20.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000021000700 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 10 pF | +/-20.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000021000800 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 10 pF | +/-20.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000021001100 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 10 pF | +/-20.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000021001200 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 10 pF | +/-20.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000061000200 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 12.5 pF | +/-20.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000061000300 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 12.5 pF | +/-30.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000061001400 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 12.5 pF | +/-10.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000061002100 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 6 pF | +/-20.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000061003200 | 2.05x1.2x0.6mm | FC-12M | 32.768kHz | 6.6 pF | +/-20.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000091000100 | 3.2 x 1.5 x 0.9 mm | FC-13A | 32.768kHz | 12.5 pF | +/-20.0 ppm | -40 to +125 °C | ≤ 70 KΩ |
X1A000091000200 | 3.2 x 1.5 x 0.9 mm | FC-13A | 32.768kHz | 12.5 pF | +/-50.0 ppm | -40 to +125 °C | ≤ 70 KΩ |
当你在晶振选型的时候遇到了问题,不防将我们的官网收藏起来,我们每天都会更新品牌型号表以及单一型号详细完整参数资料供大家观看,当然我们也会每天定时的去更新及上架新产品信息.
晶振型号编码 | 尺寸(长宽高) | 型号 | 频率 | 负载电容 | 频率偏差 | 工作温度 | ESR阻值 |
X1A000021001000 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 9 pF | +/-20.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000021001300 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 9 pF | +/-20.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000021001400 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 9 pF | -10.0/+30.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000021001500 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 9 pF | 20.0/+60.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000021001600 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 7 pF | +/-20.0 ppm | -40 to +85 °C | ≤ TBD KΩ |
X1A000061000600 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 7 pF | +/-20.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000061000800 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 9 pF | +/-20.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000061002400 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 9 pF | +/-10.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000061003000 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 8 pF | +/-20.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000061003500 | 2.05 x 1.2 x 0.6 mm | FC-12M | 32.768kHz | 7 pF | +/-10.0 ppm | -40 to +85 °C | ≤ 90 KΩ |
X1A000091000300 | 3.2 x 1.5 x 0.9 mm | FC-13A | 32.768kHz | 9 pF | +/-50.0 ppm | -40 to +125 °C | ≤ 70 KΩ |
