超小型2016mm晶振Q22FA1280001800最适用于无线通讯系统
来源:http://www.taiheth.com 作者:泰河盛电子 2022年09月29
爱普生是日本有名的频率元件制造商,专业生产销售石英晶振,石英晶体振荡器,贴片晶振,晶体滤波器等.发展至今已是国际有名的晶体元件制造商,致力于为客户提供高性能,高可靠,高品质晶振产品。

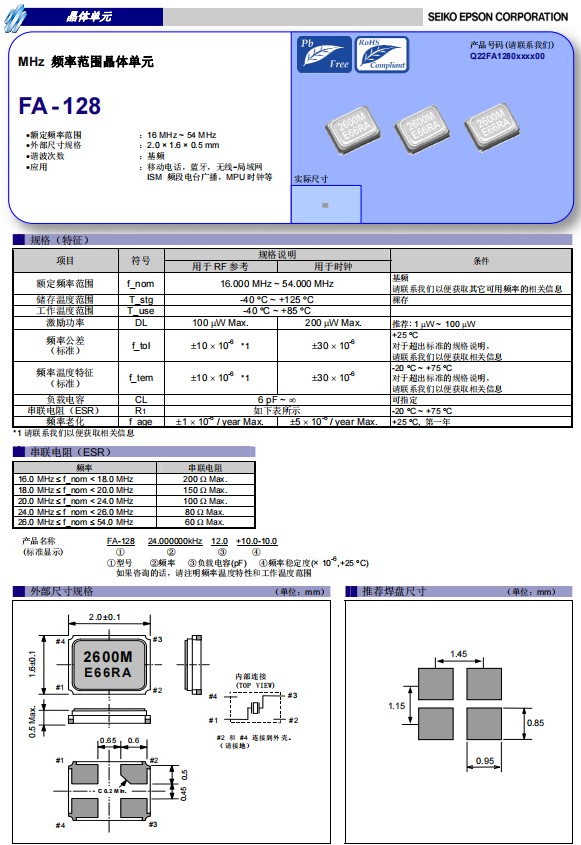

爱普生晶振FA-128是一款小体积晶振尺寸2.0x1.6mm无源晶振,石英晶体谐振器,四脚贴片晶振,频率范围:16MHz至54MHz,具有超小型,轻薄型,稳定性好,耐热及耐环境特点,该款FA-128小体积晶振,可以在-40℃至+85℃(+105℃)的温度内稳定工作,被广泛应用于小型便捷式通信设备、手机、笔记本、数码相机、平板电脑电表、水表、计量仪表、汽车电子、工业控制系统等。
超小型2016mm晶振Q22FA1280001800最适用于无线通讯系统,Q22FA1280011600,石英晶体谐振器
超小型2016mm晶振Q22FA1280001800最适用于无线通讯系统,Q22FA1280011600,石英晶体谐振器
爱普生晶振FA-128是一款小体积晶振尺寸2.0x1.6mm无源晶振,石英晶体谐振器,四脚贴片晶振,频率范围:16MHz至54MHz,具有超小型,轻薄型,稳定性好,耐热及耐环境特点,该款FA-128小体积晶振,可以在-40℃至+85℃(+105℃)的温度内稳定工作,被广泛应用于小型便捷式通信设备、手机、笔记本、数码相机、平板电脑电表、水表、计量仪表、汽车电子、工业控制系统等。
超小型2016mm晶振Q22FA1280001800最适用于无线通讯系统,Q22FA1280011600,石英晶体谐振器
产品编码 | 尺寸 | 型号 | 爱普生晶振 | 负载电容 | 精度 | 频率公差 | 工作温度 |
Q22FA1280000200 | 2x1.6x0.5mm | FA-128 | 48.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA1280000700 | 2x1.6x0.5mm | FA-128 | 38.400000MHz | 10pF | +/-15ppm | +/-15ppm | -20to+85°C |
Q22FA1280000800 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA1280001000 | 2x1.6x0.5mm | FA-128 | 38.400000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280001100 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280001300 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 16pF | +/-30ppm | +/-30ppm | -25to+70°C |
Q22FA1280001400 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 16pF | +/-30ppm | +/-30ppm | -40to+85°C |
Q22FA1280001800 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280002000 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280002100 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280002200 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280002400 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280002500 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280002600 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280003000 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA1280003100 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 18pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q22FA1280003400 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 8pF | +/-15ppm | +/-15ppm | -30to+70°C |
Q22FA1280003500 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q22FA1280003700 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+75°C |
Q22FA1280003800 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+75°C |
Q22FA1280004300 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q22FA1280004400 | 2x1.6x0.5mm | FA-128 | 48.000000MHz | 16pF | +/-15ppm | +/-18ppm | -40to+85°C |
Q22FA1280004500 | 2x1.6x0.5mm | FA-128 | 38.400000MHz | 8.5pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280004700 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+85°C |
Q22FA1280005300 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+70°C |
Q22FA1280005400 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+70°C |
Q22FA1280006100 | 2x1.6x0.5mm | FA-128 | 44.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280006200 | 2x1.6x0.5mm | FA-128 | 48.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA1280006400 | 2x1.6x0.5mm | FA-128 | 37.400000MHz | 18pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280006700 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q22FA1280007000 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 7pF | +/-10ppm | +/-15ppm | -20to+70°C |
Q22FA1280008500 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q22FA1280008900 | 2x1.6x0.5mm | FA-128 | 48.000000MHz | 8pF | +/-30ppm | +/-50ppm | -30to+85°C |
Q22FA1280009000 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q22FA1280009100 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA1280009200 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q22FA1280009400 | 2x1.6x0.5mm | FA-128 | 40.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280009900 | 2x1.6x0.5mm | FA-128 | 40.000000MHz | 8pF | +/-10ppm | -11/+13ppm | -30to+85°C |
Q22FA1280010000 | 2x1.6x0.5mm | FA-128 | 38.400000MHz | 8pF | +/-10ppm | -11/+13ppm | -30to+85°C |
Q22FA1280010100 | 2x1.6x0.5mm | FA-128 | 40.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q22FA1280010500 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 12.5pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q22FA1280010700 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+75°C |
Q22FA1280010800 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q22FA1280011200 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 10pF | +/-15ppm | +/-15ppm | -20to+75°C |
Q22FA1280011400 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280011600 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 12pF | +/-15ppm | +/-20ppm | -20to+70°C |
Q22FA1280011900 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 10pF | +/-20ppm | +/-20ppm | -20to+75°C |
Q22FA1280012000 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280012100 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 15pF | +/-10ppm | +/-18ppm | -40to+85°C |
Q22FA1280012500 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 6pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q22FA1280012600 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q22FA1280012700 | 2x1.6x0.5mm | FA-128 | 24.576000MHz | 10pF | +/-30ppm | +/-20ppm | -20to+75°C |
Q22FA1280012900 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q22FA1280013100 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 9pF | +/-10ppm | +/-9ppm | -20to+75°C |
Q22FA1280013200 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 15pF | +/-10ppm | +/-10ppm | -20to+70°C |
Q22FA1280013500 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 12pF | +/-10ppm | +/-18ppm | -40to+85°C |
Q22FA1280013700 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 9pF | +/-20ppm | +/-30ppm | -30to+85°C |
Q22FA1280014000 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q22FA1280014100 | 2x1.6x0.5mm | FA-128 | 20.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+70°C |
Q22FA1280014300 | 2x1.6x0.5mm | FA-128 | 48.000000MHz | 6pF | +/-50ppm | +/-30ppm | -30to+85°C |
Q22FA1280014500 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 6pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280014600 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 7pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q22FA1280014700 | 2x1.6x0.5mm | FA-128 | 38.400000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
2016mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英贴片晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接(产品无铅对应),为无铅产品.
