FA-20H专用于智能手机应用Q24FA20H0003900
来源:http://www.taiheth.com 作者:泰河盛电子 2022年09月14

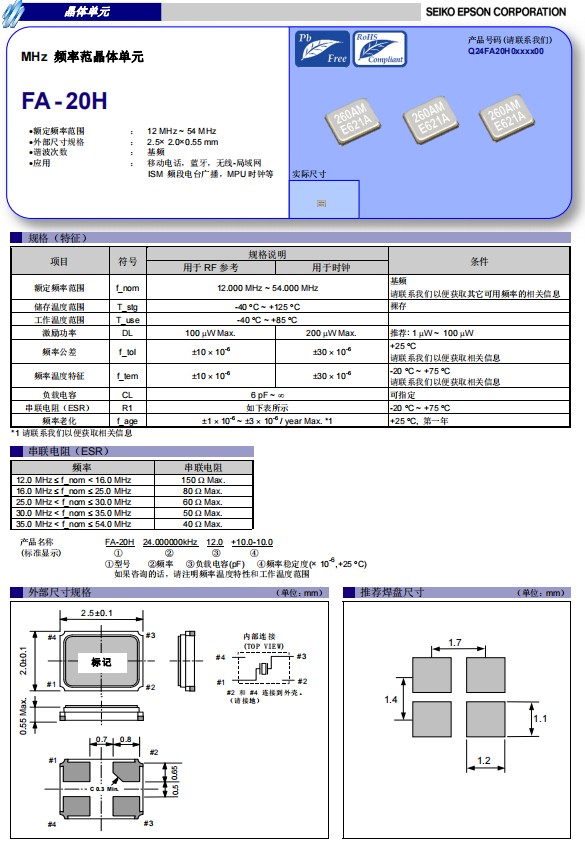

日本进口爱普生晶振热销型号FA-20H,是一款小体积晶振尺寸2.5x2.0mm无源晶振,石英晶体谐振器,四脚贴片晶振,FA-20H石英晶体谐振器频率范围12MHz至54MHz,可以在-40°C至+85°C的温度内稳定工作,具有超小型,轻薄型,稳定性好,耐热及耐环境特性,主要用于移动电话,智能手机,蓝牙,无线-局域网,ISM 频段电台广播,MPU时钟等,因此也有人使用手机晶振、蓝牙晶振、时钟晶振这种词称呼这类小尺寸贴片晶振。
FA-20H专用于智能手机应用,Q24FA20H0000600,石英晶体谐振器
FA-20H专用于智能手机应用,Q24FA20H0000600,石英晶体谐振器
小型贴片石英晶振主要采用了,先进的晶片的抛光工艺技术,是晶体行业中石英晶片研磨技术中表面处理的最高技术,最终使晶片表面更光洁,平行度及平面度更好,大大的降低谐振电阻,使精度得到了很大的提升。改变了传统的生产工艺,使产品在各项参数得到了很大的改良,外观尺寸具有薄型表面贴片型石英晶体谐振器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品。
FA-20H专用于智能手机应用,Q24FA20H0000600,石英晶体谐振器
产品编码 | 贴片晶振 | 型号 | 频率 | 负载电容 | 精度 |
Q24FA20H0000100 | 2.5x2x0.55mm | FA-20H | 18.000000MHz | 10pF | +/-10ppm |
Q24FA20H0000300 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 9pF | +/-10ppm |
Q24FA20H0000500 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 9pF | +/-10ppm |
Q24FA20H0000600 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 10pF | +/-10ppm |
Q24FA20H0000800 | 2.5x2x0.55mm | FA-20H | 48.000000MHz | 7pF | +/-50ppm |
Q24FA20H0002900 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 8pF | +/-10ppm |
Q24FA20H0003100 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 9pF | +/-10ppm |
Q24FA20H0003600 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 11.5pF | +/-10ppm |
Q24FA20H0003800 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 12pF | +/-10ppm |
Q24FA20H0003900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 9pF | -9/+11ppm |
Q24FA20H0004400 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-10ppm |
Q24FA20H0004700 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 8.5pF | +/-15ppm |
Q24FA20H0005000 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 16pF | +/-10ppm |
Q24FA20H0005100 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 12pF | +/-10ppm |
Q24FA20H0005200 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 9pF | +/-10ppm |
Q24FA20H0005300 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-20ppm |
Q24FA20H0005400 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 12pF | +/-30ppm |
Q24FA20H0005900 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 6pF | +/-10ppm |
Q24FA20H0006600 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-30ppm |
Q24FA20H0006900 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 10pF | +/-10ppm |
Q24FA20H0007000 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 8pF | +/-10ppm |
Q24FA20H0007300 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 10pF | +/-10ppm |
Q24FA20H0070100 | 2.5x2x0.55mm | FA-20H | 38.400000MHz | 10pF | +/-10ppm |
Q24FA20H0070400 | 2.5x2x0.55mm | FA-20H | 14.318000MHz | 20pF | +/-20ppm |
Q24FA20H0070600 | 2.5x2x0.55mm | FA-20H | 20.000000MHz | 9pF | +/-10ppm |
Q24FA20H0072000 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 12pF | +/-20ppm |
Q24FA20H0072100 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 12pF | +/-10ppm |
Q24FA20H0072200 | 2.5x2x0.55mm | FA-20H | 14.745600MHz | 10pF | +/-30ppm |
Q24FA20H0072700 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 9pF | +/-10ppm |
Q24FA20H0073500 | 2.5x2x0.55mm | FA-20H | 30.000000MHz | 7pF | +/-30ppm |
Q24FA20H0073600 | 2.5x2x0.55mm | FA-20H | 27.120000MHz | 10pF | +/-10ppm |
Q24FA20H0074200 | 2.5x2x0.55mm | FA-20H | 19.200000MHz | 16pF | +/-30ppm |
Q24FA20H0074300 | 2.5x2x0.55mm | FA-20H | 20.000000MHz | 10pF | +/-20ppm |
Q24FA20H0075300 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 15pF | +/-20ppm |
Q24FA20H0075600 | 2.5x2x0.55mm | FA-20H | 13.333000MHz | 12pF | +/-30ppm |
Q24FA20H0075900 | 2.5x2x0.55mm | FA-20H | 19.200000MHz | 12pF | +/-30ppm |
Q24FA20H0076300 | 2.5x2x0.55mm | FA-20H | 19.200000MHz | 7pF | +/-10ppm |
Q24FA20H0077400 | 2.5x2x0.55mm | FA-20H | 19.200000MHz | 10pF | +/-20ppm |
Q24FA20H0078800 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 7pF | +/-10ppm |
Q24FA20H0078900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 9pF | +/-10ppm |
Q24FA20H0079300 | 2.5x2x0.55mm | FA-20H | 33.333330MHz | 8pF | +/-20ppm |
Q24FA20H0079600 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 6pF | +/-10ppm |
Q24FA20H0081200 | 2.5x2x0.55mm | FA-20H | 33.868000MHz | 12pF | +/-20ppm |
Q24FA20H0081600 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 8pF | +/-30ppm |
Q24FA20H0082000 | 2.5x2x0.55mm | FA-20H | 14.745600MHz | 7pF | +/-20ppm |
Q24FA20H0082600 | 2.5x2x0.55mm | FA-20H | 38.400000MHz | 8pF | +/-10ppm |
小型贴片石英晶振主要采用了,先进的晶片的抛光工艺技术,是晶体行业中石英晶片研磨技术中表面处理的最高技术,最终使晶片表面更光洁,平行度及平面度更好,大大的降低谐振电阻,使精度得到了很大的提升。改变了传统的生产工艺,使产品在各项参数得到了很大的改良,外观尺寸具有薄型表面贴片型石英晶体谐振器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品。
