FA-238耐高温晶振Q22FA2380175400特别适用于汽车电子应用
来源:http://www.taiheth.com 作者:泰河盛电子 2022年09月23
近几年互联网高速发展,随着5G时代的到来,智能汽车的发展也越发的迅速。汽车电子对晶振的要求比消费类的科技数码产品高的多,特别是耐高温这一块,汽车电子中的晶振最好能在高温和低温状态下正常工作。

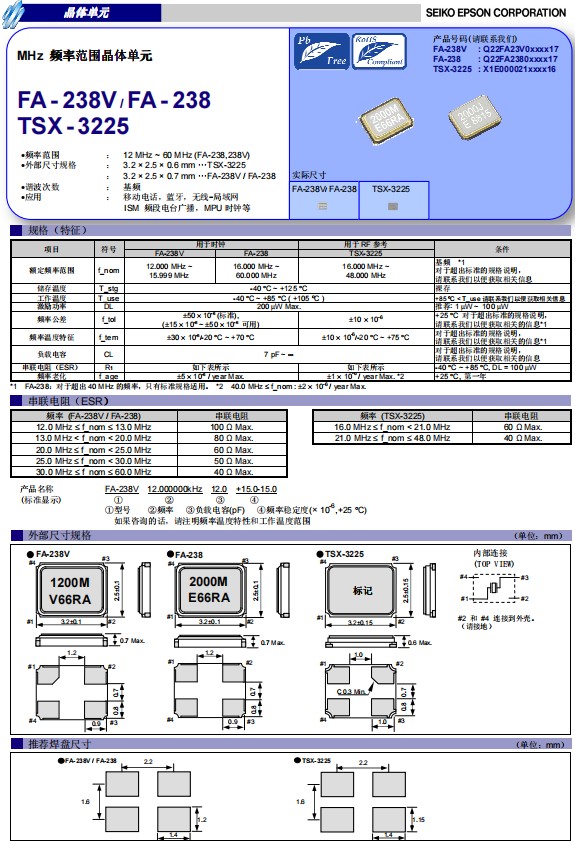

日本爱普生晶振FA-238是一款小体积晶振尺寸3.2x2.5mm石英晶体谐振器,无源晶振,四脚贴片晶振,频率范围12MHz至60MHz,可在在-40℃至+85℃(+105℃)温度内稳定工作,小体积轻薄型3225mm体积贴片晶振满足汽车在高温和低温条件下都能正常工作,该产品耐高温晶振本身具有耐热、耐振、耐冲击等优良的耐环境特性,满足无铅焊接的高温回流温度曲线要求,符合AEC-Q200标准,特别适用于汽车电子设备应用。
FA-238耐高温晶振Q22FA2380175400特别适用于汽车电子应用,Q22FA2380182700,无源晶振
FA-238耐高温晶振Q22FA2380175400特别适用于汽车电子应用,Q22FA2380182700,无源晶振
为了实现人与汽车系统自由的交互,并提供实时的信息互动、支付、交通、天气等功能,汽车对车规级晶振的依赖只会越来越强。汽车系统中所用的晶振包括音响、蓝牙、雷达、时钟、显示屏等等不下5处,车载音响中用到的12M或者是16M、26M贴片晶振,时钟上到的是32.768khz晶振,倒车雷达中也有用到晶振,像3225封装晶振16M、26M、32M都是雷达中比较常用的。
日本爱普生晶振FA-238是一款小体积晶振尺寸3.2x2.5mm石英晶体谐振器,无源晶振,四脚贴片晶振,频率范围12MHz至60MHz,可在在-40℃至+85℃(+105℃)温度内稳定工作,小体积轻薄型3225mm体积贴片晶振满足汽车在高温和低温条件下都能正常工作,该产品耐高温晶振本身具有耐热、耐振、耐冲击等优良的耐环境特性,满足无铅焊接的高温回流温度曲线要求,符合AEC-Q200标准,特别适用于汽车电子设备应用。
FA-238耐高温晶振Q22FA2380175400特别适用于汽车电子应用,Q22FA2380182700,无源晶振
产品编码 | 无源晶振 | 型号 | 频率 | 负载电容 | 精度 |
Q22FA2380000100 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12pF | +/-50ppm |
Q22FA2380000200 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 18pF | +/-50ppm |
Q22FA2380001100 | 3.2x2.5x0.7mm | FA-238 | 16.934400MHz | 10pF | +/-50ppm |
Q22FA2380001300 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 10pF | +/-50ppm |
Q22FA2380002200 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 12pF | +/-50ppm |
Q22FA2380002800 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 18pF | +/-50ppm |
Q22FA2380003500 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12pF | +/-30ppm |
Q22FA2380004100 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 20pF | +/-50ppm |
Q22FA2380004400 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 7pF | +/-50ppm |
Q22FA2380004700 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 7pF | +/-50ppm |
Q22FA2380004800 | 3.2x2.5x0.7mm | FA-238 | 49.152000MHz | 12pF | +/-50ppm |
Q22FA2380006300 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 12pF | +/-50ppm |
Q22FA2380006500 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 12pF | +/-50ppm |
Q22FA2380007500 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 12pF | +/-50ppm |
Q22FA2380007600 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 10pF | +/-50ppm |
Q22FA2380007800 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 18pF | +/-50ppm |
Q22FA2380007900 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 10pF | +/-50ppm |
Q22FA2380008500 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 12pF | +/-50ppm |
Q22FA2380008800 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 12pF | +/-30ppm |
Q22FA2380008900 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 16pF | +/-50ppm |
Q22FA2380009100 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 20pF | +/-50ppm |
Q22FA2380009200 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 20pF | +/-50ppm |
Q22FA2380009300 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 12pF | +/-50ppm |
Q22FA2380009500 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 12pF | +/-50ppm |
Q22FA2380172400 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 18pF | +/-30ppm |
Q22FA2380172600 | 3.2x2.5x0.7mm | FA-238 | 40.000000MHz | 9pF | +/-20ppm |
Q22FA2380173500 | 3.2x2.5x0.7mm | FA-238 | 49.152000MHz | 10pF | +/-20ppm |
Q22FA2380174900 | 3.2x2.5x0.7mm | FA-238 | 40.000000MHz | 16pF | +/-50ppm |
Q22FA2380175200 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 19pF | +/-20ppm |
Q22FA2380175400 | 3.2x2.5x0.7mm | FA-238 | 26.000000MHz | 18pF | +/-30ppm |
Q22FA2380175500 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 8pF | +/-30ppm |
Q22FA2380176800 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 20pF | +/-50ppm |
Q22FA2380177200 | 3.2x2.5x0.7mm | FA-238 | 32.000000MHz | 8pF | +/-50ppm |
Q22FA2380177700 | 3.2x2.5x0.7mm | FA-238 | 16.384000MHz | 8pF | +/-20ppm |
Q22FA2380179400 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 10pF | +/-50ppm |
Q22FA2380179700 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 8pF | +/-20ppm |
Q22FA2380180000 | 3.2x2.5x0.7mm | FA-238 | 19.200000MHz | 7pF | +/-20ppm |
Q22FA2380180800 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 12pF | +/-20ppm |
Q22FA2380181000 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 8pF | +/-50ppm |
Q22FA2380181200 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 16pF | +/-30ppm |
Q22FA2380181500 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 10pF | +/-50ppm |
Q22FA2380181600 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 10pF | +/-50ppm |
Q22FA2380181700 | 3.2x2.5x0.7mm | FA-238 | 24.056478MHz | 7pF | +/-50ppm |
Q22FA2380181900 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 16pF | +/-30ppm |
Q22FA2380182100 | 3.2x2.5x0.7mm | FA-238 | 16.384000MHz | 18pF | +/-30ppm |
Q22FA2380182200 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 7.5pF | +/-50ppm |
Q22FA2380182300 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 7.5pF | +/-15ppm |
Q22FA2380182400 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 16pF | +/-30ppm |
Q22FA2380182700 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 8pF | +/-30ppm |
Q22FA2380183000 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 8pF | +/-20ppm |
Q22FA2380183100 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 8pF | +/-20ppm |
Q22FA2380183200 | 3.2x2.5x0.7mm | FA-238 | 33.470000MHz | 6pF | +/-15ppm |
Q22FA2380183300 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 9pF | +/-30ppm |
Q22FA2380183400 | 3.2x2.5x0.7mm | FA-238 | 16.934400MHz | 8pF | +/-50ppm |
Q22FA2380183500 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 16pF | +/-15ppm |
为了实现人与汽车系统自由的交互,并提供实时的信息互动、支付、交通、天气等功能,汽车对车规级晶振的依赖只会越来越强。汽车系统中所用的晶振包括音响、蓝牙、雷达、时钟、显示屏等等不下5处,车载音响中用到的12M或者是16M、26M贴片晶振,时钟上到的是32.768khz晶振,倒车雷达中也有用到晶振,像3225封装晶振16M、26M、32M都是雷达中比较常用的。
