台湾TXC晶振公司新推出微型恒温晶体振荡器
来源:http://www.taiheth.com 作者:泰河电子晶振 2018年09月06

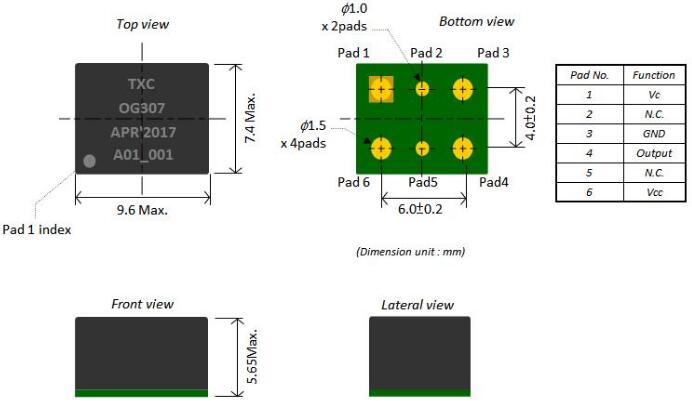

台湾TXC晶振公司新开发出全球最小尺寸恒温晶体振荡器,封装尺寸为9.7*7.5*5.5mm,它结合了微型烤箱特殊的小型化结构设计和高稳定性的SC切割晶体以及集成电路技术.
Taiwan's TXC Crystal has newly developed the world's smallest oven crystal oscillator with a package size of 9.7*7.5*5.5mm. It combines the special miniaturized structure design of the micro oven with high stability SC-cut crystal and integrated circuit technology.

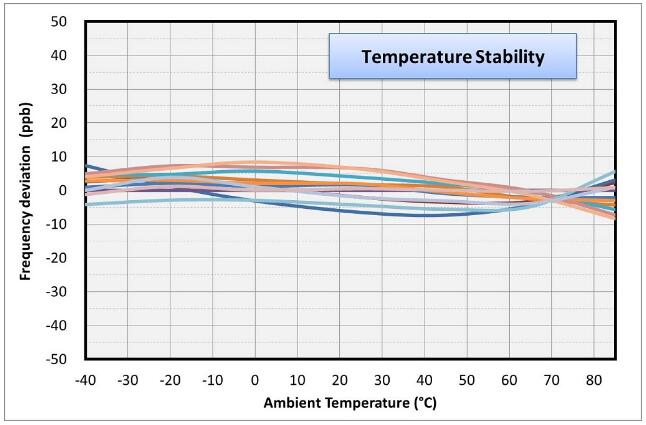

与传统的OCXO恒温晶振相比,可实现更出色的温度稳定性,低相位噪声。以及对气流环境的高频稳定性与卓越的可靠性。
Better temperature stability and low phase noise compared to traditional OCXO crystal. And high frequency stability and excellent reliability for airflow environments.

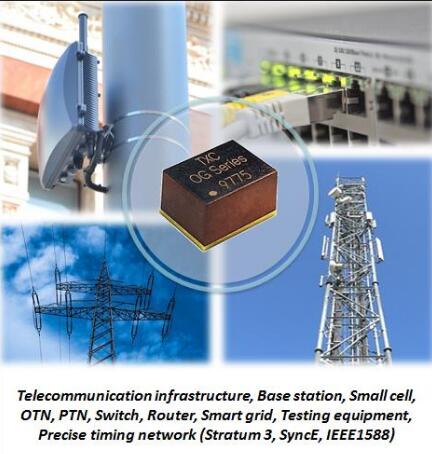

对于时间同步应用可提供良好的高稳定低相噪时钟解决方案,可大幅度降低组件的功耗,并缩小电路设计的空间。
For time synchronization applications, it provides a good high stability and low phase noise clock solution, which can greatly reduce the power consumption of components and reduce the space of circuit design.
Taiwan's TXC Crystal has newly developed the world's smallest oven crystal oscillator with a package size of 9.7*7.5*5.5mm. It combines the special miniaturized structure design of the micro oven with high stability SC-cut crystal and integrated circuit technology.
特征 | 优点 |
SC切割水晶单元 |
(a)低相位噪声 (b)低老化性能 (c)优异的短期稳定性 |
小型化烤箱结构 |
(a)高温稳定性 (b)对气流环境的高频稳定性 |
高度集成的电路技术 | 与传统的分立式OCXO相比,基于ASIC,卓越的可靠性 |
小包装尺寸 |
(a)低功耗 (b)节省布局空间 |
与传统的OCXO恒温晶振相比,可实现更出色的温度稳定性,低相位噪声。以及对气流环境的高频稳定性与卓越的可靠性。
Better temperature stability and low phase noise compared to traditional OCXO crystal. And high frequency stability and excellent reliability for airflow environments.
项目/参数 | OG系列 | |
输出类型 | CMOS / | 截断正弦波 |
频率范围 | 10,12.8,19.2,20,30.72,40 MHz | |
频率稳定性 | ±10~±50ppb的 | |
工作电压 | 3.3V | |
目前的消费 | 稳定<0.5W | |
工作温度范围 | - 40~85℃ | |
存储温度范围 | - 55~125℃ | |
短期稳定性 | 艾伦偏差<5.0E-11 / s | |
老龄化表现 |
<±500ppb第一年 <±2.0ppm 20年 |
For time synchronization applications, it provides a good high stability and low phase noise clock solution, which can greatly reduce the power consumption of components and reduce the space of circuit design.
