爱普生晶振编码Q24FA20H0015000专用于移动电话应用
来源:http://www.taiheth.com 作者:泰河盛电子 2022年10月14
爱普生每一款晶振都有它自己的身份编码,爱普生晶振型号FA-20H是爱普生晶振MHZ系列的晶振,26.000000MHZ的频率,负载电容为8PF,30PPM的常用精度,可在-20℃至+85℃的范围内工作,储存温度可达-40℃至+125℃,这些主要的晶振参数让这颗爱普生晶振FA-20H有了一个身份证号码,也就是爱普生晶振编码Q24FA20H0015000,但是同样的26.000000MHZ,,工作温度范围以及储存温度都是一样的,却只因精度更高了一点点,就让这款FA-20H晶振的爱普生晶振编码发生了改变,10PPM的高精度的爱普生晶振编码为Q24FA20H0013700,编码如下表:
爱普生晶振编码Q24FA20H0015000专用于移动电话应用,Q24FA20H0013700,无源晶振
爱普生晶振编码Q24FA20H0015000专用于移动电话应用,Q24FA20H0013700,无源晶振

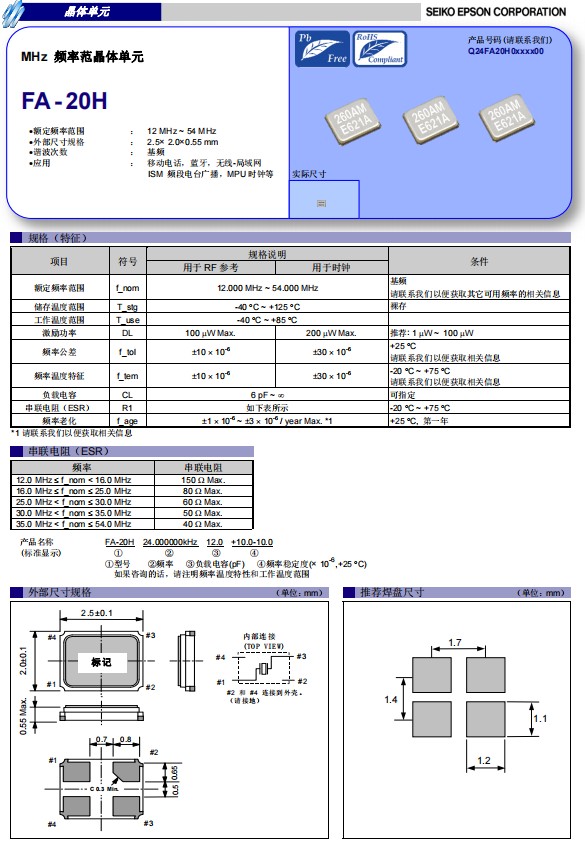

日本进口爱普生晶振热销型号FA-20H,是一款小体积晶振尺寸2.5x2.0mm无源晶振,石英晶体谐振器,四脚贴片晶振,频率范围12MHz至54MHz,可以在-40°C至+85°C的温度内稳定工作,具有超小型,轻薄型,稳定性好,耐热及耐环境特性,FA-20H石英晶体谐振器主要用于移动电话,智能手机,蓝牙,无线-局域网,ISM频段电台广播,MPU时钟等,因此也有人使用手机晶振、蓝牙晶振、时钟晶振这种词称呼这类小尺寸贴片晶振。
爱普生晶振编码Q24FA20H0015000专用于移动电话应用,Q24FA20H0013700,无源晶振
产品编码 | 尺寸 | 型号 | 频率 | 负载电容 | 精度 | 频率公差 | 工作温度 |
Q24FA20H0007400 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 10.5pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0007700 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0007900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0008500 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0008600 | 2.5x2x0.55mm | FA-20H | 24.576000MHz | 8pF | +/-15ppm | +/-15ppm | -20to+75°C |
Q24FA20H0008700 | 2.5x2x0.55mm | FA-20H | 30.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+70°C |
Q24FA20H0009200 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q24FA20H0009300 | 2.5x2x0.55mm | FA-20H | 12.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q24FA20H0009500 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 7pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0009700 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0010000 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 20pF | +/-20ppm | +/-20ppm | -20to+75°C |
Q24FA20H0010600 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0011400 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q24FA20H0011500 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q24FA20H0011600 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 18pF | +/-30ppm | +/-30ppm | -30to+85°C |
Q24FA20H0011800 | 2.5x2x0.55mm | FA-20H | 27.120000MHz | 18pF | +/-10ppm | +/-20ppm | -20to+70°C |
Q24FA20H0012200 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-10ppm | +/-22ppm | -40to+85°C |
Q24FA20H0012600 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 15pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0012800 | 2.5x2x0.55mm | FA-20H | 20.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0013200 | 2.5x2x0.55mm | FA-20H | 24.576000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0013700 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+80°C |
Q24FA20H0013900 | 2.5x2x0.55mm | FA-20H | 30.000000MHz | 8pF | +/-30ppm | +/-30ppm | -40to+85°C |
Q24FA20H0014700 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q24FA20H0015000 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+85°C |
Q24FA20H0015100 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0015200 | 2.5x2x0.55mm | FA-20H | 12.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q24FA20H0015300 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 12pF | +/-10ppm | +/-15ppm | -30to+85°C |
Q24FA20H0015500 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 8pF | +/-10ppm | +/-15ppm | -30to+85°C |
Q24FA20H0015600 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 7pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0016600 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 18pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0016900 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0017200 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 20pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q24FA20H0017500 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q24FA20H0017600 | 2.5x2x0.55mm | FA-20H | 20.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0019300 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q24FA20H0019600 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0020100 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0020200 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 14pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q24FA20H0020800 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 13pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0020900 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q24FA20H0021400 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q24FA20H0022300 | 2.5x2x0.55mm | FA-20H | 30.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q24FA20H0022500 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 8pF | +/-10ppm | +/-12ppm | -20to+70°C |
Q24FA20H0022800 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 10pF | +/-30ppm | +/-30ppm | -30to+85°C |
Q24FA20H0022900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 6pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0023200 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
Q24FA20H0023300 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 12pF | +/-10ppm | +/-12ppm | -20to+85°C |
Q24FA20H0023800 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 12pF | +/-10ppm | +/-19ppm | -40to+85°C |
Q24FA20H0024100 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 12pF | +/-30ppm | +/-50ppm | -20to+70°C |
Q24FA20H0024200 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0024700 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 16pF | +/-10ppm | +/-30ppm | -40to+85°C |
Q24FA20H0024900 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 7pF | +/-30ppm | +/-20ppm | -20to+70°C |
Q24FA20H0025100 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 10pF | +/-25ppm | +/-25ppm | -20to+75°C |
Q24FA20H0026000 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0026600 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 10pF | +/-30ppm | +/-30ppm | -40to+85°C |
Q24FA20H0027000 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 10pF | +/-30ppm | +/-30ppm | -30to+85°C |
Q24FA20H0027100 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 10pF | +/-20ppm | +/-14ppm | -30to+70°C |
Q24FA20H0027200 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 18pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q24FA20H0027600 | 2.5x2x0.55mm | FA-20H | 27.120000MHz | 10pF | +/-15ppm | +/-15ppm | -20to+75°C |
Q24FA20H0027900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 12pF | +/-10ppm | +/-12ppm | -20to+70°C |
Q24FA20H0028700 | 2.5x2x0.55mm | FA-20H | 30.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
Q24FA20H0028900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 9pF | +/-10ppm | +/-18ppm | -40to+85°C |
Q24FA20H0029800 | 2.5x2x0.55mm | FA-20H | 20.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+70°C |
Q24FA20H0030800 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q24FA20H0031500 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 12pF | +/-10ppm | +/-18ppm | -40to+85°C |
Q24FA20H0032100 | 2.5x2x0.55mm | FA-20H | 27.120000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
Q24FA20H0032200 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 10pF | +/-15ppm | +/-15ppm | -30to+85°C |
Q24FA20H0032500 | 2.5x2x0.55mm | FA-20H | 24.576000MHz | 18pF | +/-30ppm | +/-10ppm | -20to+70°C |
Q24FA20H0032600 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 15pF | +/-20ppm | +/-30ppm | -20to+85°C |
Q24FA20H0033100 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 12pF | +/-30ppm | +/-30ppm | -40to+85°C |
Q24FA20H0033200 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 18pF | +/-30ppm | +/-30ppm | -20to+75°C |
日本进口爱普生晶振热销型号FA-20H,是一款小体积晶振尺寸2.5x2.0mm无源晶振,石英晶体谐振器,四脚贴片晶振,频率范围12MHz至54MHz,可以在-40°C至+85°C的温度内稳定工作,具有超小型,轻薄型,稳定性好,耐热及耐环境特性,FA-20H石英晶体谐振器主要用于移动电话,智能手机,蓝牙,无线-局域网,ISM频段电台广播,MPU时钟等,因此也有人使用手机晶振、蓝牙晶振、时钟晶振这种词称呼这类小尺寸贴片晶振。
