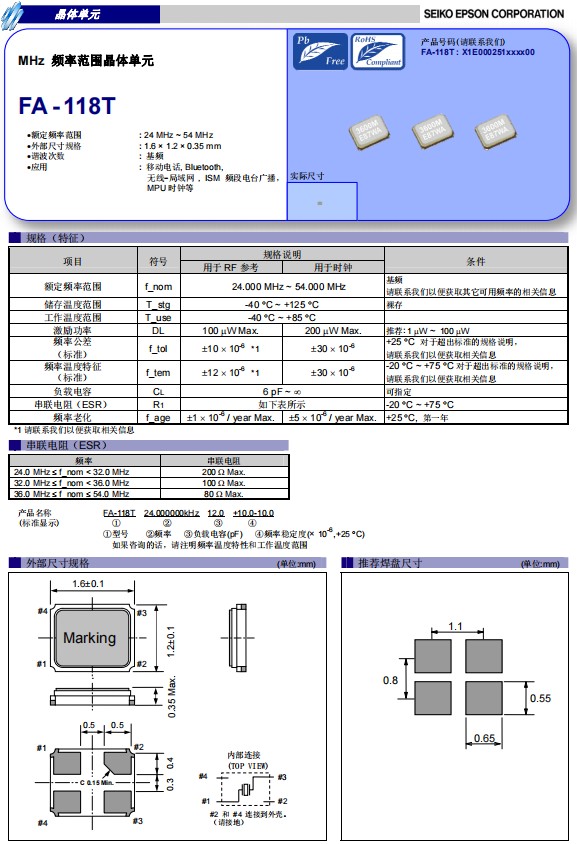

随着高科技产品的随身携带且使用方便让电路板中的各路元器件都使出浑身解数，力求越来越小的同时还要越来越精密，因此小型化的贴片尺寸成了很多厂家的需要考虑条件。而爱普生推出的这款1612无源晶振FA-118T，它是一款长1.6mm*宽*1.2mm*高0.35mm的石英晶体谐振器，是当今很受欢迎的小尺寸晶振，随着民生用市场中可无线通信产品的发展和迅速普及，搭载近距离无线通信Bluetooth功能的产品逐渐增加.FA-118T晶振被广泛应用小型便捷式设备，可穿戴设备，智能手机，平板电脑，无线电话，汽车电子，数码产品等。

爱普生FA-118T无源晶振X1E000251006900适用于无线通讯系统,X1E000251012600,石英晶体谐振器

产品编码	尺寸	型号	频率	负载电容	频率公差
X1E000251000900	1.6x1.2x0.35mm	FA-118T	27.120000MHz	10pF	+/-30ppm
X1E000251001100	1.6x1.2x0.35mm	FA-118T	26.000000MHz	8pF	+/-10ppm
X1E000251001400	1.6x1.2x0.35mm	FA-118T	26.000000MHz	9pF	+/-10ppm
X1E000251001600	1.6x1.2x0.35mm	FA-118T	37.400000MHz	16pF	+/-10ppm
X1E000251003100	1.6x1.2x0.35mm	FA-118T	37.400000MHz	16pF	+/-7ppm
X1E000251003200	1.6x1.2x0.35mm	FA-118T	40.000000MHz	10pF	+/-10ppm
X1E000251003300	1.6x1.2x0.35mm	FA-118T	25.000000MHz	10pF	+/-30ppm
X1E000251003400	1.6x1.2x0.35mm	FA-118T	25.000000MHz	9pF	+/-30ppm
X1E000251003500	1.6x1.2x0.35mm	FA-118T	30.000000MHz	8pF	+/-20ppm
X1E000251004600	1.6x1.2x0.35mm	FA-118T	24.000000MHz	12pF	+/-10ppm
X1E000251005000	1.6x1.2x0.35mm	FA-118T	32.000000MHz	9pF	+/-10ppm
X1E000251005600	1.6x1.2x0.35mm	FA-118T	52.000000MHz	9pF	+/-15ppm
X1E000251005700	1.6x1.2x0.35mm	FA-118T	25.000000MHz	7pF	+/-30ppm
X1E000251005900	1.6x1.2x0.35mm	FA-118T	32.000000MHz	8pF	+/-10ppm
X1E000251006000	1.6x1.2x0.35mm	FA-118T	48.000000MHz	10pF	+/-30ppm
X1E000251006400	1.6x1.2x0.35mm	FA-118T	26.000000MHz	12pF	+/-10ppm
X1E000251006500	1.6x1.2x0.35mm	FA-118T	32.000000MHz	10pF	+/-10ppm
X1E000251006800	1.6x1.2x0.35mm	FA-118T	24.000000MHz	8pF	+/-30ppm
X1E000251006900	1.6x1.2x0.35mm	FA-118T	24.000000MHz	10pF	+/-30ppm
X1E000251007100	1.6x1.2x0.35mm	FA-118T	40.000000MHz	12pF	+/-8ppm
X1E000251007500	1.6x1.2x0.35mm	FA-118T	26.000000MHz	8pF	+/-10ppm
X1E000251007700	1.6x1.2x0.35mm	FA-118T	25.000000MHz	9pF	+/-10ppm
X1E000251007800	1.6x1.2x0.35mm	FA-118T	40.000000MHz	7pF	+/-10ppm

X1E000251007900	1.6x1.2x0.35mm	FA-118T	32.000000MHz	9pF	+/-10ppm
X1E000251008000	1.6x1.2x0.35mm	FA-118T	32.000000MHz	6pF	+/-10ppm
X1E000251008600	1.6x1.2x0.35mm	FA-118T	32.000000MHz	8pF	+/-20ppm
X1E000251009900	1.6x1.2x0.35mm	FA-118T	48.000000MHz	6pF	+/-30ppm
X1E000251010200	1.6x1.2x0.35mm	FA-118T	50.000000MHz	8pF	+/-30ppm
X1E000251010400	1.6x1.2x0.35mm	FA-118T	32.000000MHz	10pF	+/-20ppm
X1E000251011100	1.6x1.2x0.35mm	FA-118T	25.000000MHz	10pF	+/-50ppm
X1E000251011300	1.6x1.2x0.35mm	FA-118T	25.000000MHz	8pF	+/-10ppm
X1E000251012100	1.6x1.2x0.35mm	FA-118T	24.000000MHz	8pF	+/-10ppm
X1E000251012600	1.6x1.2x0.35mm	FA-118T	24.000000MHz	7pF	+/-30ppm
X1E000251013400	1.6x1.2x0.35mm	FA-118T	32.000000MHz	8pF	+/-10ppm
X1E000251013800	1.6x1.2x0.35mm	FA-118T	32.000000MHz	6pF	+/-10ppm
X1E000251014100	1.6x1.2x0.35mm	FA-118T	32.000000MHz	8pF	+/-20ppm
X1E000251014400	1.6x1.2x0.35mm	FA-118T	24.000000MHz	20pF	+/-30ppm
X1E000251015000	1.6x1.2x0.35mm	FA-118T	38.400000MHz	20pF	+/-10ppm
X1E000251015200	1.6x1.2x0.35mm	FA-118T	48.000000MHz	8pF	+/-10ppm
X1E000251015300	1.6x1.2x0.35mm	FA-118T	24.000000MHz	8pF	+/-10ppm
X1E000251015500	1.6x1.2x0.35mm	FA-118T	32.000000MHz	9pF	+/-30ppm
X1E000251015800	1.6x1.2x0.35mm	FA-118T	50.000000MHz	12pF	+/-10ppm
X1E000251016100	1.6x1.2x0.35mm	FA-118T	37.400000MHz	8pF	+/-10ppm
X1E000251016600	1.6x1.2x0.35mm	FA-118T	32.000000MHz	10pF	+/-10ppm
X1E000251019000	1.6x1.2x0.35mm	FA-118T	40.000000MHz	12pF	+/-10ppm
X1E000251019700	1.6x1.2x0.35mm	FA-118T	32.000000MHz	6pF	+/-10ppm
X1E000251020100	1.6x1.2x0.35mm	FA-118T	38.400000MHz	8pF	+/-10ppm
X1E000251021200	1.6x1.2x0.35mm	FA-118T	40.000000MHz	6pF	+/-10ppm
X1E000251021500	1.6x1.2x0.35mm	FA-118T	32.000000MHz	6pF	+/-20ppm
X1E000251021900	1.6x1.2x0.35mm	FA-118T	40.000000MHz	10pF	+/-10ppm

爱普生FA-118T无源晶振X1E000251006900适用于无线通讯系统,X1E000251012600,石英晶体谐振器

1612mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接（产品无铅对应）,为无铅产品.
