5G将成倍增加网络通信流量。5G通信网络需要高速和宽带宽，同时保持噪声水平最小。这可以用高频来实现，用于通信设备的低抖动参考时钟。用于80公里以上400 Gbps / 800 Gbps传输的光通信模块需要小尺寸、20×10-6稳定性参考时钟。

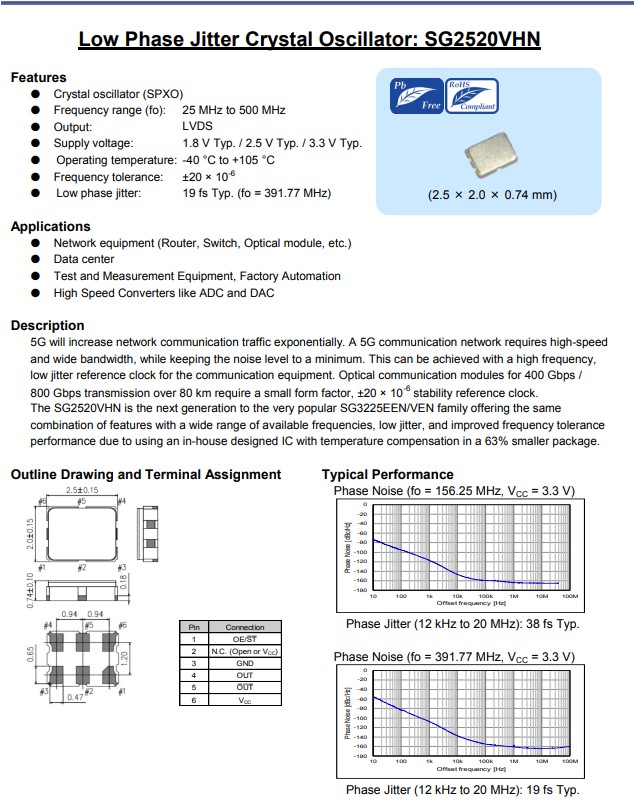

爱普生晶振SG2520VHN是非常受欢迎的SG3225EEN/VEN系列的下一代产品，提供相同的功能组合，具有广泛的可用频率、低抖动和更高的频率容差性能，因为它采用了内部设计的温度补偿IC，小体积晶振规格2.5x2.0mm封装尺寸减小了63%。支持LVDS输出差分晶振，电源电压1.8V至3.3V，频率范围25MHz至500MHz任意一频点具有低电源电压，满足产品低消耗电流特点。被广泛用于通讯设备,机顶盒，光端机，安防设备及各种频率控制设备上.
SG2520VHN差分晶振X1G005941001015适用于5G通信网络设备,X1G005941000415,有源晶振

产品编码	型号	频率	贴片晶振	输出波	电源电压	工作温度
X1G005941000115	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005941000215	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005941000315	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 105°C
X1G005941000415	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C
X1G005941000515	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005941000615	SG2520VHN	155.520000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005941000715	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C
X1G005941000815	SG2520VHN	174.703000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005941000915	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005941001015	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005941001115	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C
