百利通亚陶科技成立于2000年，为信息与通讯产业关键的石英晶振，贴片晶振，有源晶振，32.768k晶振，石英晶体振荡器，温补晶振等产品等元器件制造业者。2001年获经济部核发「新兴重要策略性产业」核准函，为政府重点扶植之高科技产业；本公司为国内第一家通过ISO9001国际质量认证之专业石英晶体振荡器生产厂商。

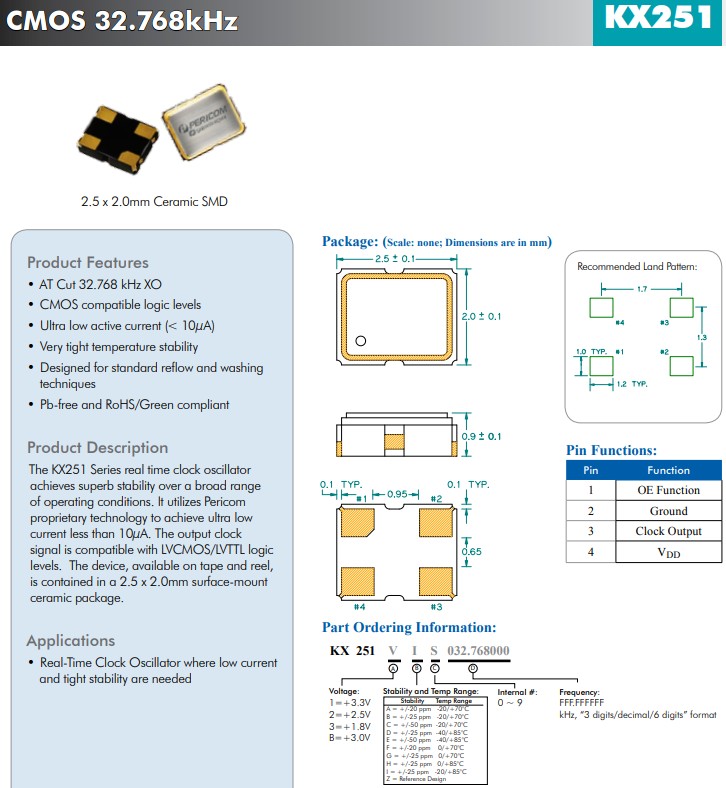

百利通亚陶晶振KX251系列，编码KX2513G0032.768000，是一款实时时钟晶体振荡器，在广泛的工作条件下实现了卓越的稳定性，电源电压1.8V/2.5V/3.3V，频率：32.768kHz，CMOS晶体振荡器，它利用 Pericom专有技术实现小于10μA的超低电流。输出时钟信号与 LVCMOS/LVTTL逻辑电平兼容。该器件采用卷带包装，小体积晶振尺寸采用2.5x2.0mm表面贴装陶瓷封装。
百利通亚陶晶振KX251系列时钟晶体振荡器非常适用于钟表电子,KX2513G0032.768000,32.768k晶振

Manufacturer Part Number原厂代码	Manufacturer品牌	Series型号	Frequency 频率	Frequency Stability频率稳定度	Operating Temperature 工作温度
KD3270037	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270037	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270037	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KX2513G0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 70°C
KX3211A0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX3211A0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX3211A0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX3211D0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KX2013B0032.768000	Diodes晶振	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2013D0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KX2511A0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX2513D0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270008	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270008	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270008	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270046	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270046	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270046	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270031	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270031	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270031	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270045	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270045	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270045	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270049	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270049	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270049	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C

百利通亚陶晶振KX251系列时钟晶体振荡器非常适用于钟表电子,KX2513G0032.768000,32.768k晶振
特征：

AT Cut 32.768k晶体振荡器

CMOS兼容逻辑电平

超低有功电流（< 10μA）

非常严格的温度稳定性

专为标准回流和清洗技术而设计

无铅且符合 RoHS/Green 标准

应用：需要低电流和高度稳定性的实时时钟振荡器

输出逻辑	CMOS
电源电压 (V)	1.8,2.5,3.3
包装尺寸（毫米）	2.5x2.0x0.9
包装类型	陶瓷缝
稳定性 (PPM)	20到50
产品系列	KX251
频率范围 (MHz)	32.768KHZ
抖动均方根 (ps)	<1 PS
垫	4
家庭	千赫XO

KK3270052	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270052	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270052	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270051	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270051	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270051	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KX2132709Z	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2132709Z	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2132709Z	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KJ3270004Z	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±50ppm	-20°C ~ 70°C
KJ3270004Z	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±50ppm	-20°C ~ 70°C
KJ3270004Z	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270040	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270040	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270040	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270046Z	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270046Z	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270046Z	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270050	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270050	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270050	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KM3270004	Diodes Crystal	SaRonix-eCera™ KM	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KN3270028	Diodes Crystal	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270032	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270031	Diodes Crystal	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270042	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270022	Diodes Crystal	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270036	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270032	Diodes Crystal	SaRonix-eCera™ KN	32.768k	±50ppm	-40°C ~ 85°C
KN3270033	Diodes Crystal	SaRonix-eCera™ KN	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270034	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KX3211B0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX3211C0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX3211E0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C

百利通亚陶晶振KX251系列时钟晶体振荡器非常适用于钟表电子,KX2513G0032.768000,32.768k晶振

KX201	1.82.53.3	2.0 x 1.6 x 0.75	陶瓷缝	20~50	KX201	32.768KHZ	<1	4	1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS 晶体振荡器
KX251	1.82.53.3	2.5 x 2.0 x 0.9	陶瓷缝	20~50	KX251	32.768KHZ	<1	4	1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS SMD晶体振荡器
KX31Q	3.32.51.8	3.2 x 2.5	陶瓷缝	20~50	KXQ	32.768KHZ	<1	4	1.8/2.5/3.3V、3.2x2.5mm、超低电流、32.768KHz、汽车级CMOS晶体振荡器
KX321	1.82.53.3	3.2 x 2.5 x 1.0	陶瓷缝	20~50	KX321	32.768KHZ	<1	4	1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS 晶体振荡器
KX501	1.82.53.3	5.0 x 3.2 x 1.2	陶瓷缝	20~50	KX501	32.768KHZ	<1	4	1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS 晶体振荡器
