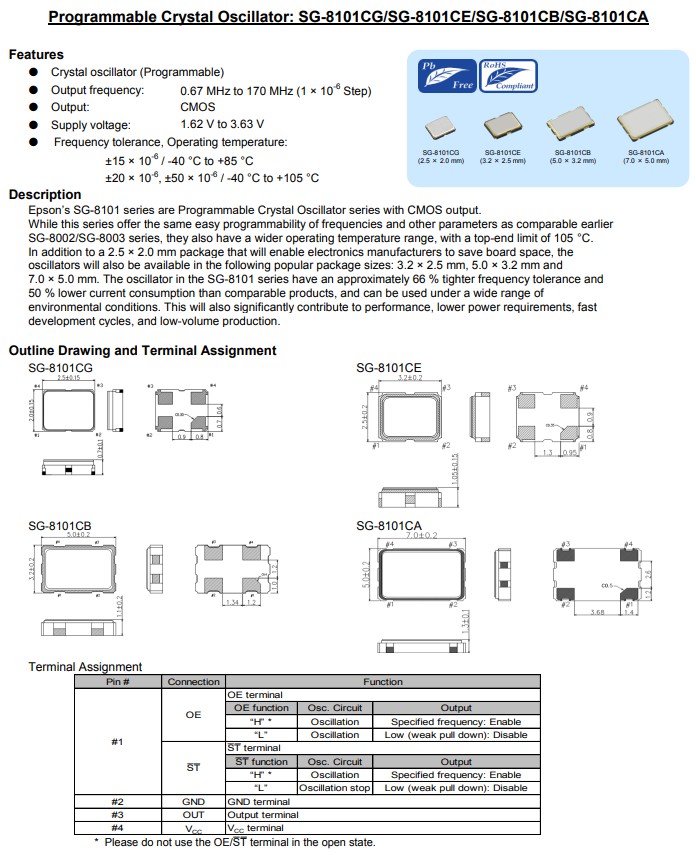

爱普生晶振SG-8101系列是具有CMOS输出的可编程晶振系列。虽然该系列提供了与早期类似的频率和其它参数的同样容易的可编程性 SG-8002/SG-8003系列，它们还具有更宽的工作温度范围，上限为105℃。除了2.5x2.0 mm封装有助于电子制造商节省电路板空间之外，这些振荡器还提供以下常见封装尺寸:3.2×2.5mm、5.0×3.2mm和7.0×5.0mm贴片晶振。SG-8101系列中的振荡器的频率容差约小66% 电流消耗比同类产品低50%，可在各种环境条件下使用。这也将大大有助于提高性能、降低功耗要求、缩短开发周期和实现小批量生产。适用于5G移动通讯、工业控制、消费电子，智能安防，物联网，车载电子，光电技术及各种变频调速设备等通讯设备。

特征：

晶体振荡器(可编程)

输出频率：0.67MHz至170MHz (1x10-6步进)

输出：CMOS有源晶振

电源电压：1.62V至3.63V

频率容差、工作温度：15×10-6/-40℃至+85℃，20 × 10-6、50×10-6/-40℃至+105℃

SG-8101CA可编程晶振X1G005191001300适用于5G移动通讯,X1G005191002700,晶体振荡器

产品编码	频率	进口晶振	尺寸(长宽高)	输出波	电源电压
X1G005191001100	32.507937MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001200	60.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001300	100.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001400	80.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001500	48.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001600	27.500000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001700	22.500000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001800	73.333700MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001900	60.000300MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002000	22.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002100	18.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002200	25.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002300	69.120000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002400	5.560000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002500	66.666000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002600	13.516800MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002700	25.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002800	125.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002900	50.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V

X1G005191008600	36.800000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191008700	19.660800MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191008800	33.330000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191008900	48.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009000	100.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009100	20.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009200	8.192000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009300	125.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009400	12.800000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009500	29.491200MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009600	66.667000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009700	60.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009800	40.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009900	12.500000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010000	2.048000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010100	10.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010200	7.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010300	15.360000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010400	40.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010500	30.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010600	4.915200MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010700	15.360000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010800	33.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V

SG-8101CA可编程晶振X1G005191001300适用于5G移动通讯,X1G005191002700,晶体振荡器
日系的爱普生晶振SG-8101系列，可编程晶振是现在市场被接纳度较高的一个品牌，可支持更高精度15ppm。爱普生注重自主品牌的建设，掌握自主研制，定制，实现全套的晶振工艺技术流程,拥有可编程晶振技术的自主技术专利和产品线，能够为客户提供全国产化晶振解决方案.

SG-8101CA（7.0*5.0*1.3mm）

SG-8101CB（5.0*3.2*1.1mm）

SG-8101CE（3.2*2.5*1.05mm）

SG-8101CG（2.5*2.0*0.7mm）

SG-8101CJA（2.5*2.0*0.7mm）AEC-Q100认证
