超小型2016mm晶振X1G004801003900非常适用于可穿戴设备
来源:http://www.taiheth.com 作者:泰河盛电子 2022年09月20

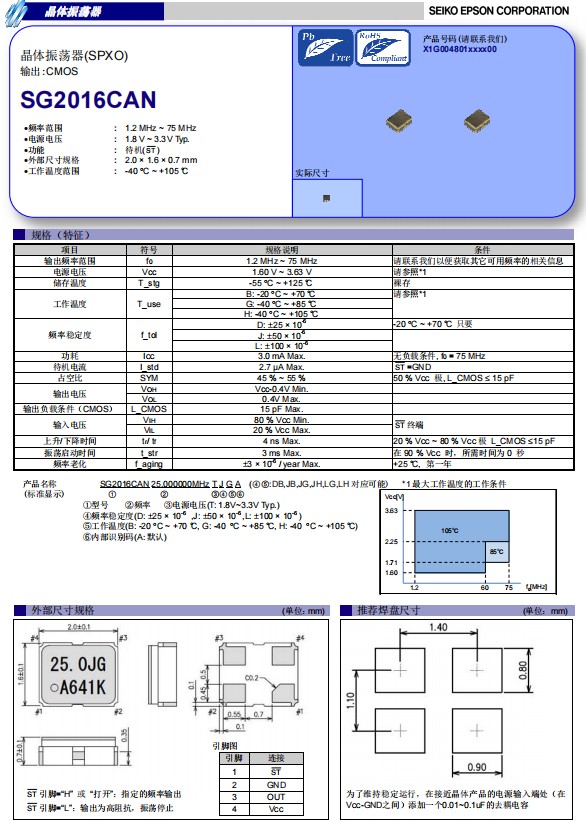

爱普生晶振SG2016CAN,是一款带CMOS输出的简单封装晶体振荡器(SPXO)系列,小体积晶振尺寸2.0x1.6mm,四脚贴片晶振,有源晶振,石英晶体振荡器,频率范围1.2MHz至75MHz,1.8V至3.3V的宽工作电压和宽工作温度范围从-40°C到105°C。这些SPXO具有低电流消耗,高稳定性、超小型,轻薄型、低功耗,低抖动,宽温等优势。 这些SPXO非常适合移动通讯,智能手机,物联网、可穿戴设备、医疗、工业自动化等各种应用。
超小型2016mm晶振X1G004801003900非常适用于可穿戴设备,X1G004801000200,低功耗晶振
超小型2016mm晶振X1G004801003900非常适用于可穿戴设备,X1G004801000200,低功耗晶振
超小型2016mm晶振X1G004801003900非常适用于可穿戴设备,X1G004801000200,低功耗晶振
石英晶振 | 型号 | 频率 | 尺寸 | 输出波 |
X1G004801000200 | SG2016CAN | 24.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801000300 | SG2016CAN | 26.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801000700 | SG2016CAN | 12.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801001200 | SG2016CAN | 25.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801001300 | SG2016CAN | 50.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801001400 | SG2016CAN | 16.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801001800 | SG2016CAN | 20.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801002000 | SG2016CAN | 48.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801002100 | SG2016CAN | 27.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801002400 | SG2016CAN | 25.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801002600 | SG2016CAN | 33.333300MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801002700 | SG2016CAN | 10.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801002800 | SG2016CAN | 50.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801002900 | SG2016CAN | 10.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801003000 | SG2016CAN | 4.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801003100 | SG2016CAN | 24.576000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801003500 | SG2016CAN | 25.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801003600 | SG2016CAN | 40.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801003900 | SG2016CAN | 26.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801004000 | SG2016CAN | 24.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801004400 | SG2016CAN | 12.288000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801004500 | SG2016CAN | 8.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801004600 | SG2016CAN | 8.000000MHz | 2.00x1.60x0.70mm |
CMOS |
X1G004801004900 | SG2016CAN | 4.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005000 | SG2016CAN | 12.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005100 | SG2016CAN | 12.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005200 | SG2016CAN | 12.288000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005300 | SG2016CAN | 12.288000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005400 | SG2016CAN | 14.745600MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005500 | SG2016CAN | 14.745600MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005600 | SG2016CAN | 16.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005700 | SG2016CAN | 20.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005800 | SG2016CAN | 20.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801005900 | SG2016CAN | 24.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006000 | SG2016CAN | 24.576000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006100 | SG2016CAN | 27.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006200 | SG2016CAN | 32.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006300 | SG2016CAN | 32.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006400 | SG2016CAN | 33.330000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006500 | SG2016CAN | 33.330000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006600 | SG2016CAN | 33.333300MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006700 | SG2016CAN | 40.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006800 | SG2016CAN | 48.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801006900 | SG2016CAN | 48.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801007000 | SG2016CAN | 50.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801007100 | SG2016CAN | 72.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801007200 | SG2016CAN | 72.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801007300 | SG2016CAN | 72.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801007600 | SG2016CAN | 32.000000MHz | 2.00x1.60x0.70mm | CMOS |
X1G004801007700 | SG2016CAN | 26.000000MHz | 2.00x1.60x0.70mm | CMOS |
2016mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接(产品无铅对应),为无铅产品.
