LVDS差分晶振X1G005351000200应用于数字通信系统
来源:http://www.taiheth.com 作者:泰河盛电子 2022年10月09
科技发展对差分晶振的使用日益增多,各大晶振品牌纷纷推出差分晶体振荡器,比如我们所熟悉的KDS晶振,京瓷晶振,NDK晶振,爱普生晶振,IDT晶振等知名品牌.我们都知道差分晶振除了有普通晶振有的功能外,最大的不同就是输出的方式是差分信号.

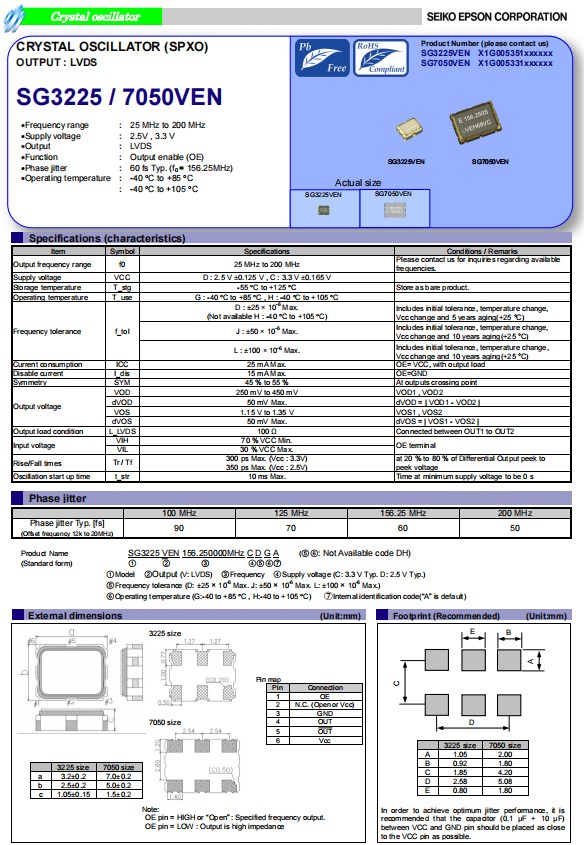

日本进口爱普生晶振SG3225VEN,是一款LVDS差分晶振,小体积晶振尺寸3.2x2.5mm六脚贴片晶振,电源电压2.5V,3.3V,宽频率范围25MHz至200MHz任意一频点具有低电源电压,满足产品低消耗电流特点,该产品具有超小型,轻薄型,低抖动,低功耗,低损耗,低耗能,低相位噪声,低电平等特点,能够轻易识别网络信号以及精确的处理双极信号。SG3225VEN贴片晶振被广泛应用于5G通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表,SAS,光纤通信,10G以太网及各种频率控制设备上。
LVDS差分晶振X1G005351000200应用于数字通信系统,X1G005351001100,3225mm贴片晶振
LVDS差分晶振X1G005351000200应用于数字通信系统,X1G005351001100,3225mm贴片晶振
常用的差分晶振输出均属于方波,输出功率比较大,驱动能力较强,但谐波分量非常多。这两种输出模式是差分晶振的输出逻辑,两者的相位刚好相反,因此它们能够组成更高性能的系统,同时还能消除共模噪声。差分输出(例如PECL,LVDS,HCSL) 可以满足高速数据传输,应用于高速计算机,数字通信系统,雷达,测量仪器,频率合成器等。
日本进口爱普生晶振SG3225VEN,是一款LVDS差分晶振,小体积晶振尺寸3.2x2.5mm六脚贴片晶振,电源电压2.5V,3.3V,宽频率范围25MHz至200MHz任意一频点具有低电源电压,满足产品低消耗电流特点,该产品具有超小型,轻薄型,低抖动,低功耗,低损耗,低耗能,低相位噪声,低电平等特点,能够轻易识别网络信号以及精确的处理双极信号。SG3225VEN贴片晶振被广泛应用于5G通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表,SAS,光纤通信,10G以太网及各种频率控制设备上。
LVDS差分晶振X1G005351000200应用于数字通信系统,X1G005351001100,3225mm贴片晶振
产品编码 | 型号 | 频率 | 石英晶振 | 输出波 | 电源电压 | 工作温度 |
X1G005521000100 | SG3225VEN | 212.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005521000200 | SG3225VEN | 312.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005521000500 | SG3225VEN | 322.265600MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005521000900 | SG3225VEN | 333.330000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005521001100 | SG3225VEN | 245.760000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005521100700 | SG3225VEN | 322.265625MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351000100 | SG3225VEN | 72.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351000200 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351000300 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351000700 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351000800 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351001100 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351001200 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351001900 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351002000 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351002100 | SG3225VEN | 148.351640MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351002200 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351002300 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351002400 | SG3225VEN | 74.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351002600 | SG3225VEN | 30.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351002700 | SG3225VEN | 36.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351002800 | SG3225VEN | 42.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351002900 | SG3225VEN | 48.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351003000 | SG3225VEN | 54.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351003100 | SG3225VEN | 60.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351003200 | SG3225VEN | 70.656000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351003300 | SG3225VEN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351003400 | SG3225VEN | 182.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351003600 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351003700 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351004100 | SG3225VEN | 135.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351004200 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351004400 | SG3225VEN | 25.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351004500 | SG3225VEN | 27.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351004600 | SG3225VEN | 160.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351004700 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351004800 | SG3225VEN | 156.253906MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351004900 | SG3225VEN | 48.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351005100 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351005200 | SG3225VEN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351005400 | SG3225VEN | 130.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351005500 | SG3225VEN | 70.656000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351005600 | SG3225VEN | 25.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351006100 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351006200 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
X1G005351006500 | SG3225VEN | 135.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351006900 | SG3225VEN | 161.132812MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351007100 | SG3225VEN | 60.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351007200 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351007300 | SG3225VEN | 148.351648MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351007600 | SG3225VEN | 26.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351007700 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351007800 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351007900 | SG3225VEN | 155.520000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
X1G005351100200 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351100400 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351100600 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351100700 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
X1G005351100800 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351100900 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351101000 | SG3225VEN | 25.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351101100 | SG3225VEN | 72.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351101200 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
X1G005351101300 | SG3225VEN | 133.333000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351101400 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351101500 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
X1G005351101600 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
X1G005351101800 | SG3225VEN | 156.242187MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351101900 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351102000 | SG3225VEN | 148.351648MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
X1G005351102100 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
