VFOV41418GEDHS5-12M低功耗的恒温晶振支持HCMOS输出,用于便携式仪器仪表
来源:http://taiheth.com 作者:kuss 2022年10月21
VFOV41418GEDHS5-12M低功耗的恒温晶振支持HCMOS输出,用于便携式仪器仪表,CTS提供完整的高性能烤箱控制石英晶体振荡器(ocxo)系列,可在广泛的频率和稳定性范围内使用,并符合工业标准包。我们还提供一个独特的超低功耗OCXO设计家族(120mW),甚至适用于电池供电的应用。CTS ocxo具有宽温度范围、高频率、最低功率和行业领先的相位噪声和稳定性,为我们的客户提供了性能优势。
CTS晶振公司抖动衰减器包括一个完全集成的时钟/锁相环定时解决方案,用于同步,时钟和数据恢复,以及网络元素的抖动衰减。型号有lvvpecl, LVDS,正弦或CMOS,具有多个可选输入和多达四个频率大于1.0GHz的输出。在OC-48带宽(RMS 12KHz至20MHz)上测量的抖动小于0.2ps。我们的抖动衰减器超过大多数通信规范的抖动要求,被许多物理层互连设备推荐。
CTS offers a complete line of high performance oven controlled crystal oscillators (OCXOs) that are available in a broad range of frequencies and stabilities and conform to industry standard packages. We also offer a unique family of ultra-low-power OCXO designs (120mW) suitable even for battery powered applications. With wide temperature ranges, high frequencies, the lowest power and the industry leading phase noise and stability, CTS OCXOs offer a performance advantage to our customers.
VFOV41418GEDHS5-12M低功耗的恒温晶振支持HCMOS输出,用于便携式仪器仪表,VFOV414是一种高稳定性、低功耗的OCXO有源晶振,编码VFOV41418GEDHS5-12M采用了内部加热谐振器(IHR)技术。整个烤箱控制系统和SC谐振器被安置在to -8真空外壳内,以减少OCXO的尺寸,功率消耗和热身时间。本产品的应用包括用于电信系统的锁相环参考,便携式仪器仪表/测试和测量,微波通信。特征:24MHz至300MHz的频率范围,快速热身,非常低的功耗,正弦波或HCMOS输出,抗振结构.
Manufacturer Part Number原厂代码 | Manufacturer品牌 | Series型号 | 石英晶振 | Frequency Stability频率稳定度 | Size / Dimension 尺寸 |
636L3C050M00000 | CTS-Frequency Controls | 636 | 50MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C050M00000 | CTS-Frequency Controls | 636 | 50MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C050M00000 | CTS-Frequency Controls | 636 | 50MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C027M00000 | CTS-Frequency Controls | 636 | 27MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C027M00000 | CTS-Frequency Controls | 636 | 27MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C027M00000 | CTS-Frequency Controls | 636 | 27MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C003M68640 | CTS-Frequency Controls | 636 | 3.6864MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C003M68640 | CTS-Frequency Controls | 636 | 3.6864MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C003M68640 | CTS-Frequency Controls | 636 | 3.6864MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C016M00000 | CTS-Frequency Controls | 636 | 16MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C016M00000 | CTS-Frequency Controls | 636 | 16MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C016M00000 | CTS-Frequency Controls | 636 | 16MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C008M00000 | CTS-Frequency Controls | 636 | 8MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C008M00000 | CTS-Frequency Controls | 636 | 8MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
636L3C008M00000 | CTS-Frequency Controls | 636 | 8MHz | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
CTS Jitter Attenuators include a completely integrated clock/PLL timing solution for synchronization, clock and data recovery, and jitter attenuation in network elements. Models are available in LVPECL, LVDS, SINE, or CMOS with multiple selectable inputs and up to four outputs with frequencies greater than 1.0GHz. Jitter measured over the OC-48 bandwidth (RMS 12KHz to 20MHz) is less than 0.2ps. Our Jitter Attenuators exceed the jitter requirements of most communication specifications and are recommended by many physical layer interconnect devices.

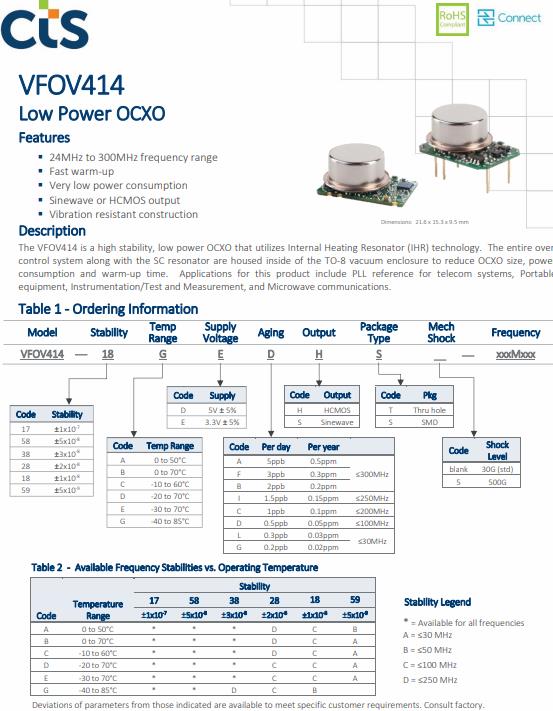

The VFOV414 is a high stability, low power OCXO that utilizes Internal Heating Resonator (IHR) technology. The entire oven control system along with the SC resonator are housed inside of the TO-8 vacuum enclosure to reduce OCXO size, power consumption and warm-up time. Applications for this product include PLL reference for telecom systems, Portable equipment, Instrumentation/Test and Measurement, and Microwave communications.
