Crystek最新的CVCO33BE-2352-2408振荡器领先全球
来源:http://www.taiheth.com 作者:泰河盛电子 2023年09月28
Crystek公司成立于1958年,是射频微波和频率控制行业的高性能技术世界领导者。Crystek晶振公司广泛的产品包括各种终端市场,包括无线,微波无线电,电信,工业,企业,航空航天和政府部门。

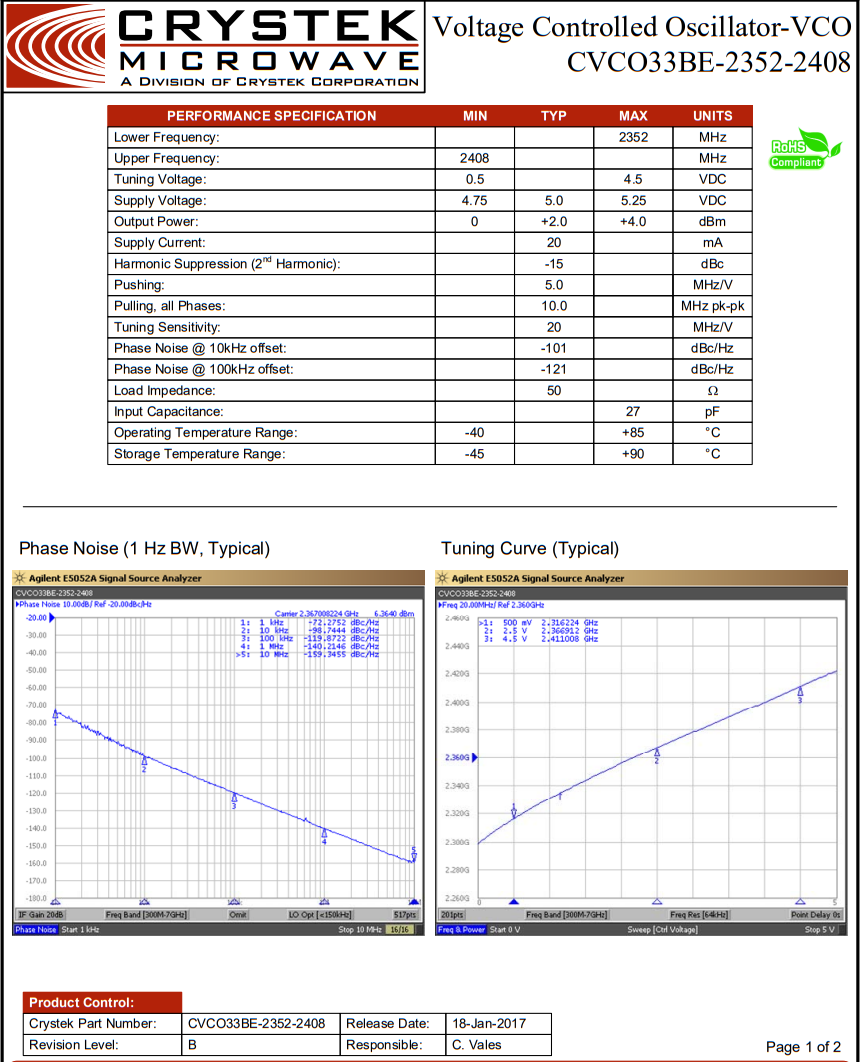

佛罗里达州迈尔斯堡—2023年2月8日—Crystek公司的CVCO33BE-2352-2408 VCO(电压控制振荡器)工作频率为2352-2408 MHz,控制电压范围为0.5 - 4.5 V。该VCO具有典型的相位噪声-101 dBc/Hz @ 10 kHz偏移,具有出色的线性度。输出功率一般为+2.0 dBm。CVCO33BE-2352-2408贴片晶振在美国设计和制造,采用行业标准0.3 x 0.3英寸SMD封装。输入电压为5 V,典型电流消耗为20 mA。拉力和推力分别最小化到10.0 MHz pk-pk和5.0 MHz/V。二次谐波抑制是典型的-15 dBc。CVCO33BE-2352-2408是数字无线电设备、固定无线接入、卫星通信系统和基站等应用的理想选择。
Fort Myers, FL - February 8, 2023 - Crystek's CVCO33BE-2352-2408 VCO (Voltage Controlled Oscillator) operates from 2352 to 2408 MHz with a control voltage range of 0.5 to 4.5 V. This VCO features typical phase noise of -101 dBc/Hz @ 10 kHz offset with excellent linearity. Output power is typically +2.0 dBm.Engineered and manufactured in the USA, the model CVCO33BE-2352-2408 is packaged in the industry-standard 0.3 x 0.3 inch SMD package. Input voltage is 5 V, with a typical current consumption of 20 mA. Pulling and Pushing are minimized to 10.0 MHz pk-pk and 5.0 MHz/V, respectively. Second harmonic suppression is -15 dBc typical.The CVCO33BE-2352-2408 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
Crystek原厂编码 | 生产商品牌 | 型号 | 类型 | 频率 | 输出 | 电源电压 |
CCLD-033-50-100.000 | Crystek | CCLD | XO | 100 MHz | LVDS | 3.3V |
CCLD-033-50-125.000 | Crystek | CCLD | XO | 125 MHz | LVDS | 3.3V |
CCLD-033-50-156.250 | Crystek | CCLD | XO | 156.25 MHz | LVDS | 3.3V |
CVHD-037X-80 | Crystek | CVHD-037X | VCXO | 80 MHz | CMOS | 3.3V |
CVHD-950X-122.880 | Crystek | CVHD-950 | VCXO | 122.88 MHz | CMOS | 3.3V |
CVHD-950-122.880 | Crystek | CVHD-950 | VCXO | 122.88 MHz | CMOS | 3.3V |
CVHD-037X-100 | Crystek | CVHD-037X | VCXO | 100 MHz | CMOS | 3.3V |
CVHD-950-100.000 | Crystek | CVHD-950 | VCXO | 100 MHz | CMOS | 3.3V |
CCHD-957-25-22.5792 | Crystek | CCHD-957 | XO | 22.5792 MHz | HCMOS | 3.3V |
CCHD-957-25-24.576 | Crystek | CCHD-957 | XO | 24.576 MHz | HCMOS | 3.3V |
CCHD-957-25-49.152 | Crystek | CCHD-957 | XO | 49.152 MHz | HCMOS | 3.3V |
CCHD-957-25-45.1584 | Crystek | CCHD-957 | XO | 45.1584 MHz | HCMOS | 3.3V |
CVSS-945-100.000 | Crystek | CVSS-945 | VCXO | 100 MHz | Sine Wave | 5V |
CVSS-945X-100.000 | Crystek | CVSS-945 | VCXO | 100 MHz | Sine Wave | 5V |
CVS575S-500.000 | Crystek | CVS575S | VCSO (SAW) | 500 MHz | Sine Wave | 3.3V |
CVCSO-914-1000 | Crystek | CVCSO | VCSO (SAW) | 1 GHz | Sine Wave | 5V |
CCHD-575-25-24.576 | Crystek | CCHD-575 | XO | 24.576 MHz | HCMOS | 3.3V |
CCPD-034-50-200.000 | Crystek | CCPD-034 | XO | 200 MHz | LVPECL | 3.3V |
CVHD-950-80.000 | Crystek | CVHD-950 | VCXO | 80 MHz | CMOS | 3.3V |
CVSS-945-125.000 | Crystek | CVSS-945 | VCXO | 125 MHz | Sine Wave | 5V |
CCSO-914X-250.000 | Crystek | CCSO | SO (SAW) | 250 MHz | Sine Wave | 5V |
C3391-4.096 | Crystek | C33 | XO | 4.096 MHz | HCMOS | 3.3V |
CCPD-033-50-156.250 | Crystek | CCPD-033 | XO | 156.25 MHz | LVPECL | 3.3V |
CCPD-033-50-161.1328 | Crystek | CCPD-033 | XO | 161.1328 MHz | LVPECL | 3.3V |
CCHD-575-25-22.5792 | Crystek | CCHD-575 | XO | 22.5792 MHz | HCMOS | 3.3V |
CVHD-037X-122.88 | Crystek | CVHD-037X | VCXO | 122.88 MHz | CMOS | 3.3V |
CVPD-037X-153.6 | Crystek | CVPD-037X | VCXO | 153.6 MHz | LVPECL | 3.3V |
CVHD-950-125.000 | Crystek | CVHD-950 | VCXO | 125 MHz | CMOS | 3.3V |
CCSO-914X-1000.000 | Crystek | CCSO | SO (SAW) | 1 GHz | Sine Wave | 5V |
601188 | Crystek | - | XO | 49.152 MHz | HCMOS | 1.8V |
CCPD-033-50-100.000 | Crystek | CCPD-033 | XO | 100 MHz | LVPECL | 3.3V |
CCPD-033-50-106.250 | Crystek | CCPD-033 | XO | 106.25 MHz | LVPECL | 3.3V |
CCPD-033-50-77.760 | Crystek | CCPD-033 | XO | 77.76 MHz | LVPECL | 3.3V |
601252 | Crystek | - | - | 98.304 MHz | - | 1.8V |
CVHD-950-50.000 | Crystek | CVHD-950 | VCXO | 50 MHz | CMOS | 3.3V |
CCPD-575X-20-100.000 | Crystek | CCPD-575 | XO | 100 MHz | LVPECL | 3.3V |
CCHD-575-50-80.000 | Crystek | CCHD-575 | XO | 80 MHz | HCMOS | 3.3V |
CCHD-950-50-100.000 | Crystek | CCHD-950 | XO | 100 MHz | HCMOS | 3.3V |
CVSS-945-122.880 | Crystek | CVSS-945 | VCXO | 122.88 MHz | Sine Wave | 5V |
CCSO-914X3-1000 | Crystek | CCSO | SO (SAW) | 1 GHz | Sine Wave | 3.3V |
CXOH20-BP-10.000 | Crystek | CXOH20 | TCXO | 10 MHz | HCMOS | 5V |
CCHD-575-50-125.000 | Crystek | CCHD-575 | XO | 125 MHz | HCMOS | 3.3V |
CVSS-945-80.000 | Crystek | CVSS-945 | VCXO | 80 MHz | Sine Wave | 5V |
CCPD-575X-20-125.000 | Crystek | CCPD-575 | XO | 125 MHz | LVPECL | 3.3V |
RFPRO33-1000.000 | Crystek | RFPRO | SO (SAW) | 1 GHz | Sine Wave | 3.3V |
CPROBS5-0100 | Crystek | PRO | XO | 100 MHz | Sine Wave | 5V |
CCHD-950-50-49.152 | Crystek | CCHD-950 | XO | 49.152 MHz | HCMOS | 3.3V |
CCHD-950-50-80.000 | Crystek | CCHD-950 | XO | 80 MHz | HCMOS | 3.3V |
CE3391-19.440 | Crystek | C33 | XO | 19.44 MHz | HCMOS | 3.3V |
C3291-2.048 | Crystek | C3291 | XO | 2.048 MHz | HCMOS, TTL | 5V |
601251 | Crystek | - | - | 98.304 MHz | - | 1.8V |
CVHD-950X-100 | Crystek | CVHD-950 | VCXO | 100 MHz | CMOS | 3.3V |
CCHD-575-50-100.000 | Crystek | CCHD-575 | XO | 100 MHz | HCMOS | 3.3V |
CVHD-037X-125 | Crystek | CVHD-037X | VCXO | 125 MHz | CMOS | 3.3V |
