领先全球的瑞萨电子发布XT晶振可用于400ZR模块解决光学方案
来源:http://taiheth.com 作者:泰河盛电子 2023年09月23
The XT is a quartz-based PLL oscillator with integrated TCXO with a key focus on stability. The XT family has frequency stability as tight as ±3ppm for -40 °C to +85 °C and life stability of ±13ppm. It is ideal for enterprise-level equipment that demands low noise, stable, and accurate timing/clock sources such as transceiver module or data center.
XT 是集成有 TCXO晶振是稳定性极佳的石英 PLL 振荡器。 XT 系列在 -40°C 至 +85°C 范围内的频率稳定性为 ±3ppm,寿命稳定性为 ±13ppm。 此系列特别适用于需要低噪声、稳定和精确时钟源的工业级设备(比如收发器模块或数据中心)。
Short lead-time, low noise, wide frequency range, excellent ambient performance, and very little engineering effort to incorporate this into your design make the XT series an excellent choice over the conventional technologies. The XT family provides extremely quick delivery for both standard and custom frequencies.
交付周期短、噪声低、频率范围宽、环境性能优异,只需要极少的工程工作量,即可将其融入到您的设计中,这使得 XT 系列成为超越传统技术的最佳选择。 无论是标准频率还是自定义频率,XT 系列均可实现快速交付。
400ZR defines a footprint-optimized solution for transporting 400Gb Ethernet over DCI links targeting a minimum of 80km. 400ZR proposes a technology-driven solution for high-capacity data transport by MCU, PMIC, timing device, Trans-Impedance Amplifier (TIA), and driver.
System Benefits?:
Compact and low power solution with MCU, TIA and driver that realizes a compact and high-performance 400ZR module
Optimized power supply solution for this module also supports low power and a compact module
Low-power, high-performance and compact design with GX76474/GX36220 (linear driver chip/Trans-Impedance Amplifier)
400ZR 定义了经 DCI 链接传输 400Gb 以太网封装优化的解决方案,其最小目标值为 80km。 400ZR 为经 MCU、PMIC、时钟、跨阻放大器 (TIA) 和驱动器传输的高密度数据提供技术驱动解决方案。
系统优势:
搭载 MCU、TIA 和驱动器的紧凑低功耗解决方案实现了 400ZR 模块的紧凑性与高性能
适用于本模块的优化电源解决方案同样支持低功耗和紧凑模块
GX76474/GX36220(线性驱动芯片/跨阻放大器)设计紧凑、低功耗、高性能
Frequency range: 15MHz to 2100MHz
Output types: CML, HCSL, LVDS, LVPECL
Phase jitter (12kHz to 20MHz): 135fs typical (150fs max)
Supply voltage: 1.8V, 2.5V or 3.3V

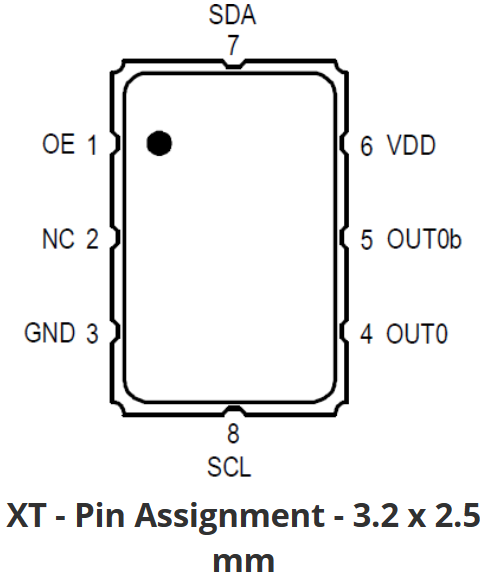

Package options:
3.2mm x 2.5mm x 0.85mm
Operating temperature and stability:
-40 °C to +85 °C, ±3ppm
Frequency stability for life:
-40 °C to +85 °C, ±13ppm
频率范围:15MHz 至 2100MHz
输出类型:CML、HCSL、LVDS、LVPECL
相位抖动(12kHz 至 20MHz):135fs 典型值
电源电压:1.8V、2.5V 或 3.3V
封装选项:
3.2mm x 2.5mm x 0.85mm
工作温度和稳定性:
-40 °C 至 +85 °C,±3ppm
寿命期内频率稳定性:
-40 °C 至 +85 °C,±13ppm晶振最新行情
原厂编码 | 生产商品牌 | 型号 | 频率 | 输出 | 电源电压 | 频率容差 |
XTP332156.250000I | Renesas晶振 | XT | 156.25 MHz | LVPECL | 3.3V | ±3ppm |
XTL312625.000000I | Renesas晶振 | XT | 625 MHz | LVDS | 1.8V | ±3ppm |
XTN312100.000000I | Renesas晶振 | XT | 100 MHz | HCSL | 1.8V | ±3ppm |
XTL322080.000000I | Renesas晶振 | XT | 80 MHz | LVDS | 2.5V | ±3ppm |
XTP322100.000000I | Renesas晶振 | XT | 100 MHz | LVPECL | 2.5V | ±3ppm |
XTP332100.000000I | Renesas晶振 | XT | 100 MHz | LVPECL | 3.3V | ±3ppm |
XTL312100.000000I | Renesas晶振 | XT | 100 MHz | LVDS | 1.8V | ±3ppm |
XTP332K48.479000I | Renesas晶振 | XT | 2.048479 GHz | LVPECL | 3.3V | ±3ppm |
XTP332087.000000I | Renesas晶振 | XT | 87 MHz | LVPECL | 3.3V | ±3ppm |
XTC312272.800000I | Renesas晶振 | XT | 272.8 MHz | CML | 1.8V | ±3ppm |
XTC332272.800000I | Renesas晶振 | XT | 272.8 MHz | CML | 3.3V | ±3ppm |
XTN322100.000000I | Renesas晶振 | XT | 100 MHz | HCSL | 2.5V | ±3ppm |
XTP332025.000000I | Renesas晶振 | XT | 25 MHz | LVPECL | 3.3V | ±3ppm |
XTL322100.000000I | Renesas晶振 | XT | 100 MHz | LVDS | 2.5V | ±3ppm |
XTL332125.000000I | Renesas晶振 | XT | 125 MHz | LVDS | 3.3V | ±3ppm |
XTN312032.000000I | Renesas晶振 | XT | 32 MHz | HCSL | 1.8V | ±3ppm |
XTP322025.000000I | Renesas晶振 | XT | 25 MHz | LVPECL | 2.5V | ±3ppm |
XTL312156.250000I | Renesas晶振 | XT | 156.25 MHz | LVDS | 1.8V | ±3ppm |
XTP332204.800000I | Renesas晶振 | XT | 204.8 MHz | LVPECL | 3.3V | ±3ppm |
XTL322200.000000I | Renesas晶振 | XT | 200 MHz | LVDS | 2.5V | ±3ppm |
XTL312125.000000I | Renesas晶振 | XT | 125 MHz | LVDS | 1.8V | ±3ppm |
XTP332039.145000I | Renesas晶振 | XT | 39.145 MHz | LVPECL | 3.3V | ±3ppm |
XTP332045.000000I | Renesas晶振 | XT | 45 MHz | LVPECL | 3.3V | ±3ppm |
XTL332148.351648I | Renesas晶振 | XT | 148.351648 MHz | LVDS | 3.3V | ±3ppm |
XTL312L00.000000I | Renesas晶振 | XT | 2.1 GHz | LVDS | 1.8V | ±3ppm |
XTL312A00.000000I | Renesas晶振 | XT | 1 GHz | LVDS | 1.8V | ±3ppm |
XTC332100.000000I | Renesas晶振 | XT | 100 MHz | CML | 3.3V | ±3ppm |
XTL312016.000000I | Renesas晶振 | XT | 16 MHz | LVDS | 1.8V | ±3ppm |
XTP332L00.000000I | Renesas晶振 | XT | 2.1 GHz | LVPECL | 3.3V | ±3ppm |
XTP332040.000000I | Renesas晶振 | XT | 40 MHz | LVPECL | 3.3V | ±3ppm |
XTP322K99.999999I | Renesas晶振 | XT | 2.099999999 GHz | LVPECL | 2.5V | ±3ppm |
XTN332100.000000I | Renesas晶振 | XT | 100 MHz | HCSL | 3.3V | ±3ppm |
XTL312779.215495I | Renesas晶振 | XT | 779.215495 MHz | LVDS | 1.8V | ±3ppm |
XTL312779.215000I | Renesas晶振 | XT | 779.215 MHz | LVDS | 1.8V | ±3ppm |
XTC312818.991000I | Renesas晶振 | XT | 818.991 MHz | CML | 1.8V | ±3ppm |
XTC312779.215000I | Renesas晶振 | XT | 779.215 MHz | CML | 1.8V | ±3ppm |
XTC312822.128000I | Renesas晶振 | XT | 822.128 MHz | CML | 1.8V | ±3ppm |
XTC312G81.518000I | Renesas晶振 | XT | 1.681518 GHz | CML | 1.8V | ±3ppm |
XTC312840.759000I | Renesas晶振 | XT | 840.759 MHz | CML | 1.8V | ±3ppm |
XTC312G37.982000I | Renesas晶振 | XT | 1.637982 GHz | CML | 1.8V | ±3ppm |
XTC312F88.430000I | Renesas晶振 | XT | 1.58843 GHz | CML | 1.8V | ±3ppm |
XTC312G44.256000I | Renesas晶振 | XT | 1.644256 GHz | CML | 1.8V | ±3ppm |
